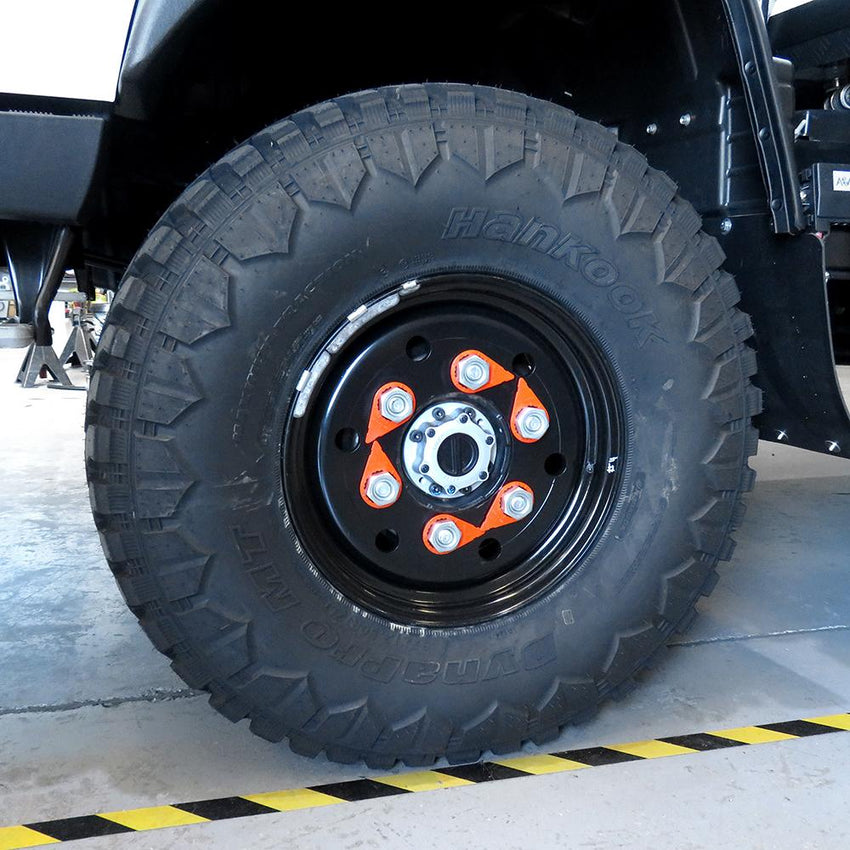

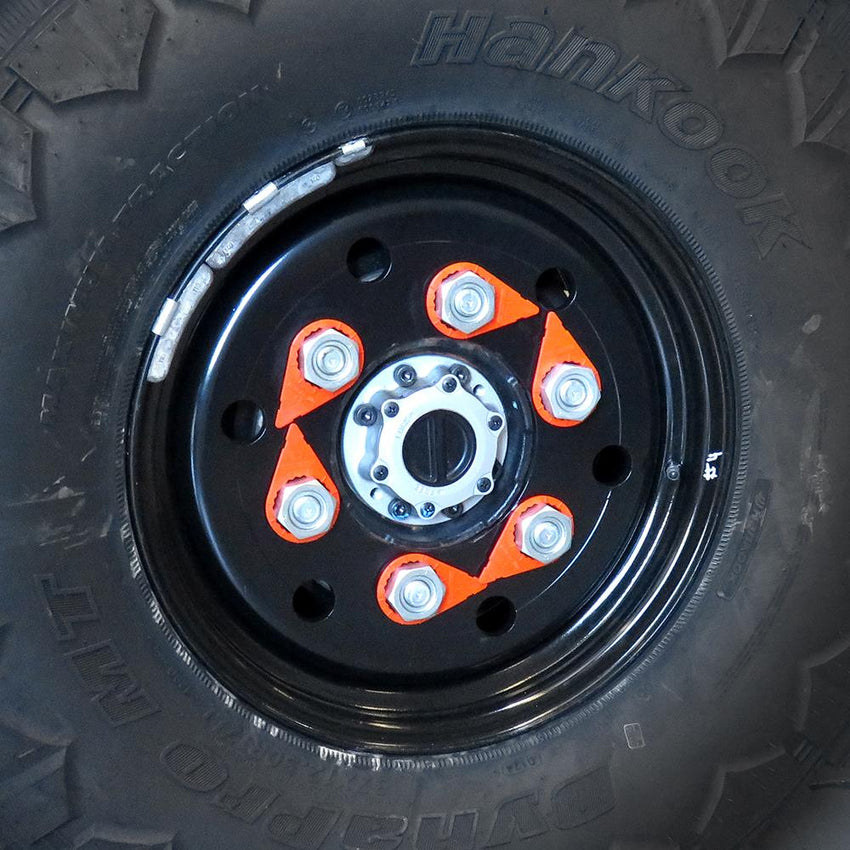

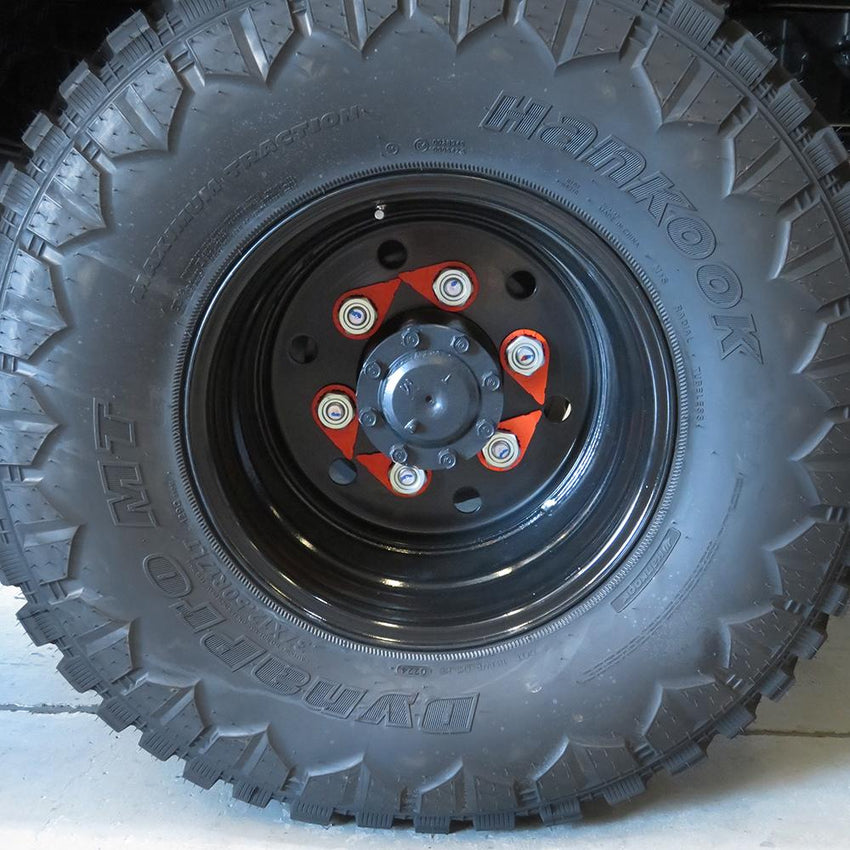

Super Single 6 Stud 17X9" Isuzu NPS 2009+ & Hino 817 Rim 517.080.010

The Super Single 17x9" Steel Rim is designed to suit 6-stud Fuso and pre-2009 Isuzu 4x4 truck platforms and is an ideal solution for converting from a factory dual rear wheel arrangement to a super single setup. Built tough for demanding Australian conditions, this rim is engineered for vehicles that need strength, durability and improved practicality both on and off the road.

By replacing the standard dual wheel configuration with a wider single rim, this setup can improve ground clearance, simplify tyre rotations and access, and provide a more practical wheel and tyre combination for vehicles working in remote, harsh or off-road environments.

Key Features

• Designed to suit 6-stud Fuso and pre-2009 Isuzu 4x4 applications
• Converts rear duals to a 17x9" super single configuration
• Improves tyre access, serviceability and off-road practicality
• Constructed from heavy-duty high-strength steel
• DOT stamped for road compliance

Performance Certified

• Tested in accordance with SAE J2530a
• Load rating: 2,300kg per rim
• Fatigue tested: 35,000 revolutions at 450 r/min
• Dynamic Cornering Fatigue tested to: 12,657Nm

Fitting Notes

Each rim requires the following components, sold separately:

• 1 x Valve Stem Rubber - High Pressure For 17" Rim
• 1 x Valve Stem Chrome 90 Degree For 17" Rim

These valve components are available separately at $6.00 each. Please let us know if you would like them supplied with your order.

Specifications

• Size: 17x9"
• Stud Pattern: 6-stud
• Material: Heavy-duty steel
• Part Number: 517072010

Designed for operators who need a stronger, simpler and more capable wheel setup, this 17x9" super single rim is a proven option for Fuso and Isuzu 4x4 builds requiring durability, load capacity and dependable performance in demanding conditions.
