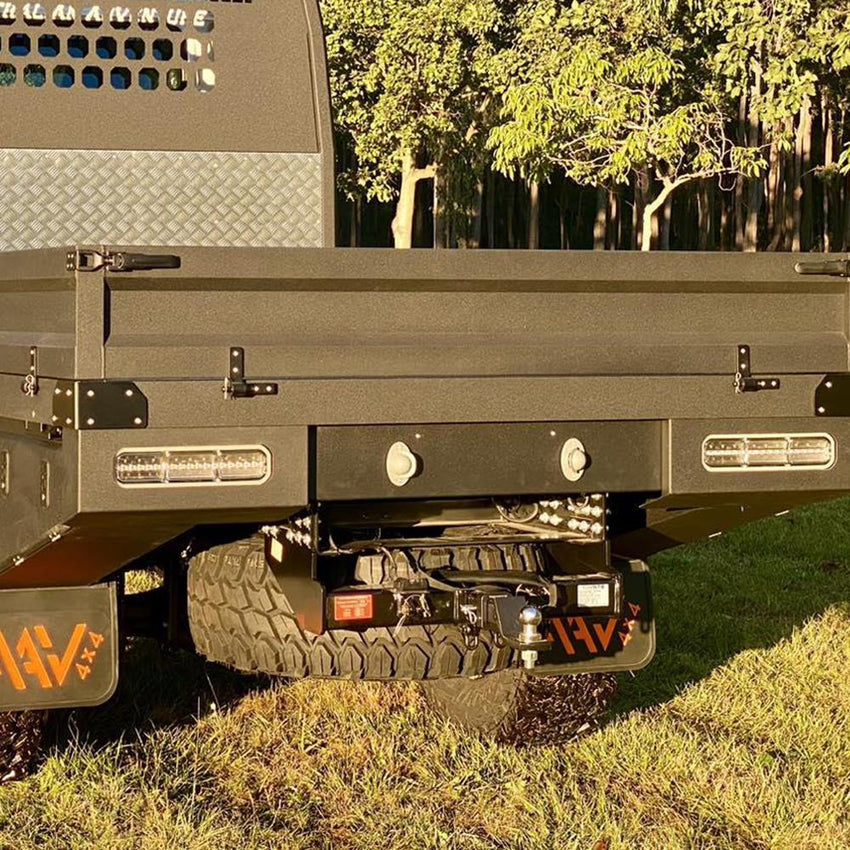

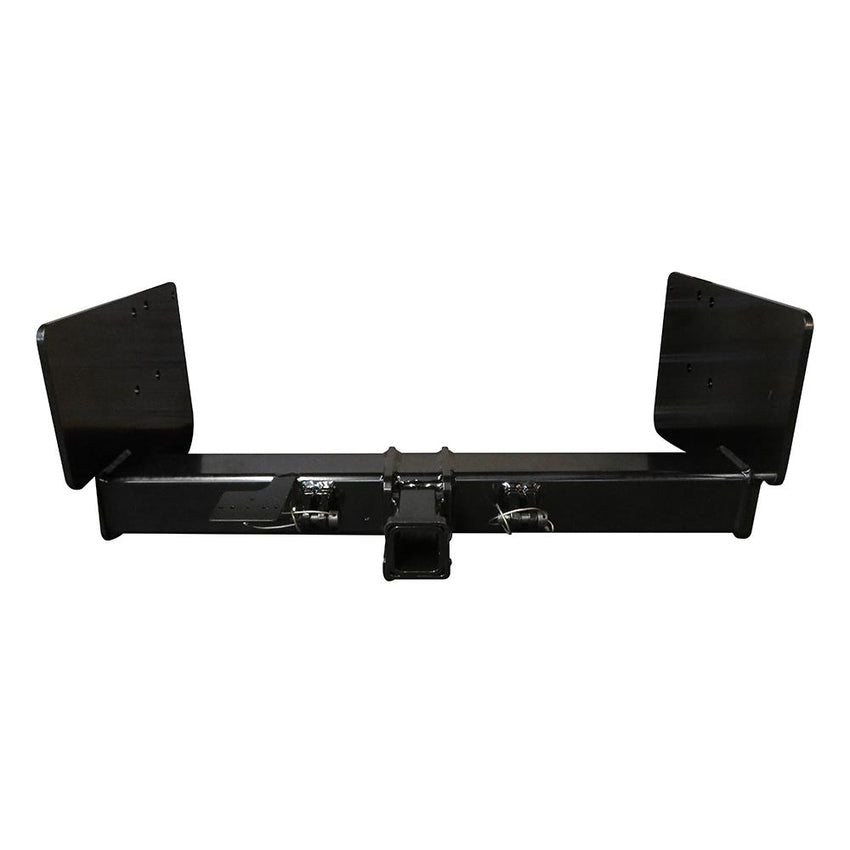

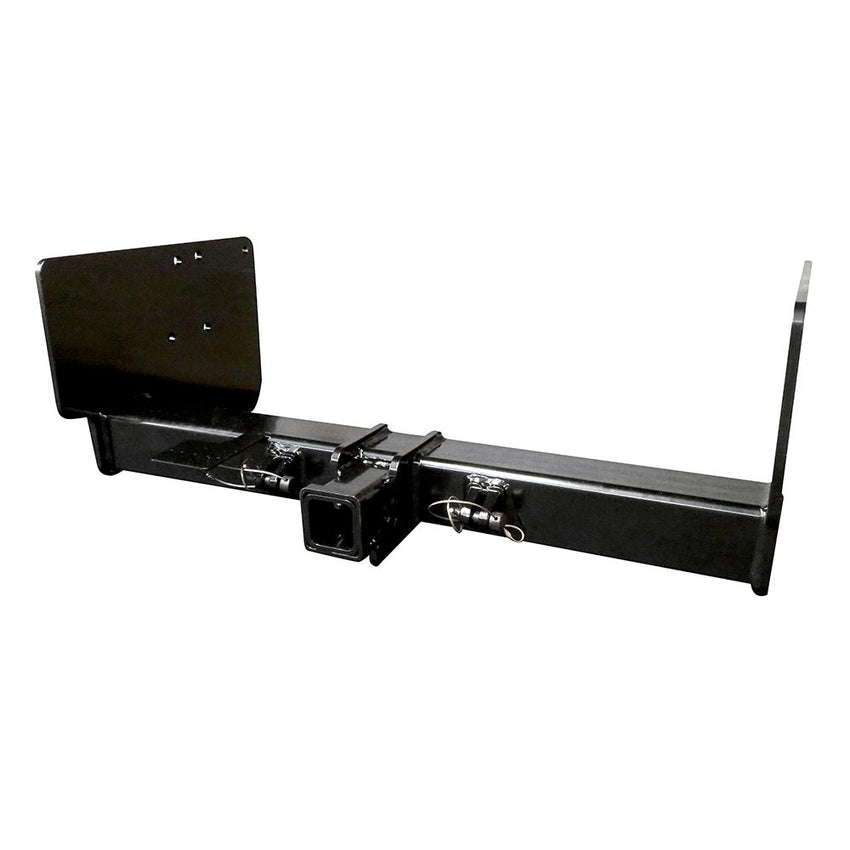

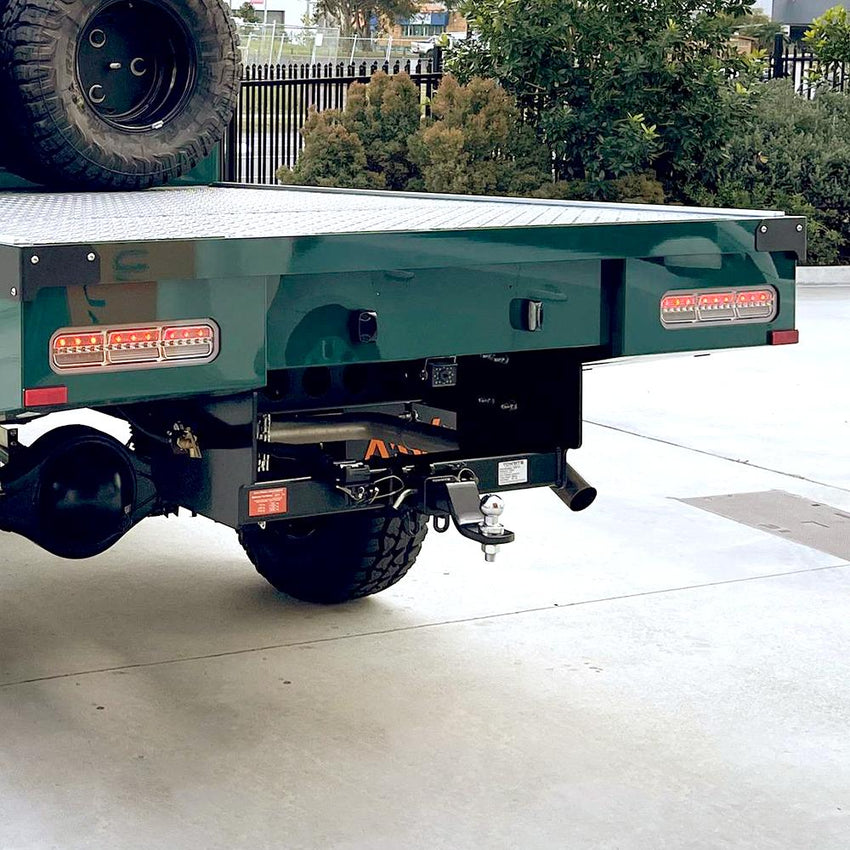

Kit Contains a 4500Kg rated Tow bar with 10mm bartletts , 50mm Tow Ball, Ball mount, and all Fitting Bolts, Nuts, Washers, 2 x Tow Bar Compliance Stickers. ( No electrics provided)
For a 4500Kg rating you need a 70mm Ball & Tongue - add product 206229
Under NHVR Vehicle Standards (VSG-16) and using a 50mm Ball, the towing capacity on a 3,500Kg tow bar is : GVM 5000 or under = 3500Kg; GVM 6000 = 3089Kg; GVM 6500 = 2972Kg; GVM 7000 = 2878Kg; GVM 7500 = 2801Kg; If fitted to a vehicle over 4495Kg then a Vehicle Compliance plate ( P1) is required. This product allows a 37" tyre to be mounted below the chassis - OEM tyre carrier to be moved forward 1 or 2 chassis holes. Pick List: Tow Bar; Bag of Bolts,Nuts, Washers & 2 Compliance Stickers, Tongue & 50mm Ball
