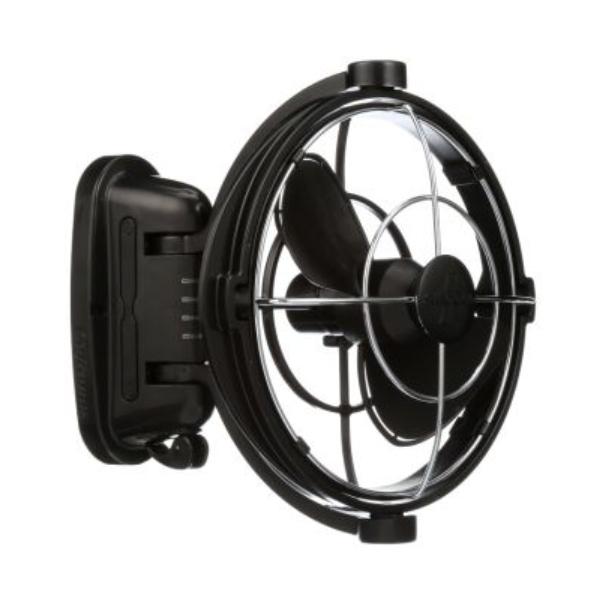

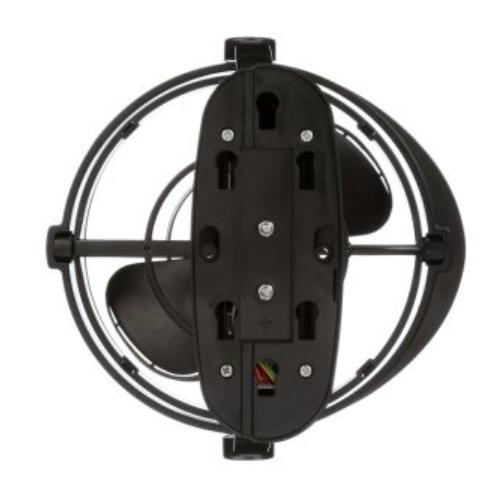

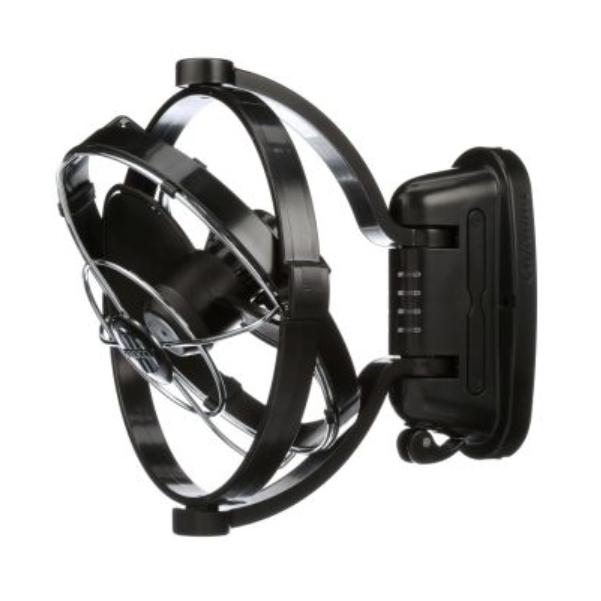

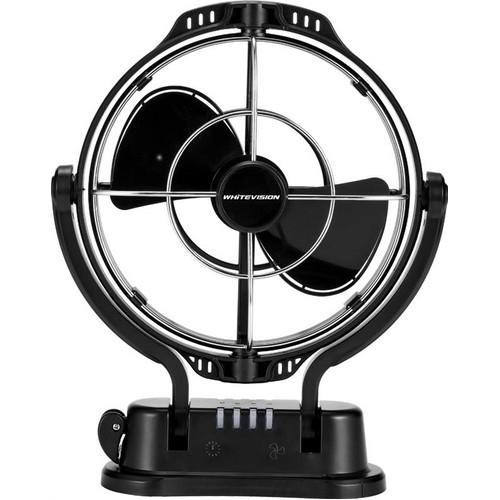

Add serious airflow comfort to your crew cab, camper, caravan or touring vehicle with this black 7" hard-wired fan. Supplied unfitted, this option is ideal for customers who want to install the fan themselves or have it fitted by their preferred auto electrician, camper builder or vehicle fit-out specialist.
The black finish gives the fan a neat, low-profile look in darker interiors, commercial fit-outs and modern 4WD cabins. With strong airflow, 360-degree adjustment, three speed settings and an integrated timer, it is one of the most practical comfort upgrades you can add to a touring vehicle, crew cab truck or camper setup.
The compact flat-folding design makes it well suited to campers, caravans, 4WD touring vehicles and commercial cabins where space is limited. It can be installed in a wide range of 12V or 24V applications, including suitable crew cab vehicles, boats, buses, tractors, machinery cabins and fixed hard-wired installations.
Key Features
- Black 7" hard-wired fan
- Unfitted / supply only option
- Suitable for 12V and 24V electrical systems
- Powerful airflow up to 185CFM
- Quiet operation at 54dB maximum
- Three speed settings: low, medium and high
- Integrated timer with 3, 6, 9 and 12 hour options
- 360-degree adjustable head for directional airflow control
- Compact flat-folding design when not in use
- Surface screw mount design for secure installation
- Durable ABS / LDPE housing
- Designed for hard-wired installation
Installation Notes
- Supplied as an unfitted fan only
- Installation is not included with this option
- Requires hard-wired connection to a suitable 12V or 24V electrical system
- Can be surface screw mounted in a suitable location
- Can be fitted to the B-pillar in compatible crew cab vehicles where suitable
- Professional installation by a qualified installer or auto electrician is recommended
Perfect For
- DIY camper and caravan builds
- 4WD touring and overland vehicle fit-outs
- Crew cab trucks requiring rear passenger airflow
- Fuso Canter and Isuzu NPS crew cab setups
- Fleet vehicles, mine-spec vehicles and trade trucks
- Boats, buses, tractors and machinery cabins
- Workshops, sheds, control rooms and fixed 12V/24V installations
Specifications
- Fan size: 7"
- Colour: Black
- Voltage: 12V / 24V
- Airflow on low speed: 145CFM
- Airflow on medium speed: 170CFM
- Airflow on high speed: 185CFM
- Current draw at 12V: 0.2A low, 0.25A medium, 0.3A high
- Current draw at 24V: 0.1A low, 0.14A medium, 0.16A high
- Noise level: 54dB maximum
- Timer settings: 3, 6, 9 or 12 hours
- Adjustment: 360-degree directional adjustment
- Mounting: Surface screw mount
- Housing material: ABS / LDPE
- Approximate dimensions shown by manufacturer: 241mm wide x 305mm high
- Side profile dimensions shown by manufacturer: 178mm high x 76.5mm deep
Important: This is the unfitted / supply only option. Installation, wiring, mounting hardware selection and fitment suitability are the responsibility of the installer. Professional installation is recommended.
