Rim Part No 517.072.010 DOT Stamped 2300Kg
The rims are tested consistent with SAE J2530a = Max Load rating of 2,300Kg and achieved 35,000 revolutions at 450 r/min with an applied Dynamic Cornering Fatigue force of 12,657Nm

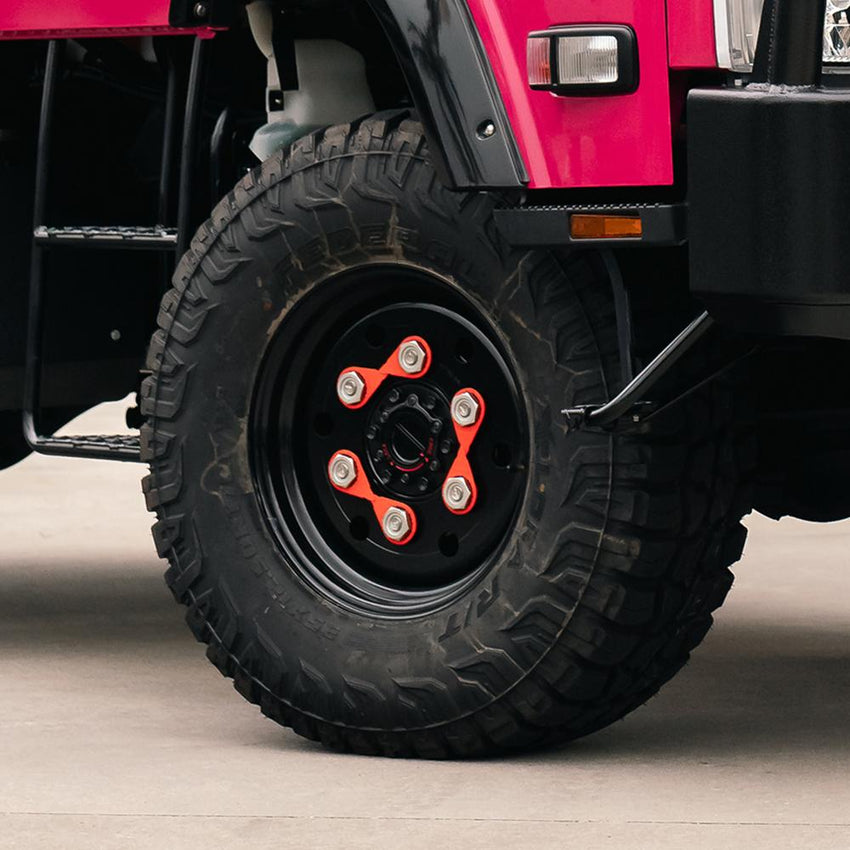

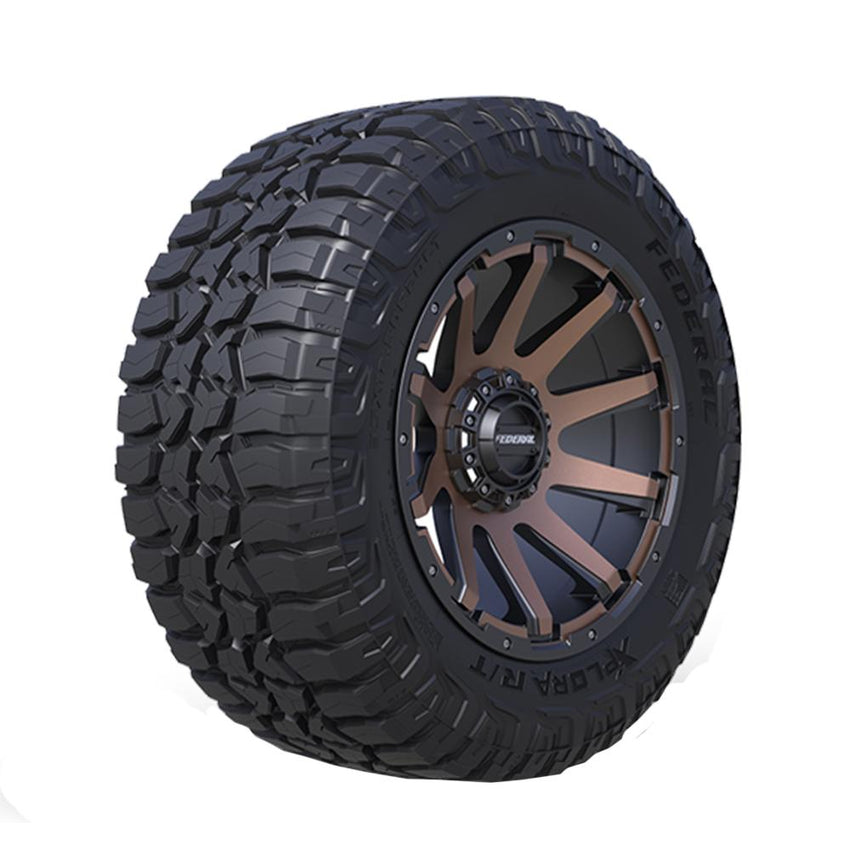

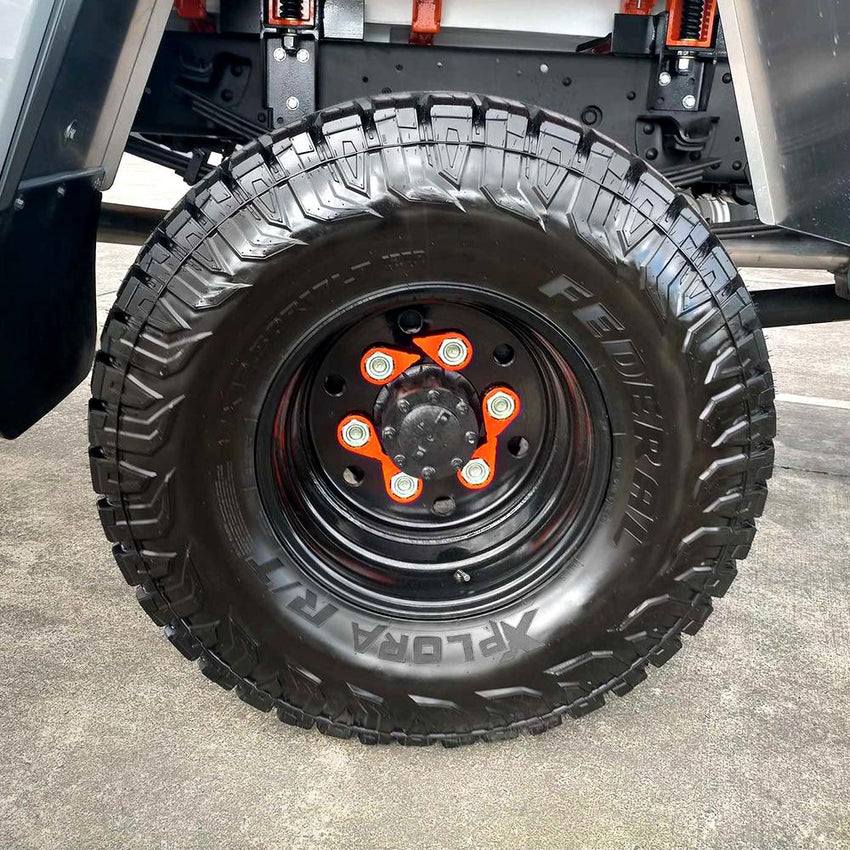

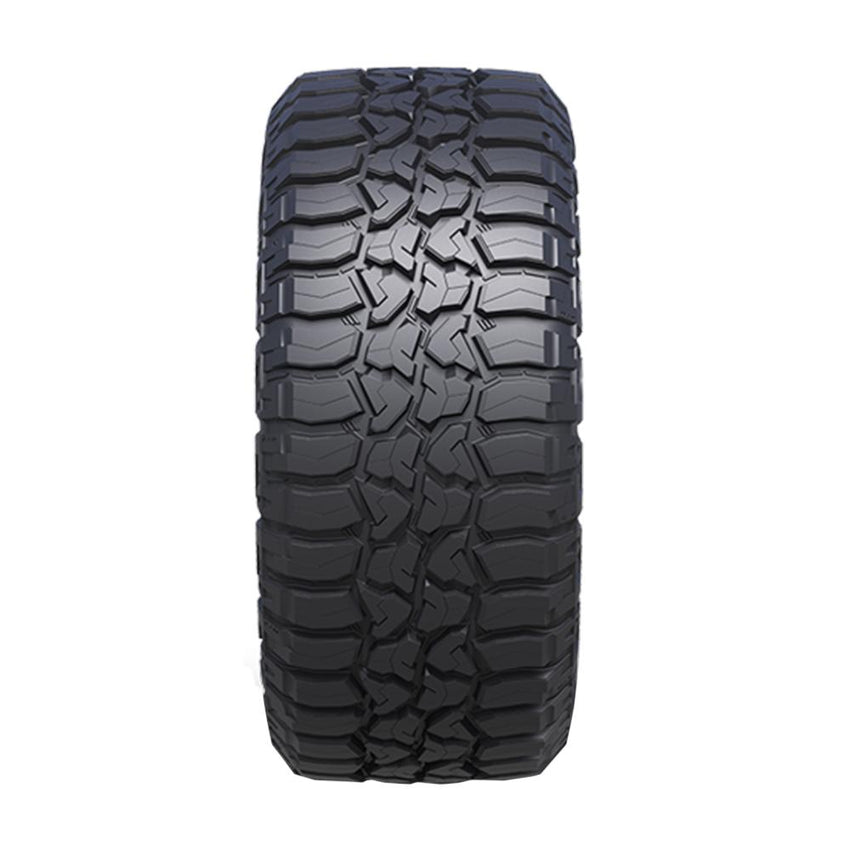

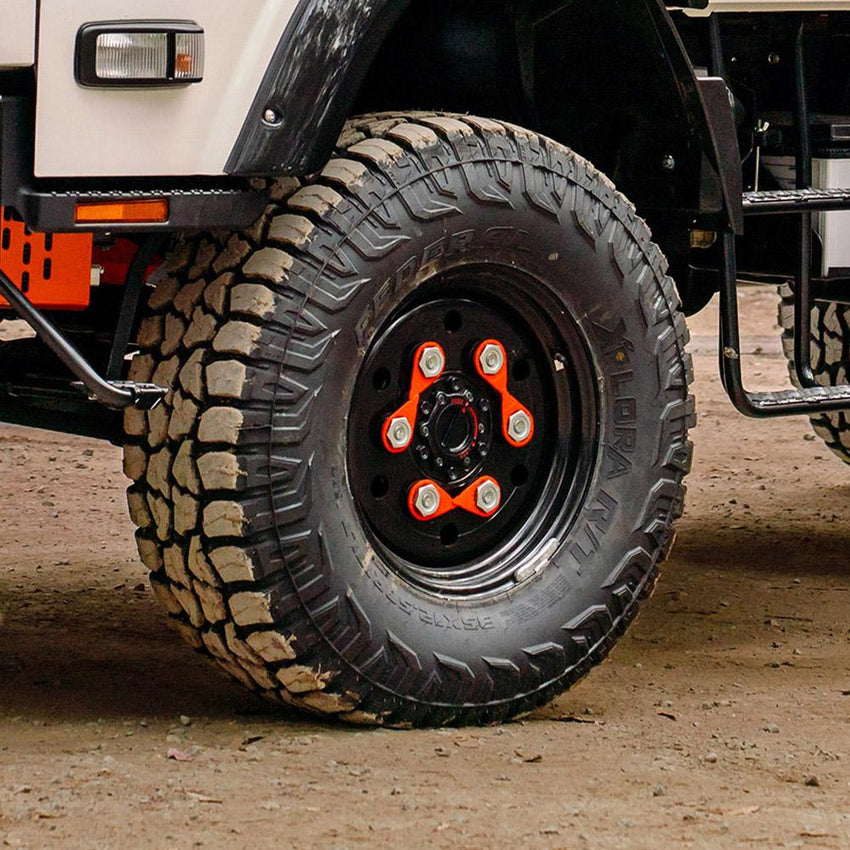

FITTED & BALANCED with Federal Xplora 37x12.5 R17 LT. 12 Ply 137Q Load Rating is 2300Kg. Manufacturers recommended inflation pressure is 80 PSI. Fits 6 stud Fuso Canter 4x4 FG84 and FGB71 (Max GVM 6500Kg & GCM 9000Kg vehicle dependant); All Isuzu NPS 4x4 up to 2009 including the last 2009 model No 8NW02-SBM (Max GVM 7000Kg & GCM 9500Kg - vehicle dependant) Some earlier NPS vehicles will require adjustment to the air conditioning condenser brackets. If you are fitting these wheels yourself it is your responsibility to check wheel arch clearance and on-road compliance. NOTE: IF YOU ARE TOWING LONG DISTANCES A CARAVAN etc OVER 2500KG THEN OUR RECOMMENDATION IS TO USE OUR XPLORA TYRE 35X12.5R17 137Q
