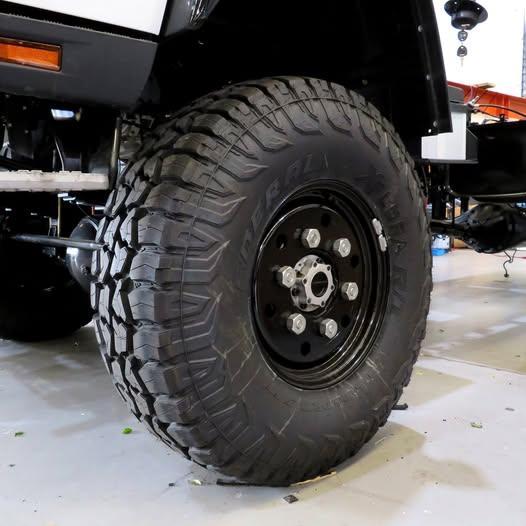

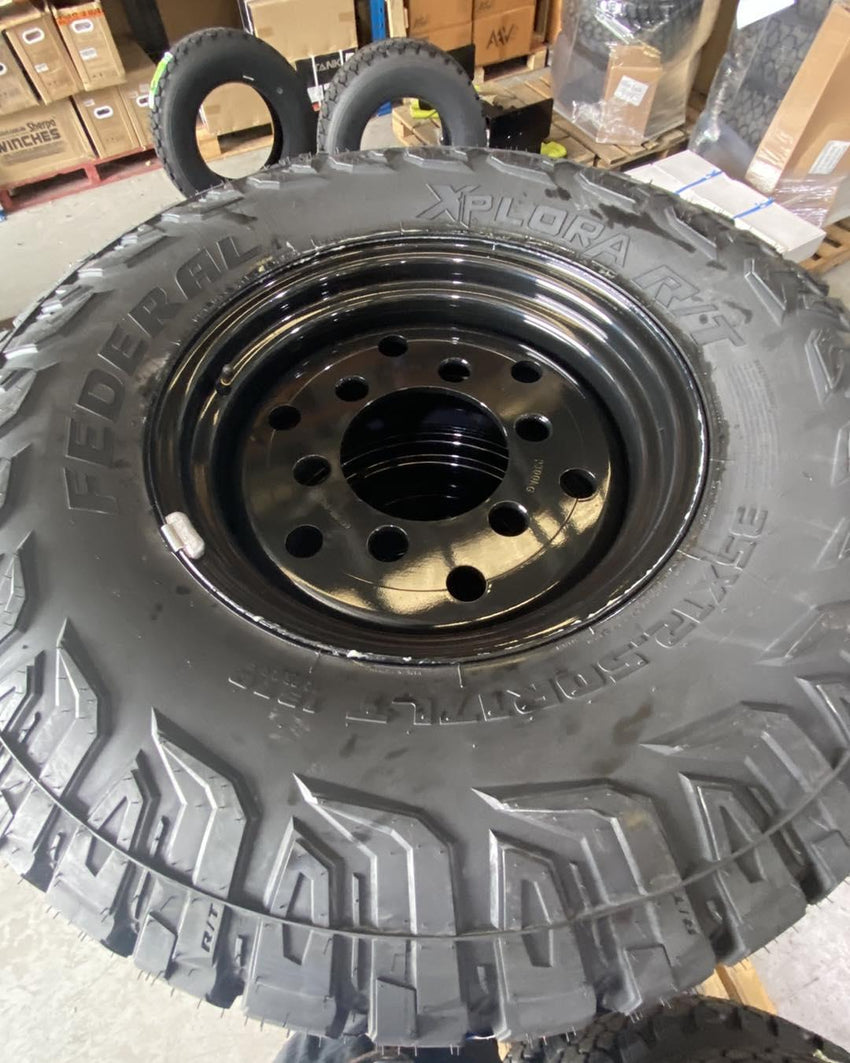

SSW 5 Stud (074) Fuso Wheel + Federal Xplora 37X12.5R17 137Q

    Fitted and balanced super single wheel and tyre package for 5-stud Fuso FG applications,     supplied with a 17x9" steel super single rim and Federal Xplora R/T tyre.

    This package is designed for Fuso owners upgrading from the factory dual rear wheel arrangement to a heavy-duty     super single setup. The wider single wheel configuration can improve tyre choice, simplify wheel and tyre management,     and provide a practical setup for touring, commercial, remote-area and off-road use.

Wheel & Tyre Package Includes


• 1 x 17x9" heavy-duty steel super single rim

• 1 x Federal Xplora R/T 37x13.5R17LT 137Q tyre

• Tyre fitted and balanced to rim


Vehicle Suitability


• Application: 5-stud Fuso FG models

• Suitable models: Fuso FG439, FG637 and FG649

• Use: Super single wheel conversion / replacement wheel and tyre package


Rim Specifications


• Rim part number: 517.074.010

• Size: 17x9"

• Stud pattern: 5-stud Fuso

• Construction: Heavy-duty steel

• DOT stamped: Yes

• Maximum rim load rating: 2,300kg

• Test standard: Tested consistent with SAE J2530a

• Fatigue test: 35,000 revolutions at 450 r/min

• Applied dynamic cornering fatigue force: 12,657Nm


Tyre Specifications


• Tyre: Federal Xplora R/T

• Size: 37x13.5R17LT

• Load / speed rating: 137Q

• Ply rating: 12 Ply

• Maximum tyre load rating: 2,300kg

• Manufacturer recommended inflation pressure: 80 PSI


Tyre Features


• Rugged rough-terrain tread design

• Designed to sit between an all-terrain and mud-terrain pattern

• Suitable for vehicles used across highway, gravel, dirt and tougher off-road terrain

• Open shoulder grooves to assist with clearing mud, water and loose debris

• Stone ejectors to help reduce stone retention

• Designed to balance off-road durability with more controlled on-road manners

• M+S and all-season marked tyre design


GVM & Compliance Notes


• Listed maximum GVM suitability: 7,000kg, vehicle dependent

• Final suitability depends on the vehicle, build, axle ratings, tyre placard requirements and applicable engineering approval

• If fitting these wheels yourself, it is your responsibility to check wheel arch clearance before road use

• It is also your responsibility to confirm on-road compliance for your specific vehicle and jurisdiction


    Important: Wheel and tyre upgrades can affect clearance, gearing, speedometer accuracy,     braking performance, axle loading and road compliance. Professional fitting and engineering advice is recommended before use.
