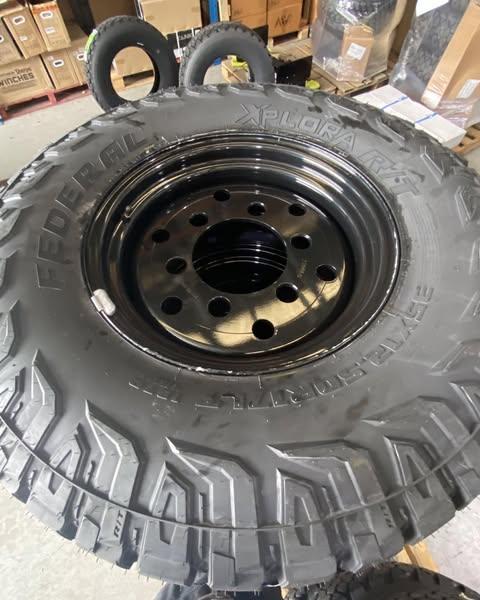

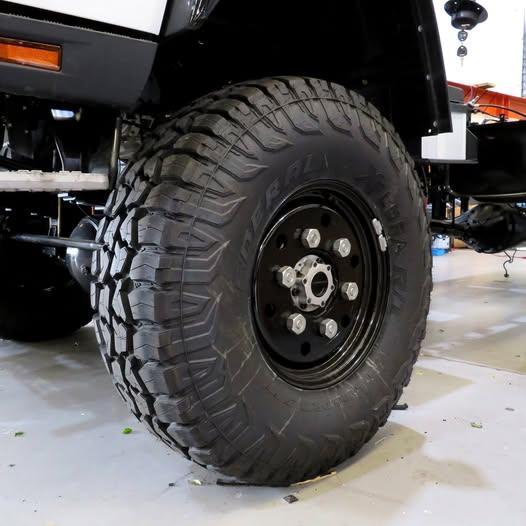

Fitted and balanced super single wheel and tyre package for selected 5-stud Fuso FG applications,
supplied with a 17x9" heavy-duty steel super single rim and Federal Xplora R/T 35x12.5R17LT tyre.
This package is built around rim part number 517.074.010, which is listed for 5-stud Fuso FG439, FG637 and FG649 models.
It is intended for vehicles being converted from the factory dual rear wheel arrangement to a super single setup.
Wheel & Tyre Package Includes
- 1 x 17x9" heavy-duty steel super single rim
- 1 x Federal Xplora R/T 35x12.5R17LT 137Q tyre
- Tyre fitted and balanced to rim
Vehicle Suitability
-
Application: Selected 5-stud Fuso FG models
-
Suitable models listed for rim 517.074.010: Fuso FG439, FG637 and FG649
-
Use: Super single wheel conversion / replacement wheel and tyre package
Rim Specifications
-
Rim part number: 517.074.010
-
Size: 17x9"
-
Stud pattern: 5-stud
-
Construction: Heavy-duty steel
-
DOT stamped: Yes
-
Maximum rim load rating: 2,300kg
-
Test standard: Tested consistent with SAE J2530a
-
Fatigue test: 35,000 revolutions at 450 r/min
-
Applied dynamic cornering fatigue force: 12,657Nm
Tyre Specifications
-
Tyre: Federal Xplora R/T
-
Size: 35x12.5R17LT
-
Load / speed rating: 137Q
-
Ply rating: 12 Ply
-
Maximum tyre load rating: 2,300kg
-
Manufacturer recommended inflation pressure: 80 PSI
Tyre Features
- Rugged rough-terrain tread design
- Designed to sit between an all-terrain and mud-terrain pattern
- Suitable for highway, gravel, dirt and tougher off-road terrain
- Open shoulder grooves to assist with clearing mud, water and loose debris
- Stone ejectors to help reduce stone retention
- Designed to balance off-road durability with more controlled on-road manners
- M+S and all-season marked tyre design
GVM & Compliance Notes
-
Listed maximum GVM suitability: 7,000kg, vehicle dependent
- Final suitability depends on the vehicle, build, axle ratings, tyre placard requirements and applicable engineering approval
- If fitting these wheels yourself, it is your responsibility to check wheel arch clearance before road use
- It is also your responsibility to confirm on-road compliance for your specific vehicle and jurisdiction
Important: Wheel and tyre upgrades can affect clearance, gearing, speedometer accuracy,
braking performance, axle loading and road compliance. Professional fitting and engineering advice is recommended before use.
