AAV4X4
SKU: 278965
Back Order - This item is currently out of stock and will be placed on back order if purchased
Order Item - This product may need to be assembled or ordered in depending on current stock. If components are available, it is usually ready within approximately 1-3 business days. We will contact you if there are any delays.
The Noxsolis NX852 52" Double-Row LED Light Bar – Professionally Fitted by AAV4x4 is a high-output combination-beam driving light designed to provide substantial long-range visibility together with broad illumination across the road and surrounding terrain.
Using high-performance OSRAM OSLON® LEDs, the NX852 produces 21,375 raw lumens with a clear 5700K white output. Its concentrated central beam reaches 1 lux at 915 metres, while the wider flood component improves visibility across road edges, tracks and nearby terrain.
This fitted package includes the 52-inch NX852 light bar, mounting brackets, installation hardware and professional fitting by AAV4x4 at our Brendale workshop. The light bar is securely mounted, electrically connected, aligned and tested before completion.
The NX852 uses a combination optical system to deliver both wide flood illumination and concentrated forward reach from a single light bar. The flood section spreads light across the area immediately ahead of the vehicle, while the spot section projects a strong central beam further along the road or track.
This balanced pattern provides useful illumination across a broad range of distances rather than concentrating the entire output into a narrow pencil beam. It is well suited to changing driving conditions where visibility directly ahead, along the road edges and further into the distance are all important.

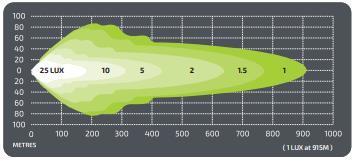

The NX852 reaches 1 lux at 915 metres, providing substantial forward visibility for identifying wildlife, obstacles, road changes and variations in terrain.
The long-range central beam is supported by wider illumination closer to the vehicle, creating a practical beam pattern for highway, rural-road, remote-area and off-road driving.
The double-row OSRAM OSLON® LED array produces 21,375 raw lumens. This output is directed through the light bar's combination optics to provide a strong balance of forward distance and peripheral spread.
The dual-row arrangement delivers substantial lighting performance from one integrated unit, making it suitable for vehicles requiring broad coverage and long-range illumination from a centrally mounted light bar.
The NX852 produces a 5700K white light, providing clear illumination of sealed roads, gravel surfaces, tracks, roadside vegetation and surrounding terrain.
The clean white output supports useful contrast and definition across a variety of night-time driving environments.
The two-row LED configuration provides the output required for wide flood coverage and long-range spot illumination within a single housing.

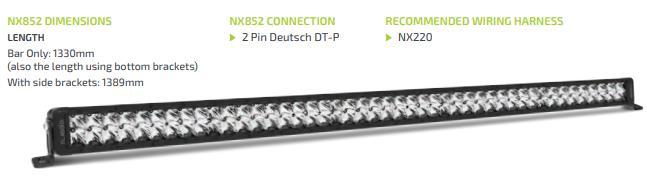

Its 52-inch width produces coverage across a substantial area in front of the vehicle and requires a suitable mounting position with adequate width, clearance and structural support.
The NX852 uses a durable die-cast aluminium housing designed for demanding road, touring and off-road environments. The rigid aluminium body protects the internal components while assisting with the dissipation of heat generated by the LED system.
An impact-resistant polycarbonate lens protects the LEDs and internal optics from road debris, branches, mud, dust and other hazards encountered during vehicle use.
The NX852 carries both IP67 and IP69K ingress-protection ratings.
These ratings make the light bar suitable for use in rain, mud, dust and demanding outdoor environments.
The NX852 operates on both 12V and 24V electrical systems, allowing it to be fitted to a broad range of four-wheel drives, utes, trucks and commercial vehicles.
The specified current draw is:
AAV4x4 installs the light bar using appropriately rated wiring, circuit protection and switching selected for the vehicle and its electrical system.
The NX852 uses a quad electrical circuit configuration as part of its internal design. This supports operation of the double-row LED array across the full width of the light bar.
The NX852 is approved to R10 electromagnetic compatibility requirements. This helps reduce unwanted electrical interference with compatible vehicle electronics, radios and communication equipment.
A 2-pin Deutsch DT-P connector provides the electrical connection to the light bar. This sealed automotive connector is designed for environments where resistance to moisture, dust, dirt and vibration is important.
The NX852 is supplied with both side-mounting and bottom-mounting brackets. AAV4x4 selects the mounting arrangement suited to the vehicle, available supporting structure and required light-bar position.
The two side brackets support the light bar from each end and allow its beam angle to be adjusted during installation.
Three bottom brackets are also supplied, providing support along the lower mounting channel where that installation method is better suited to the vehicle.
AAV4x4 professionally installs the NX852 at our Brendale workshop. The light bar is positioned on a suitable supporting structure, securely fastened, electrically connected and aligned for the intended driving application.
The installation process includes:
The final mounting and electrical arrangement depends on the individual vehicle, available installation space, supporting structure and existing electrical system.
Important: Professional fitting by AAV4x4 is included. Final mounting position and wiring configuration depend on the vehicle, available supporting structure, electrical capacity and installation clearance. Additional vehicle-specific mounting or electrical components may be required for some installations.
