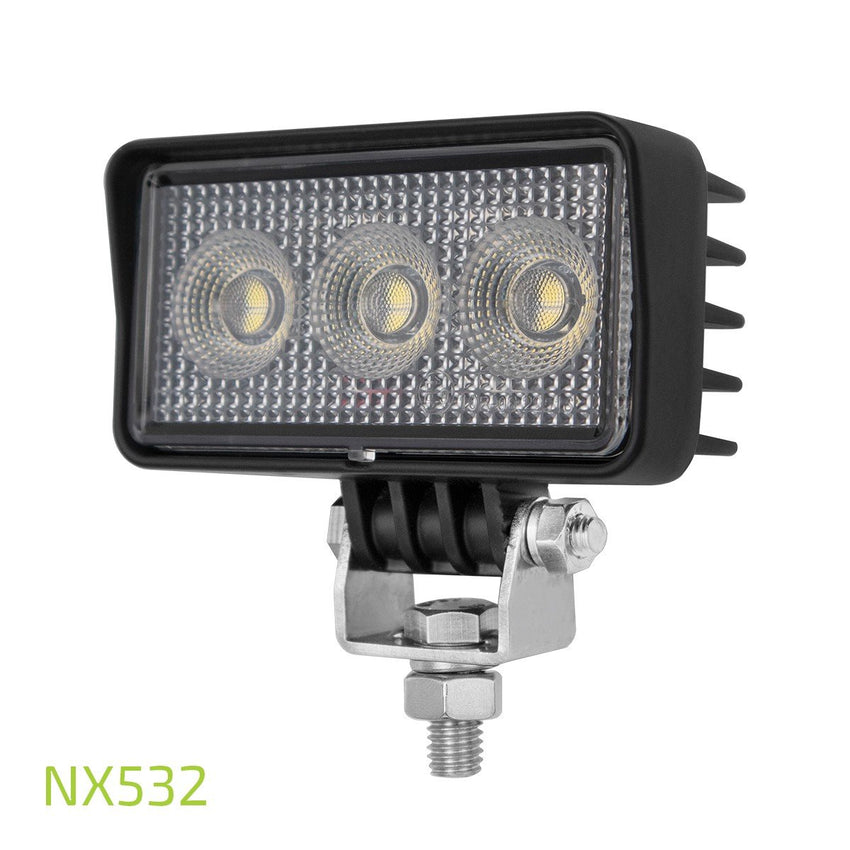

Noxsolis Led 12w Work light Rectangular Flood 3.5x2" NX532

Noxsolis NX532 12W LED Slim Work Light – 3.5 x 2" Rectangular Flood

The Noxsolis NX532 is a compact 12W LED work light with a rectangular 3.5 x 2-inch housing and a standard flood beam. It is designed to provide broad forward illumination for work areas, vehicle surroundings and other applications where a wide spread of light is required.

The NX532 produces 1,080 raw lumens and 900 effective lumens at a nominal colour temperature of 5700K. Its 12–24V DC operating range allows it to be used with compatible 12V and 24V vehicle electrical systems.

This product is supplied unfitted.

Key Features

• 12W rectangular LED work light
• Standard flood beam pattern
• 1,080 raw lumens
• 900 effective lumens
• 5700K nominal LED colour temperature
• 12–24V DC operation
• IP66 spray rating
• IP68 submersion rating
• CISPR 25 Class 3 and ECE Regulation 10 EMI certification
• Die-cast aluminium housing
• Clear polycarbonate outer lens
• Compact rectangular design

Flood Beam Performance

The NX532 uses a standard flood beam designed to spread light across a broad area rather than concentrating it into a narrow long-distance beam. This makes the light suitable for illuminating nearby work areas, machinery, vehicle surroundings and access areas.

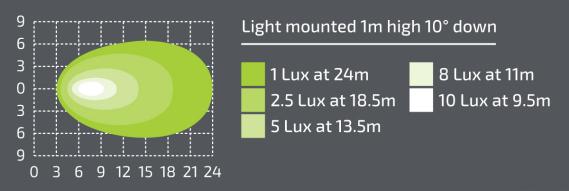

With the light mounted one metre high and aimed 10 degrees downward, the manufacturer lists the following beam performance:

• 1 lux at 24 metres
• 2.5 lux at 18.5 metres
• 5 lux at 13.5 metres
• 8 lux at 11 metres
• 10 lux at 9.5 metres

Lumen Output

The NX532 produces 1,080 raw lumens and 900 effective lumens. Raw lumens represent the calculated output of the LEDs, while effective lumens represent the measured light output after normal losses through the light assembly and lens.

Colour Temperature

The LED has a nominal colour temperature of 5700K, producing a white light suited to clearly illuminating work areas and surrounding objects.

Electrical System

The NX532 operates on 12–24V DC electrical systems, making it compatible with suitable 12V and 24V vehicles and equipment.

• Power consumption: 12W
• Current draw at 13.8V DC: 0.87A
• Current draw at 24V DC: 0.5A

Housing and Lens

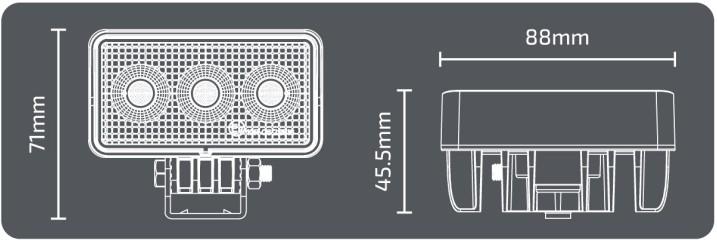

The work light has a black die-cast aluminium housing and a clear polycarbonate outer lens. Its rectangular housing measures 88mm wide, 71mm high and 45.5mm deep.

Ingress Protection

The NX532 is rated IP66 against water spray and IP68 for submersion. These ratings provide protection against water and dust intrusion when the light is correctly installed and used within its rated conditions.

EMI Certification

The NX532 is certified to CISPR 25 Class 3 and ECE Regulation 10 EMI requirements. These standards relate to electromagnetic compatibility and the control of electrical interference with vehicle systems and radio equipment.

Specifications

Included

• 1 x Noxsolis NX532 12W LED work light

Ideal Applications

• Vehicle work-area lighting
• Machinery and equipment lighting
• Utility and service vehicles
• Rear or side-facing vehicle illumination
• Compatible 12V and 24V electrical systems
• Applications requiring a compact flood work light

Important Note

This product is supplied unfitted. Installation position, electrical connection and any additional vehicle-specific components required will depend on the intended application.
