AAV4X4
SKU: DE936026
Back Order - This item is currently out of stock and will be placed on back order if purchased
Order Item - This product may need to be assembled or ordered in depending on current stock. If components are available, it is usually ready within approximately 1-3 business days. We will contact you if there are any delays.
This compact mini fuse box provides a centralised location for protecting multiple low-voltage electrical circuits in automotive, recreational vehicle and mobile equipment installations.
The sealed housing incorporates a removable protective cover, perimeter seal and internal positions for compatible mini blade fuses. It is suited to installations where multiple accessory circuits need to be organised and individually protected within one compact power-distribution module.
This product is supplied unfitted.
The fuse box allows multiple electrical circuits to be protected from one central location. Each connected circuit can be fitted with a fuse selected to suit the wiring and electrical load it protects.
This provides a cleaner alternative to installing separate in-line fuse holders throughout the vehicle and can make the protected circuits easier to organise, identify and service.
The internal fuse positions are designed for compatible mini blade-style automotive fuses. Fuse ratings must be selected individually according to the connected accessory, cable size and electrical-system requirements.
The fuse box itself does not determine the protection rating of each circuit. Protection is determined by the fuse installed in each occupied position.

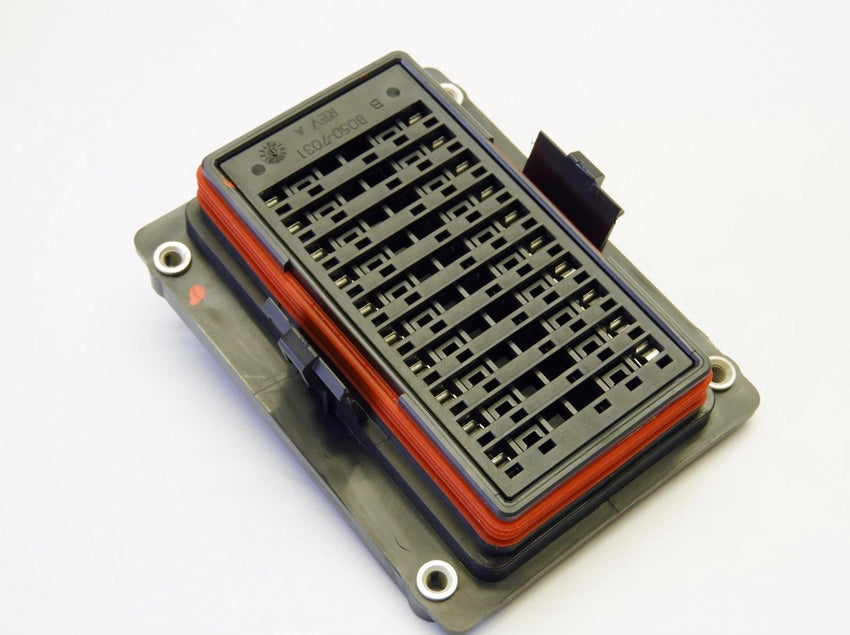

The fuse module uses a sealed housing with a visible perimeter seal between the fuse carrier and base. The manufacturer identifies the product as sealed, while the supplied product is specified with an IP65 protection rating.

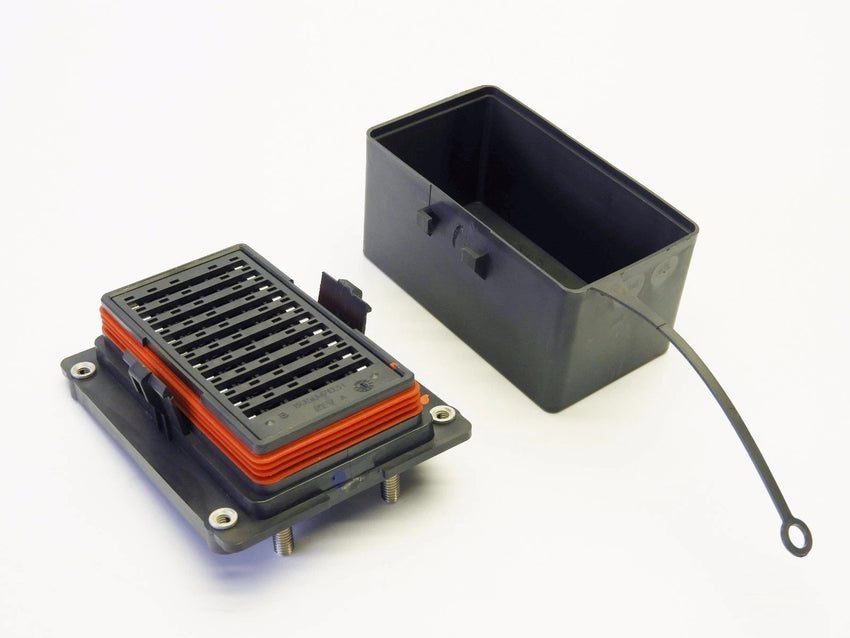

The removable outer cover shields the fuse positions after installation and should remain securely fitted during normal vehicle operation.
The manufacturer identifies copper terminal material, silicone rubber sealing material and flame-retardant housing materials. The housing assembly uses moulded electrical-grade components intended for automotive fuse-box applications.
The base incorporates four reinforced mounting positions for securing the module to a suitable installation surface.
The manufacturer specifies an operating temperature range of -55°C to 150°C for the fuse-box product range.
Final suitability still depends on the mounting location, connected wiring, installed fuses and exposure conditions within the completed vehicle installation.
| Product | Sealed Mini Fuse Box |
|---|---|
| Product type | Multi-circuit automotive fuse box |
| Fuse type | Compatible mini blade fuses |
| Enclosure protection | IP65 |
| Housing configuration | Sealed module with removable protective cover |
| Terminal material | Copper |
| Seal material | Silicone rubber |
| Flame-retardant material | Yes |
| Operating temperature | -55°C to 150°C |
| Mounting | Four mounting positions |
| Installation | Supplied unfitted |
This product is supplied unfitted. Fuse ratings, wiring, cable protection and circuit configuration must be selected according to the equipment being connected.
Fuses are not listed as included and must be selected separately for each circuit.
The combined electrical load must remain within the limits of the installed wiring, terminals, supply circuit and associated electrical components.
The IP65 rating applies when the fuse box is correctly assembled, sealed and installed with its protective cover securely fitted.
