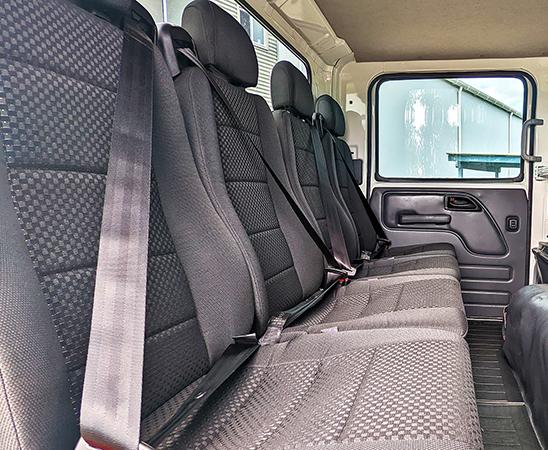

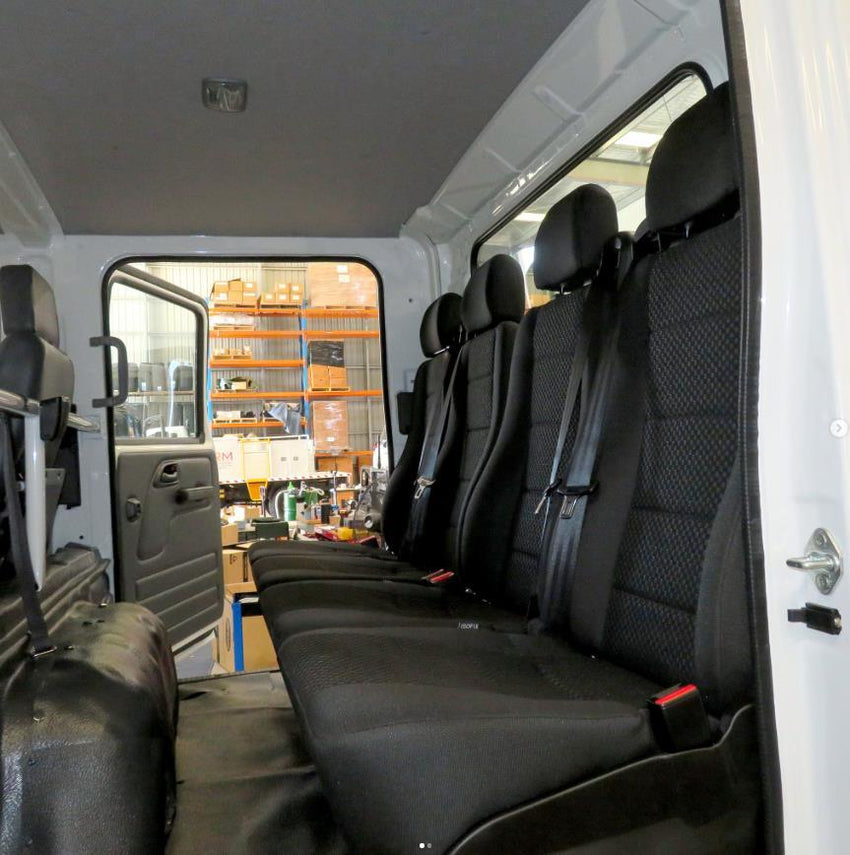

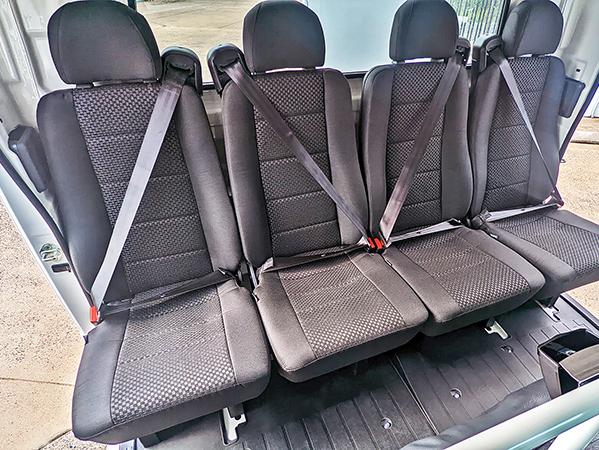

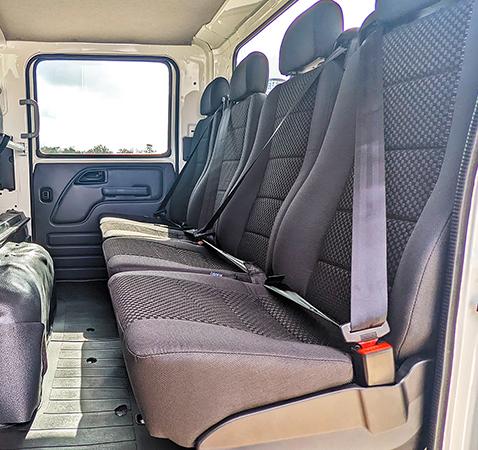

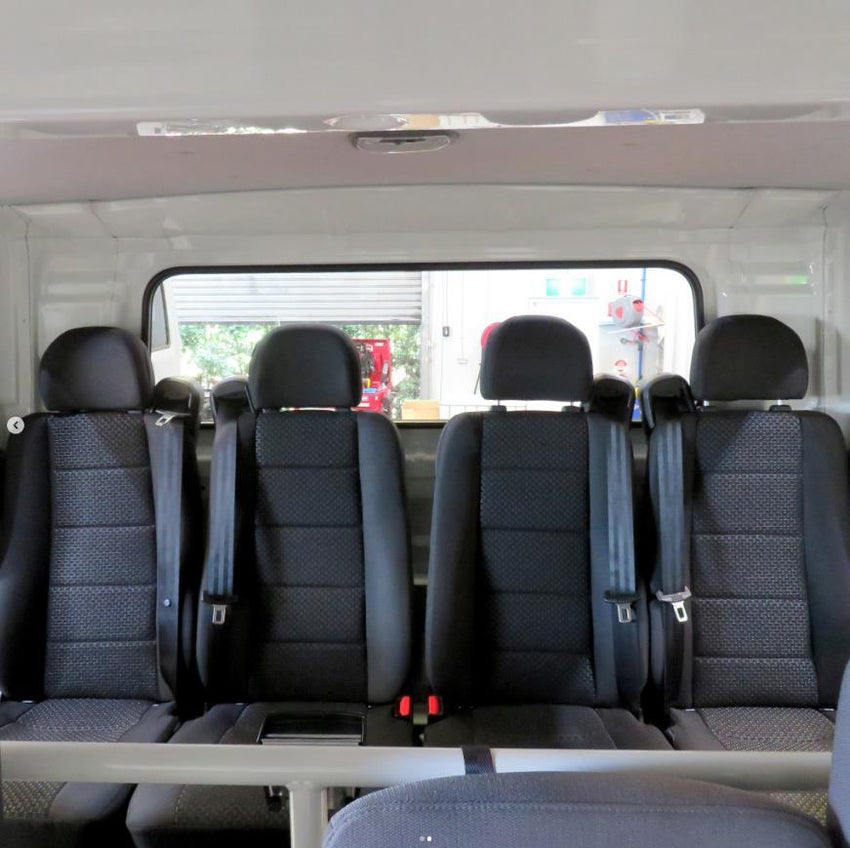

Isuzu Upgraded Four Seat Conversion For Rear, 3 Point Seat Belts Fitted

    Important fitment note: This rear seating conversion cannot be fitted to vehicles with rear air-conditioning installed.     Electrical, accessory or other fitted components may also interfere with installation and should be checked before ordering.

    This rear seating solution replaces the factory rear bench seat with a Techsafe Interline quad seat setup,     providing four rear seating positions with upgraded comfort, 3-point seat belts, child restraint provisions and headrests.


Vehicle Suitability


• Vehicle: Isuzu N-Series Crew Cab, including NPR, NPS and NQR models

• Seat type: Rear seating conversion

• Manufacturer part code: INTL-D-INS-RR-QUAD

• AAV SKU: 224237-4


Compliance Information

    This seating solution has been in-vehicle tested and complies with Australian Design Rules 3 and 5     under Test Report / VSB 14 LK2 Number 20220022R004Rev0 when correctly installed.

    Seats must be installed and certified by suitably trained, skilled and certified personnel before use.     Any modifications to the supplied seating solution must be checked with your certifying engineer to ensure compliance is maintained.

Features


• Replacement rear quad seat with upgraded comfort

• Four rear seating positions

• 3-point ELR seat belts

• Headrests

• Child restraint provisions

• ISOFIX child restraint anchorages

• Two ISOFIX anchorages fitted per double seat

• Only one ISOFIX anchorage is to be used per double seat at one time

• Vehicle-specific mounting legs and fitting kit

• OEM bottle jack and tool bag mounts are retained

• Head and leg space clearances remain the same as the Isuzu factory bench seat


Installation Notes


• Estimated manufacturer installation time: approximately 8 labour hours

• Installation and technical support may be available to body builders on request

• Full ADR and SSM homologation evidence may be available to body builders on request

• Professional certification is required before the seats are used


Fitment Limitations


• This solution cannot be installed if rear air-conditioning systems have been fitted

• Electrical, accessory or other fitted components may interfere with installation

• Any deviation from the supplied seating solution must be checked by a certifying engineer
