AAV4X4 Isuzu electrical upgrade package for converting from a 7-pin trailer connection to a 12-pin trailer socket, with 12V 50A Anderson-style auxiliary power connection and an additional 600Ah lithium battery setup.
This upgrade is designed for Isuzu NPS 4x4 truck builds that need more than a basic trailer plug connection. It is suited to touring, towing, caravan, camper, motorhome and expedition vehicle setups where additional 12V power capacity and trailer-side electrical connection options are required.
The package includes a 12-pin flat trailer socket, 50A Anderson-style connection hardware, a Victron 24V to 12V charger, fuse protection, a 3-position battery tray setup and 3 x 12V 200Ah lithium batteries, giving the vehicle a substantial auxiliary lithium power upgrade.
Product Details
- Product: Isuzu 7-pin to 12-pin trailer socket and 12V auxiliary power upgrade with lithium batteries
- SKU: 224502
- Vehicle fitment: Isuzu
- Upgrade type: Trailer socket, Anderson-style auxiliary power and lithium battery upgrade
- Trailer socket: 12-pin flat plastic trailer socket
- Auxiliary power connection: 12V 50A Anderson-style connection
- Battery setup: 3 x 12V 200Ah lithium batteries
- Total lithium capacity: 600Ah nominal battery capacity
- Charging component: Victron Orion-Tr 24/12 30A charger with Bluetooth
- Designed for: Touring, towing, camper, caravan and off-road vehicle electrical systems
Why Upgrade From 7-Pin To 12-Pin?
- Provides additional trailer connection capability compared with a basic 7-pin plug setup
- Better suited to caravans, campers and trailers that require extra electrical circuits
- Adds a 12V 50A Anderson-style auxiliary power connection for compatible setups
- Supports touring and off-grid builds that require more usable 12V power capacity
- Provides a dedicated lithium battery upgrade for higher-capacity auxiliary power needs
- Suitable for Isuzu builds carrying or towing electrical loads beyond a standard vehicle setup
Kit Components

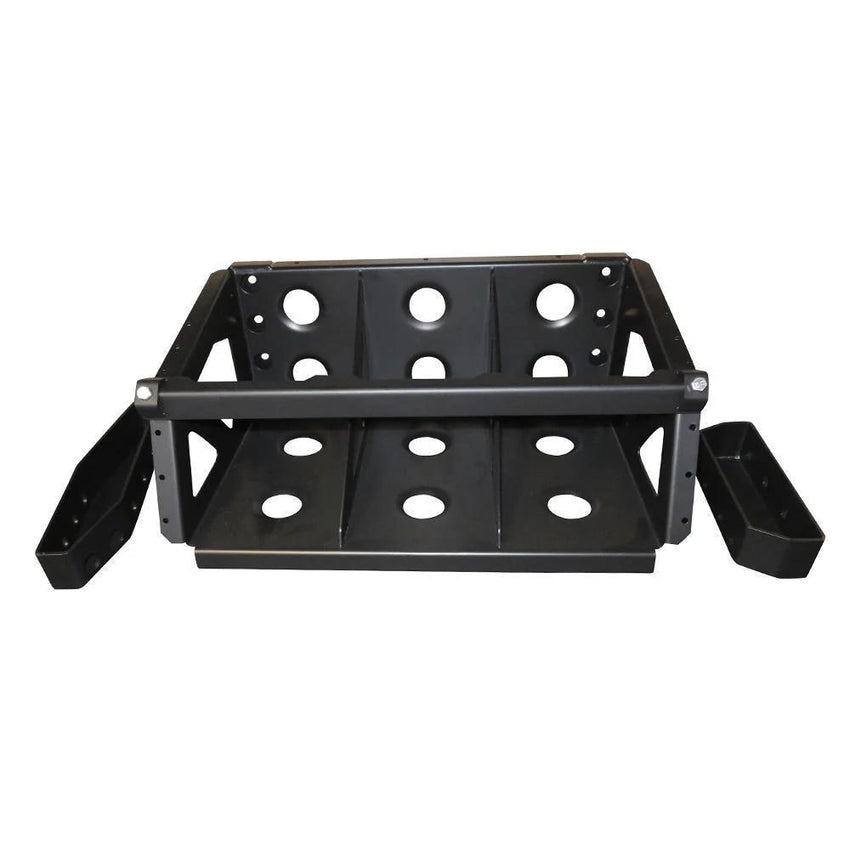

- 3 Position Battery Tray Base and Brackets, also suitable for 2 batteries - Qty 1
- 3 Position Battery Tray Isuzu Brackets - Qty 1

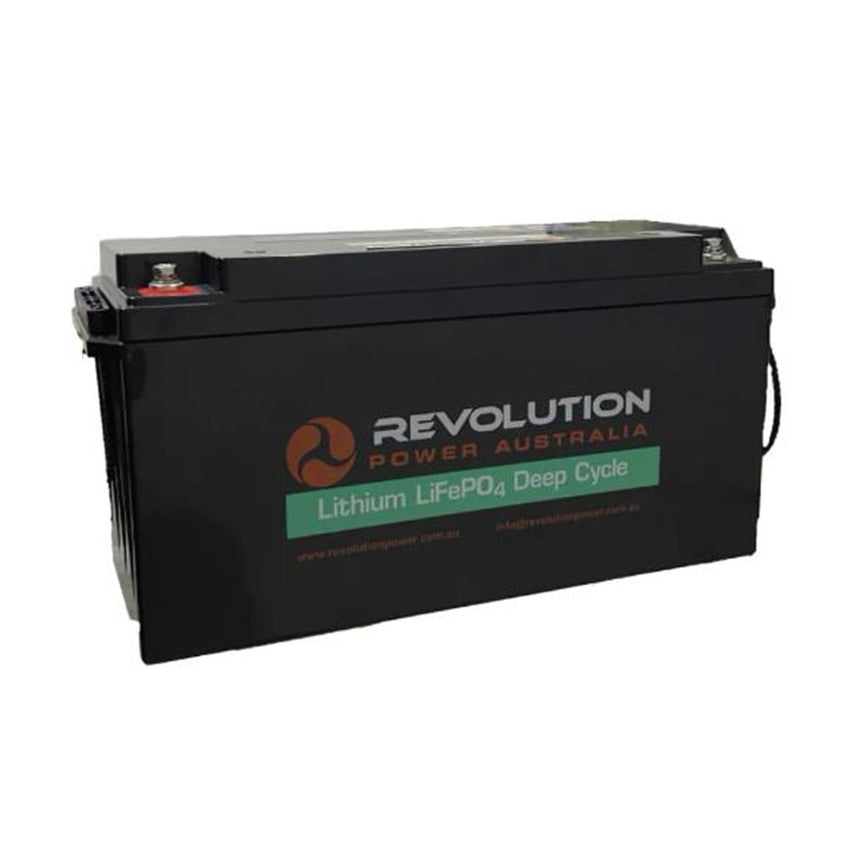

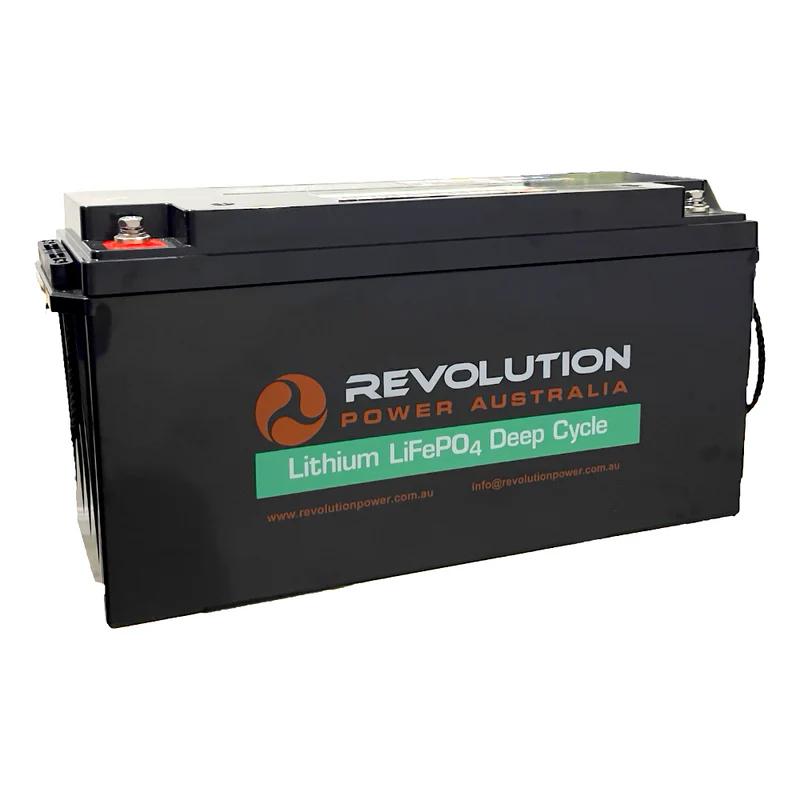

- Revolution Lithium 12V 200Ah Battery - Qty 3

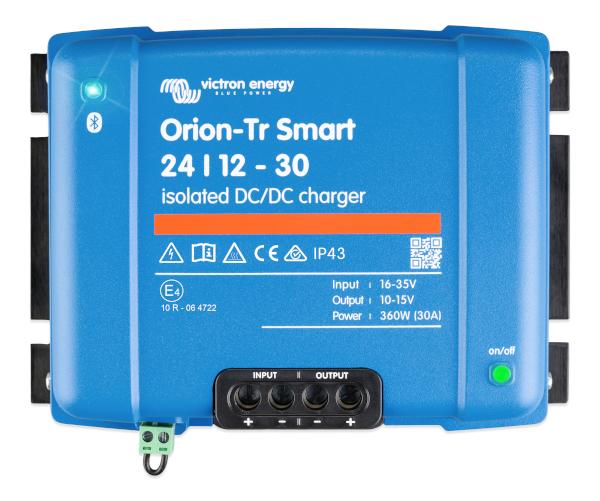

- Victron Orion-Tr 24/12 30A Charger with Bluetooth - Qty 1
- Terminal Battery Connector 8mm NEG - Qty 2

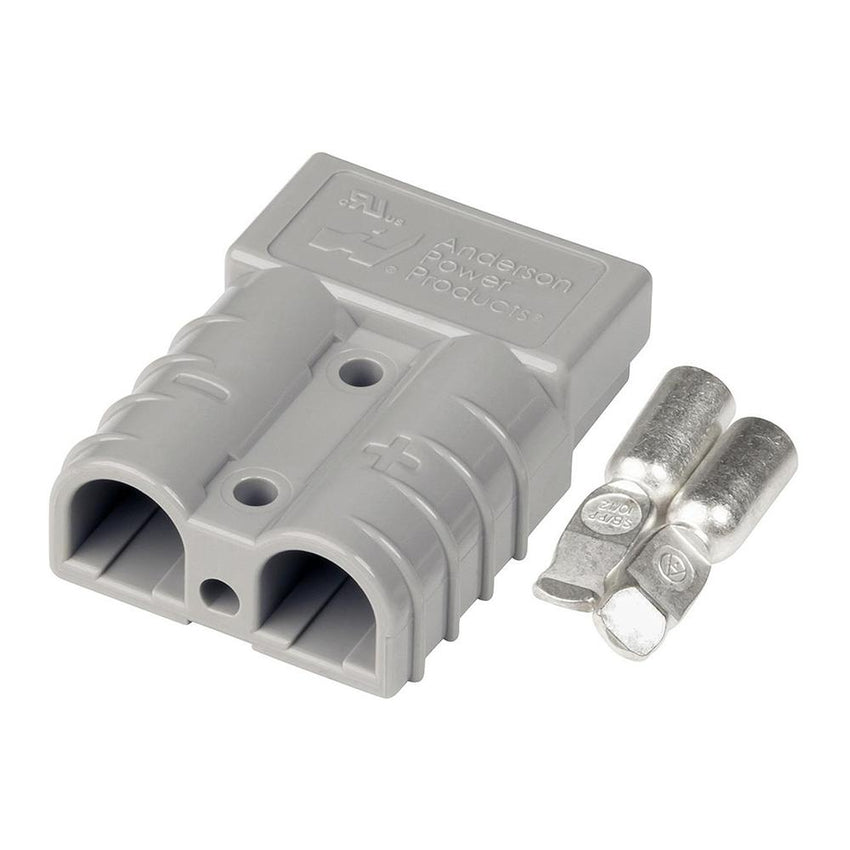

- 50A Anderson-style Cover, black - Qty 1
- AAV workshop consumables - Qty 10
- 60A automotive fuse - Qty 1
- Inline MIDI fuse holder - Qty 1

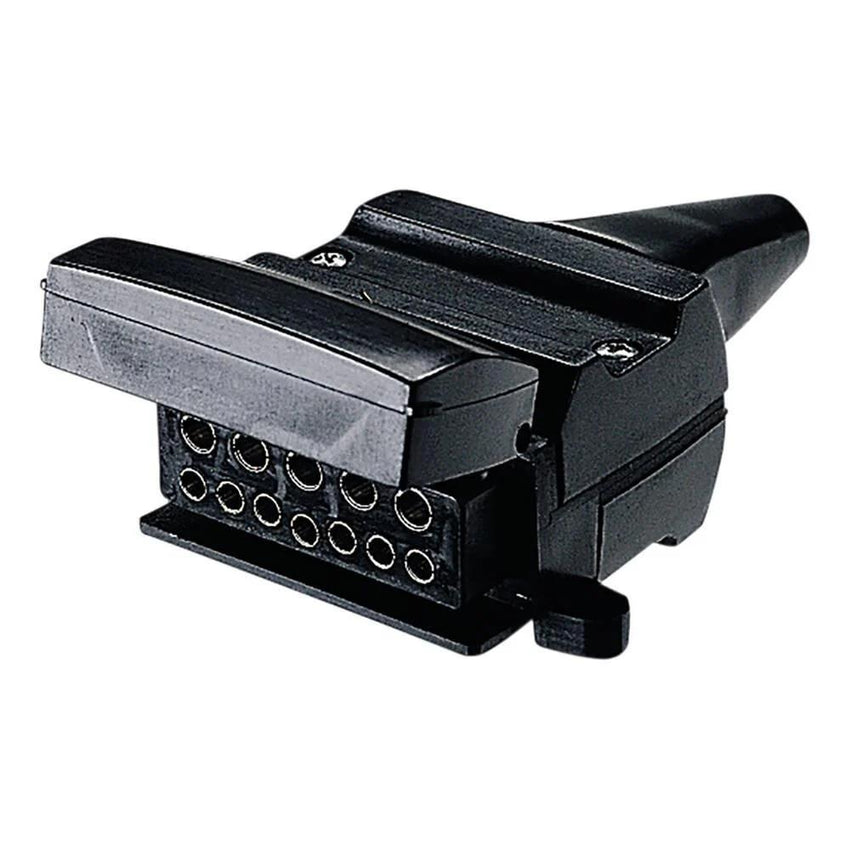

- Towbar trailer socket, 12-pin flat plastic - Qty 1
Common Uses
- Isuzu 4x4 touring and expedition truck builds
- Caravan, camper and trailer towing setups
- Motorhome and off-grid power upgrades
- Auxiliary battery system upgrades
- 12V accessory and charging system support
- Vehicles requiring a 12-pin trailer socket instead of a standard 7-pin connection
- Builds requiring additional lithium battery capacity for extended travel
Key Features
- Upgrades the vehicle from a 7-pin trailer connection to a 12-pin flat trailer socket
- Adds 12V 50A Anderson-style auxiliary power connection hardware
- Includes 3 x 12V 200Ah lithium batteries for 600Ah total nominal lithium capacity
- Includes 3-position battery tray base and Isuzu mounting brackets
- Includes Victron Orion-Tr 24/12 30A charger with Bluetooth
- Includes fuse protection and inline MIDI fuse holder
- Designed for touring, towing and off-grid electrical requirements
- Suitable for Isuzu truck conversions requiring additional 12V power capacity
Installation Notes
- This package involves high-current 12V electrical components and lithium batteries.
- All wiring, fusing, battery mounting and trailer socket connections must be installed correctly for the vehicle and application.
- Battery trays and brackets must be securely mounted before the lithium batteries are installed.
- Fuse protection should be fitted in the correct location and matched to the circuit design.
- Anderson-style connections and trailer socket wiring should be checked for correct polarity and function after installation.
- Professional installation is recommended.
Important: This is a vehicle electrical upgrade package that includes lithium batteries, charging components, fuse protection, battery mounting components and trailer connection hardware. Suitability depends on the vehicle, existing electrical system, towing setup and intended use.
