This Isuzu electrical upgrade is designed for customers wanting to move from a standard 7 pin trailer connection to a more capable 12 pin setup, while also adding a 12V lithium battery system and Anderson plug power connection.
The kit includes three 120Ah lithium batteries, providing a total of 360Ah of lithium battery capacity, along with a Victron 24V to 12V DC-DC charger, battery tray system, fuse protection, Anderson-style connection hardware and a 12 pin trailer socket.
The 12 pin trailer socket allows a standard 7 pin trailer plug to still be connected, so you do not need to run separate trailer plug units for 7 pin and 12 pin use.
Product Details
-
Product: Isuzu 7 Pin to 12 Pin Upgrade with 12V 50Amp Anderson Plugs
-
Lithium capacity: 360Ah total
-
Battery setup: 3 x 120Ah lithium batteries
-
Charging: Victron 24V to 12V DC-DC charger with Bluetooth
-
Trailer connection: 12 pin flat trailer socket
-
Vehicle fitment: Isuzu applications requiring a 7 pin to 12 pin trailer plug upgrade and auxiliary 12V lithium power system
What This Upgrade Does
- Upgrades the trailer connection from 7 pin to 12 pin
- Retains compatibility with standard 7 pin trailer plugs
- Adds a 360Ah lithium battery system
- Provides 24V to 12V DC-DC charging through a Victron charger
- Adds fuse protection and Anderson-style power connection hardware
- Supports auxiliary power requirements for trailer, canopy or touring electrical systems
Kit Components
- 3 Position Battery Tray Base & Brackets - Qty 1
- 3 Position Battery Tray Isuzu Brackets - Qty 1
- I-Tech 120Ah LiFePO4 Lithium Battery - Qty 3

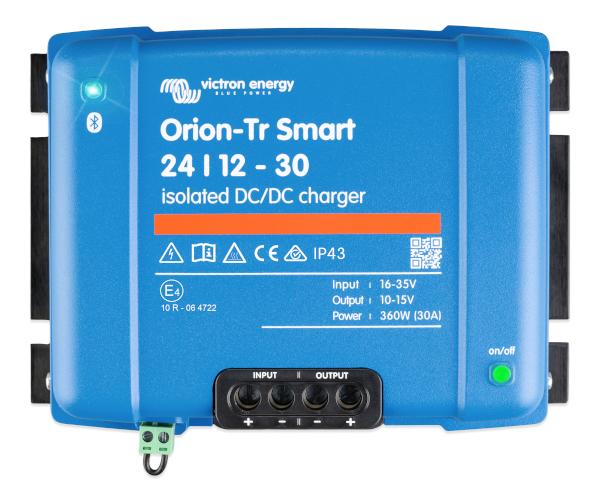

- Victron Orion-Tr 24/12 DC-DC Charger with Bluetooth - Qty 1
- Terminal Battery Connector 8mm - Qty 2
- 50A Anderson Style Cover, Black - Qty 1
- AAV Workshop Consumables - Qty 10
- 60Amp Automotive Fuse - Qty 1
- In-Line MIDI Fuse Holder - Qty 1

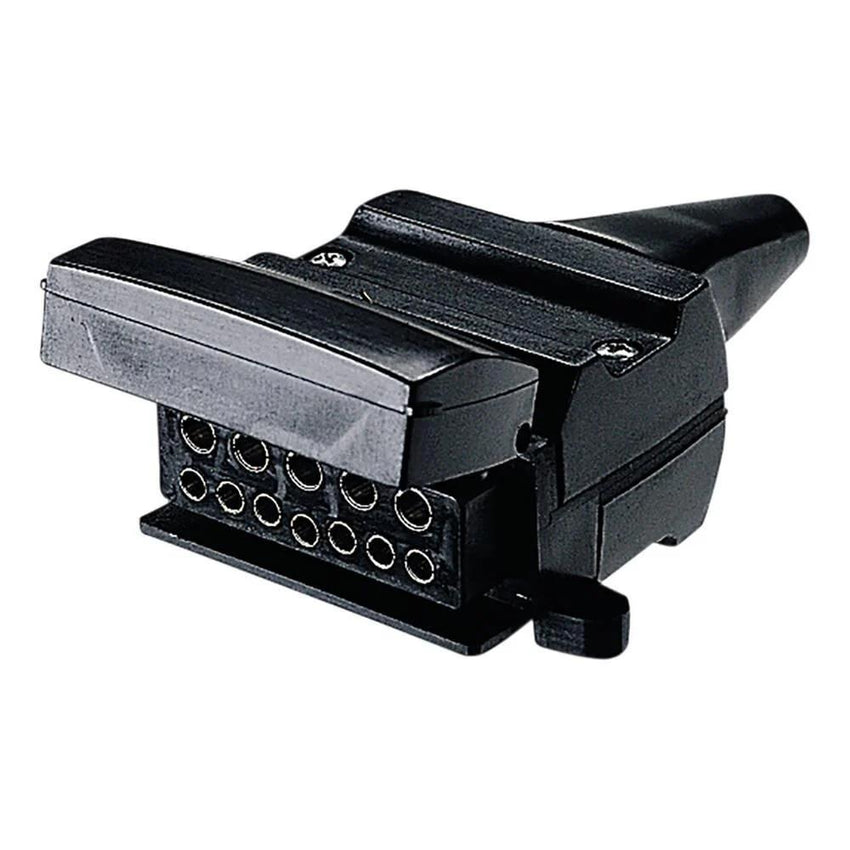

- Towbar Trailer Socket 12 Pin Flat Plastic - Qty 1
Common Uses
- Trailer power upgrades
- Canopy and touring electrical systems
- Auxiliary 12V lithium battery installations
- Running trailer accessories that require more than a standard 7 pin connection
- Customers needing Anderson-style power connection as part of a towing or touring setup
Key Features
- 360Ah total lithium battery capacity
- Three battery tray setup
- Victron Bluetooth-enabled DC-DC charging
- 12 pin socket that still accepts a standard 7 pin trailer plug
- Fuse and fuse holder included for circuit protection
- Designed as a complete upgrade package using AAV-specified components
Installation Notes
- A wiring diagram is required before final installation.
- Requirements for pins 8, 9, 11 and 12 must be confirmed before the job is finalised.
- For each required pin, please confirm what it is being used for, the amperage required, and whether it needs ignition power or constant power.
- Final pricing may vary depending on the wiring requirements and final pin configuration.
Important: Final suitability and pricing depend on the vehicle setup, required trailer wiring functions, amperage requirements, and whether each circuit is required to be ignition-switched or constant power.
