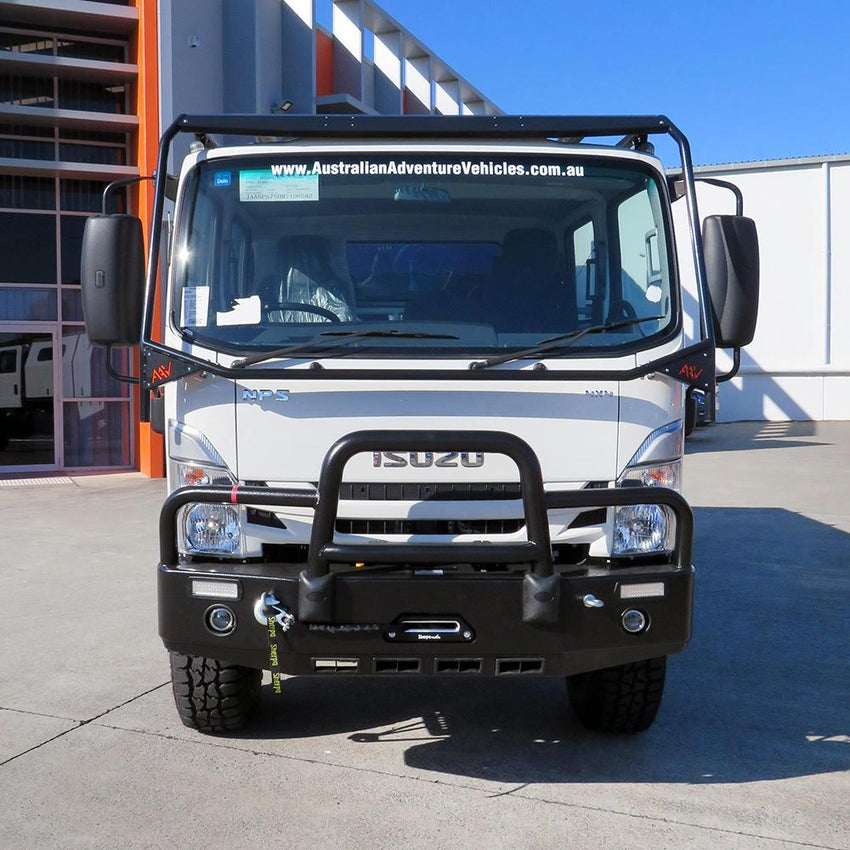

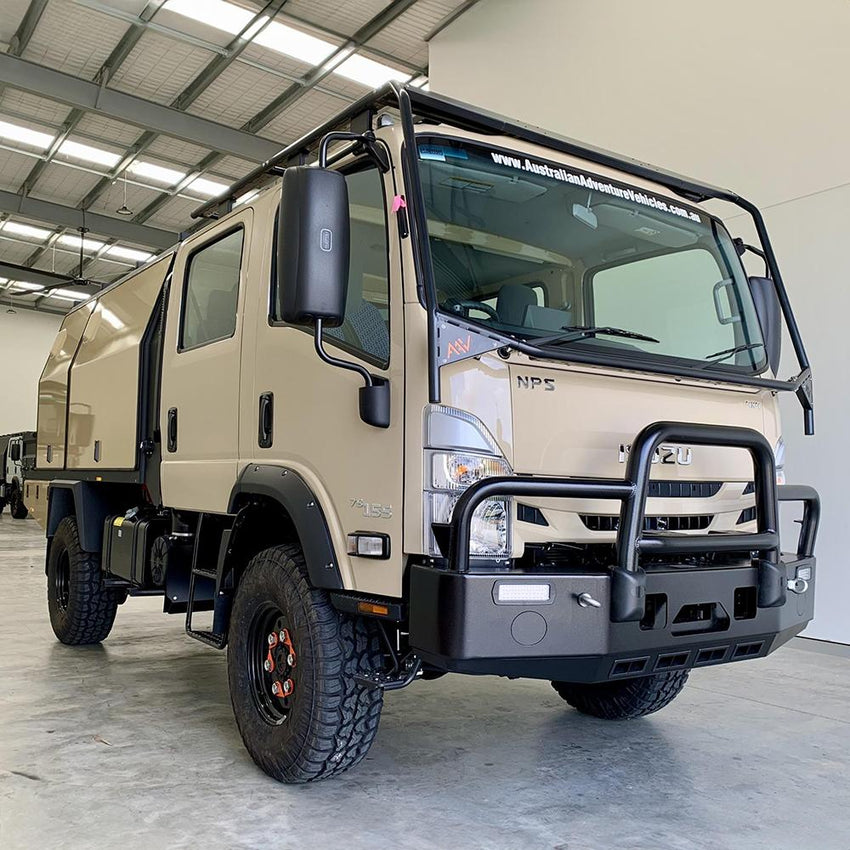

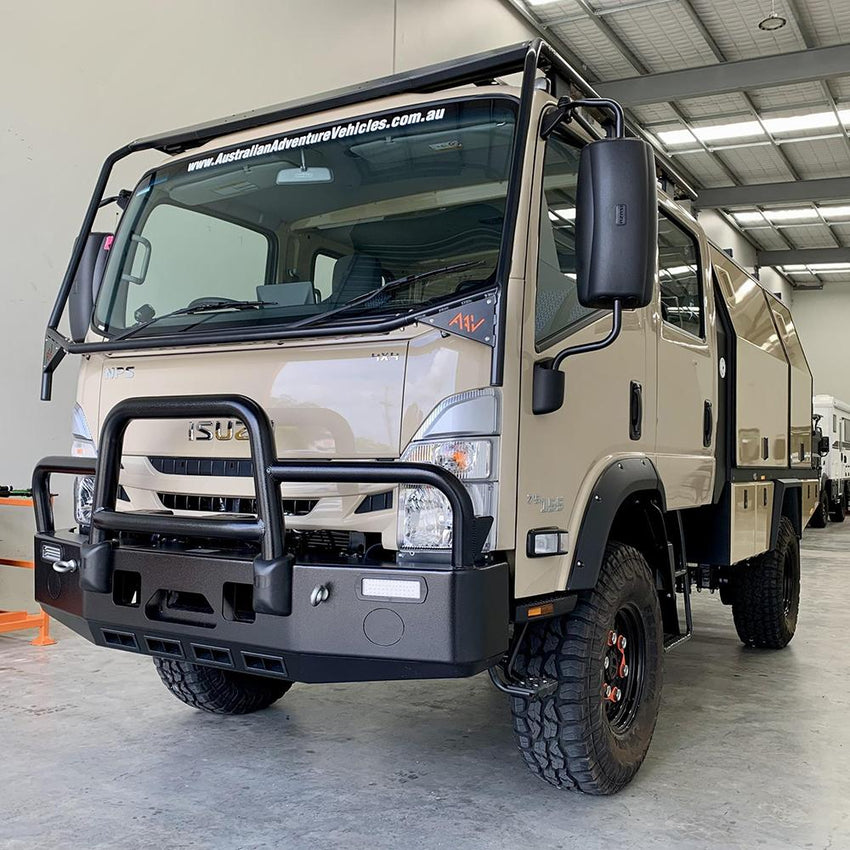

The AAV4x4 Isuzu NPS Rated Recovery Bull Bar is a heavy-duty front protection and recovery system designed for Isuzu NPS NH 4x4 models from 2008 onwards.
Combining a high-tensile structural-grade alloy bull bar with a purpose-built steel chassis-mounted winch support system, the design provides substantial frontal protection and high-capacity recovery capability while avoiding the unnecessary weight of a completely steel bull bar.
This version is winch compatible and designed to accommodate the compatible AAV4x4 LED low-beam headlight upgrade if required, but the low-beam headlight kit is not included with this product.
The main bull bar structure is manufactured from high-tensile structural-grade alloy and incorporates a fully welded single-piece channel.
This provides substantial front-end protection while taking advantage of the reduced mass of alloy compared with an equivalent all-steel bull bar.
The complete bull bar assembly weighs approximately 85kg, with an approximate net increase to vehicle weight of 70kg after allowance for components displaced during installation.
Although the outer bull bar structure is alloy, the winch mounting arrangement uses a purpose-built steel support system secured directly to the vehicle chassis.
This provides a strong foundation for the high loads generated during winching while allowing the alloy bull bar to provide the surrounding protection structure.
The bull bar is engineered for selected low-mount winches up to 20,000lb.
Compatible examples include:
Compatibility should be confirmed before fitting a winch not specifically listed for the bull bar, as winch dimensions, motor position and control-box configuration can vary between models.
The winch is mounted behind the main bull bar structure rather than externally on the front face.
A concealed fairlead opening allows the winch rope to exit cleanly through the bar while keeping the recovery system integrated into the overall front-end design.
This arrangement provides serious self-recovery capability without unnecessarily projecting the complete winch assembly forward of the vehicle.
The AAV4x4 configuration incorporates quick-connect recovery points on both sides of the bull bar assembly.
The pin-lock design allows a compatible recovery strap to be inserted directly into the recovery point without requiring a separate bow shackle at the bull bar connection.
Simply remove the retaining pin, position the compatible recovery strap and reinstall the pin to create a secure recovery connection.
A heavy expedition truck requires recovery equipment designed around the loads generated by the vehicle rather than lightweight passenger-vehicle accessories.
The combination of chassis-mounted winch support, substantial front protection and integrated recovery points makes this bull bar particularly suited to NPS vehicles used for:

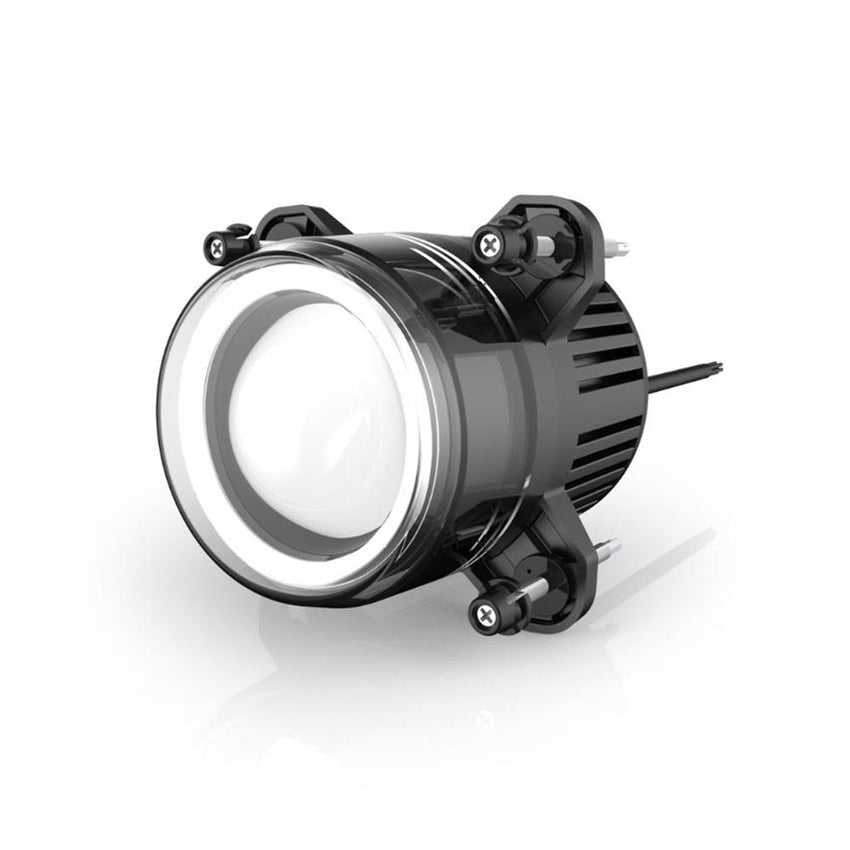

The bull bar is designed to accommodate the compatible AAV4x4 LED low-beam headlight upgrade where required.
This allows the low-beam lighting system to be integrated into the bull bar configuration as a separate upgrade without requiring a different bull bar.
The LED low-beam headlight kit is not included with this product.
LED combination lighting is incorporated into the bull bar as part of the standard front protection system.
The lights are integrated into the bull bar structure for a clean and protected installation.
The bull bar is designed for its specific Isuzu NPS application and is ADR compliant and airbag compatible.
This vehicle-specific design is particularly important on modern trucks, where the bull bar mounting system and front protection structure must work with the vehicle rather than simply being treated as a universal accessory.
A full-width braced lower protection skirt extends beneath the main alloy channel, providing additional protection to the lower front section of the vehicle.
This is particularly useful for NPS trucks operating on rough tracks, work sites, rural roads and remote-area routes where the lower front of the vehicle may be exposed to impacts and debris.
Integrated air-directional vents help maintain airflow through the bull bar toward the vehicle's cooling system.
Maintaining effective cooling airflow is especially important for heavily loaded NPS trucks operating on long climbs, at low speeds or in demanding off-road conditions.
Dedicated spotlight mounting provisions are incorporated into the bull bar.
The spotlight mounting tabs are positioned approximately 350mm centre-to-centre and provide a strong location for compatible auxiliary driving lights.
Integrated aerial mounting provisions provide suitable mounting points for compatible UHF or communications antennas.
This allows communications equipment to be incorporated neatly into the vehicle's front accessory system without requiring additional standalone brackets.
The bull bar is finished in Textura Black powder coat, providing a durable textured appearance suited to touring, expedition and commercial vehicles.
The black finish also integrates well with other common vehicle accessories such as driving lights, winches and communications equipment.
| Product | Rated Recovery Winch Bull Bar – Low Beam Light Compatible |
|---|---|
| Vehicle application | Isuzu NPS NH 4x4 – 2008 onwards |
| Bull bar construction | High-tensile structural-grade alloy |
| Main channel construction | Fully welded single-piece alloy channel |
| Winch mounting structure | Purpose-built steel chassis-mounted system |
| Maximum specified winch capacity | Selected low-mount winches up to 20,000lb |
| Recovery points | AAV4x4 quick-connect pin-lock recovery points |
| Lower protection | Full-width braced protection skirt |
| Finish | Textura Black powder coat |
| ADR compliant | Yes |
| Airbag compatible | Yes |
| Manufacturing | Australian manufactured |
| Total product weight | Approximately 85kg |
| Net weight added to vehicle | Approximately 70kg |
| Overall bar width | Approximately 1935mm |
| Distance added to front of vehicle | Approximately 315mm |
| Centre tube height clearance | Approximately 300mm |
| Grille clearance | Approximately 100mm |
| Minimum centre tube inside width | Approximately 440mm |
| Maximum centre tube inside width | Approximately 679mm |
| Spotlight tab spacing | Approximately 350mm centre-to-centre |
| Standard lighting | Integrated LED combination lights |
| Low beam upgrade | Compatible – low-beam headlight kit not included |
| Cooling | Air-directional cooling vents |
The LED low-beam headlight kit is not included with this product. The bull bar is compatible with the applicable AAV4x4 low-beam headlight upgrade, which can be added separately where required.
A winch is not included unless separately specified. The bull bar is designed for selected low-mount winches up to 20,000lb, and compatibility should be confirmed before selecting a winch outside the listed applications.
Driving lights, UHF aerials and optional lighting accessories are not included unless separately specified.
