Complete fitted TrackMaster suspension upgrade for compatible Isuzu NPS 2014+ vehicles, combining a heavy-duty front multi-leaf spring upgrade with the vehicle's rear OEM springs retained and blocked to suit the upgraded suspension height.
The package is matched with adjustable front and rear remote-canister monotube shock absorbers, providing extensive damping adjustment for changing terrain, vehicle loading and operating conditions.
The front suspension is upgraded to a heavy-duty multi-leaf spring arrangement. At the rear, the vehicle's OEM spring pack is retained and blocked to match the upgraded front suspension configuration.

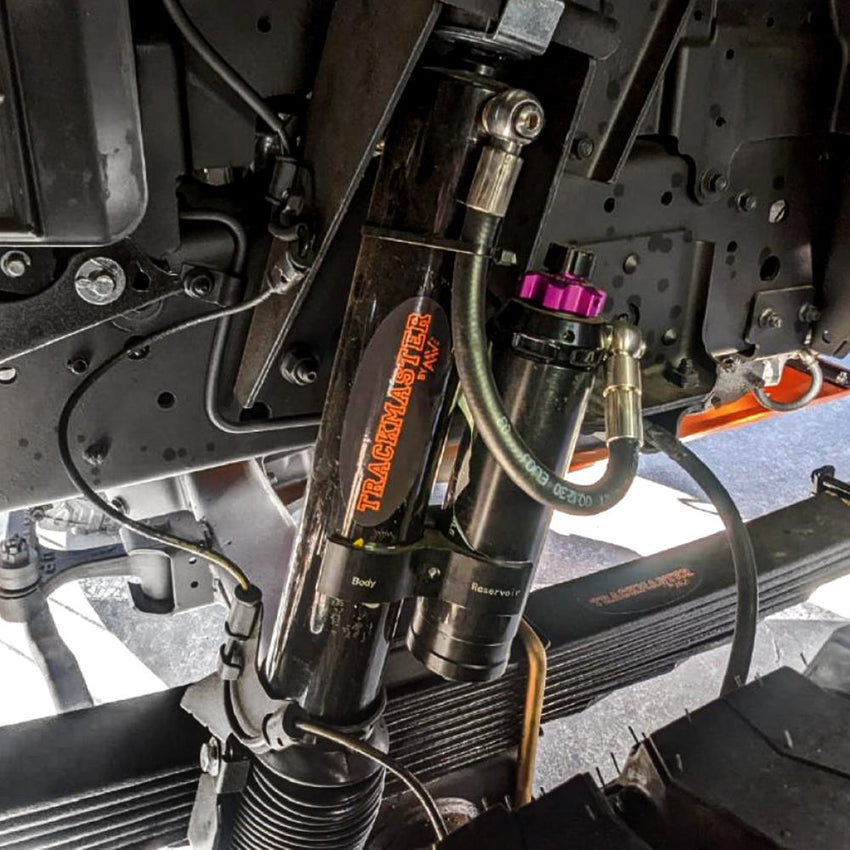

The suspension package uses heavy-duty monotube shock absorbers with remote reservoirs and independent damping adjustment.

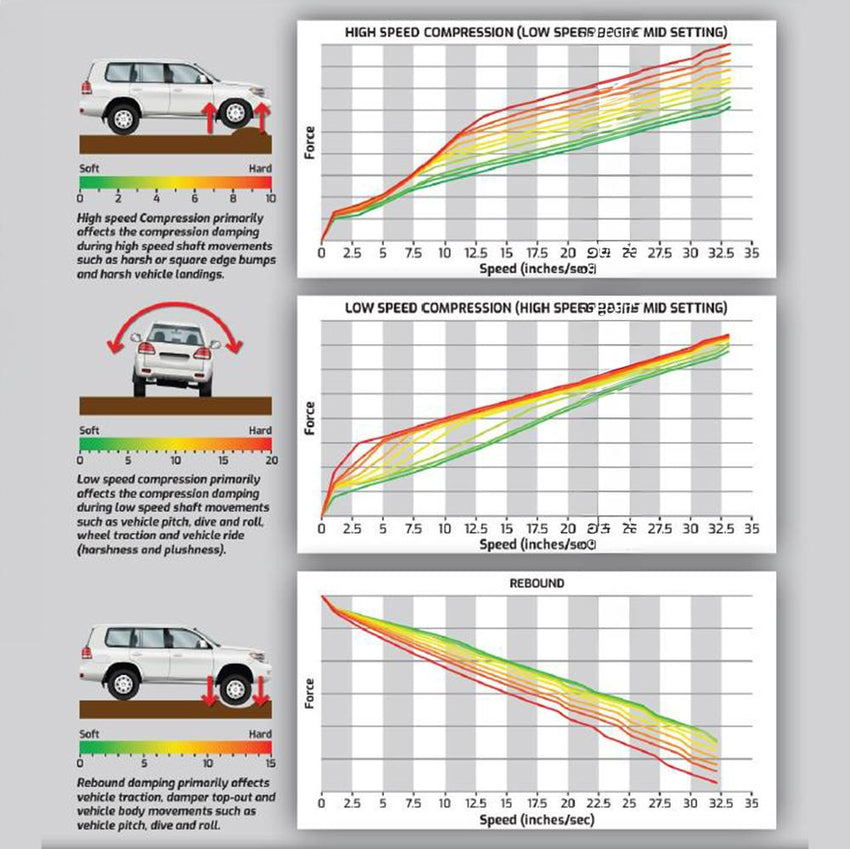

Rebound damping provides 15 stages of adjustment, while the remote reservoir provides 10-stage high-speed and 20-stage low-speed compression adjustment.
This allows the shock damping to be adjusted to better suit varying terrain, vehicle loading and operating conditions.
| Vehicle Application | Compatible Isuzu NPS 2014+ |
|---|---|
| Front Springs | Heavy-duty multi-leaf upgrade |
| Rear Springs | OEM springs retained with suspension blocks |
| Shock Type | Remote-canister monotube |
| Shock Body Diameter | 66mm |
| Shock Shaft Diameter | 22mm hard-chrome plated |
| Rebound Adjustment | 15 stages |
| High-Speed Compression Adjustment | 10 stages |
| Low-Speed Compression Adjustment | 20 stages |
| Remote Reservoir Diameter | 60mm |
| Installation | Professionally fitted by AAV4x4 |
| Wheel Alignment | Included |
This fitted suspension package is intended for compatible Isuzu NPS 2014+ vehicles.
If the vehicle is not new, vehicle measurements may be required before the suspension components are ordered. Vehicle configuration and suitability should therefore be confirmed before booking installation.
