AAV4X4 sump guard kit powdercoated to suit Isuzu NPS 2008+ models, supplied unfitted for installation by the customer, workshop or vehicle builder.
Built from 3mm thick 350 grade steel, this sump guard kit is designed to add heavy-duty protection to the lower engine and sump area.
This kit is made for 4x4 touring, off-road travel and work vehicle applications where the underside of the vehicle may be exposed to rocks, ruts, scrub, debris and rough-road impacts. Unlike radiator and condenser guards, this kit is built primarily for underbody protection rather than ventilation.
Product Details
- Product: Sump guard kit powdercoated
- SKU: AU214982
- Vehicle fitment: Isuzu NPS 2008+
- Supply type: Unfitted / supply only
- Material: 350 grade steel
- Thickness: 3mm
- Finish: AAV orange powdercoat
- Designed for: Sump and lower engine area protection
- Supplied with: Guard plates, mounting brackets, hardware kit and fitting instructions

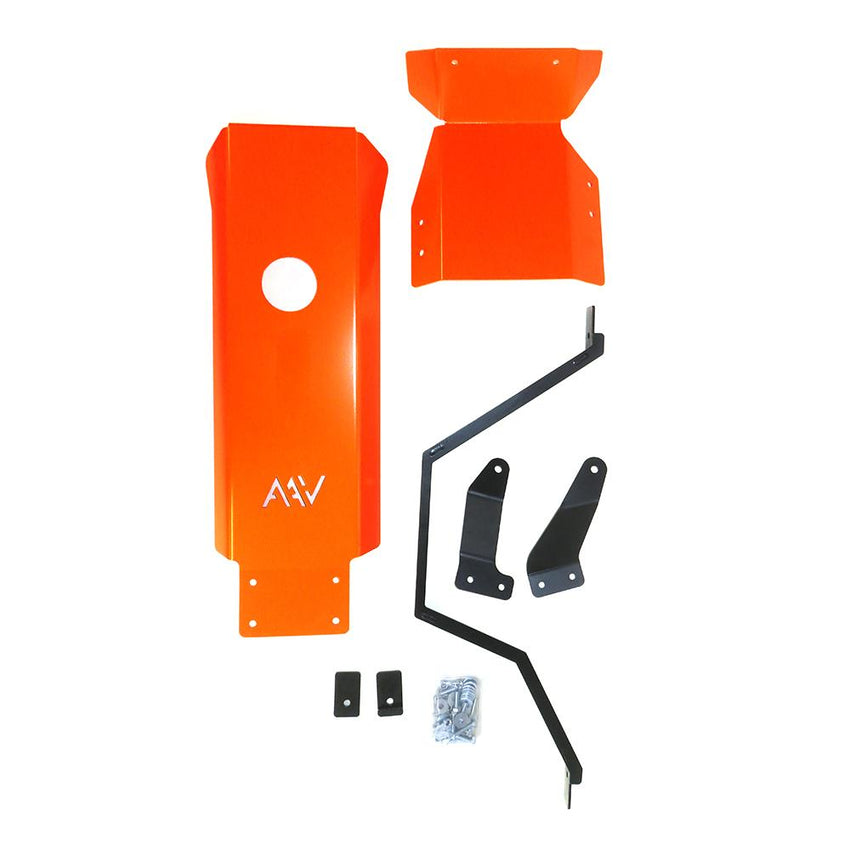

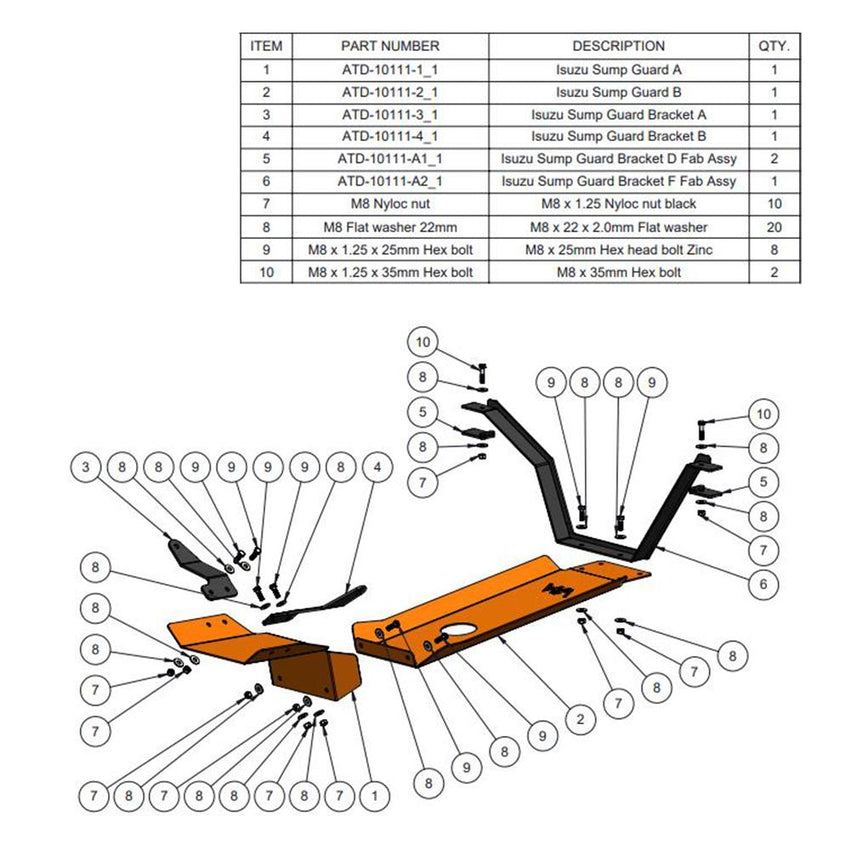

Kit Includes
- Isuzu sump guard A
- Isuzu sump guard B
- Isuzu sump guard bracket A
- Isuzu sump guard bracket B
- Isuzu sump guard bracket D fab assemblies
- Isuzu sump guard bracket F fab assembly
- M8 nyloc nuts
- M8 flat washers
- M8 x 25mm hex bolts
- M8 x 35mm hex bolts
- Fitting instructions
Common Uses
- Additional sump protection for Isuzu NPS 4x4 trucks
- Touring, camping and off-road travel setups
- Remote area vehicle preparation
- Work vehicles operating on rough roads, tracks or unsealed surfaces
- Protection from rocks, sticks, scrub, ruts and general underbody debris
- Workshop, fleet or customer installation
Key Features
- Designed to suit Isuzu NPS 2008+ models
- Manufactured from 3mm thick 350 grade steel
- Finished in AAV orange powdercoat
- Two-piece sump guard design with dedicated mounting brackets
- Helps protect the lower engine and sump area from impact and debris
- Built for underbody protection rather than ventilation
- Complete hardware kit included
- Fitting instructions included
- Supplied unfitted for customer or workshop installation
- Suitable for 4x4 touring, commercial and off-road vehicle applications
Installation Notes
- Read the supplied fitting instructions before installation.
- Use the supplied brackets, bolts, washers and nyloc nuts during installation.
- Ensure all fasteners are tightened securely.
- Check clearance around the sump, engine, crossmembers, steering, suspension and surrounding components after fitting.
- Recheck fasteners after initial driving, especially after off-road use.
- Inspect the guards periodically for damage, loose hardware or trapped debris.
Important: This product is supplied unfitted. Installation should be carried out by a competent person or workshop. This sump guard kit is designed to assist with protection of the lower engine and sump area, but it does not make the vehicle immune from damage. Always drive to the conditions and inspect the vehicle after off-road or rough-road use.
