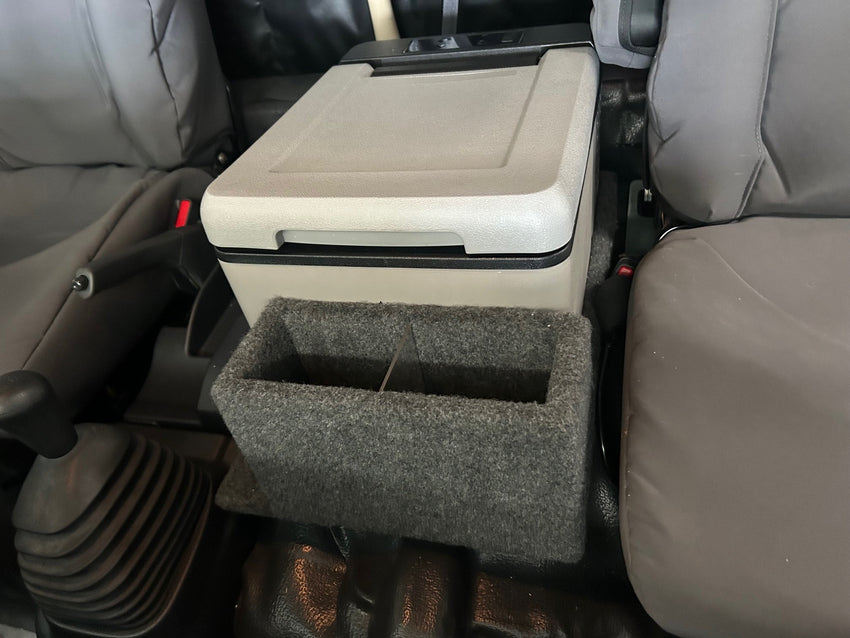

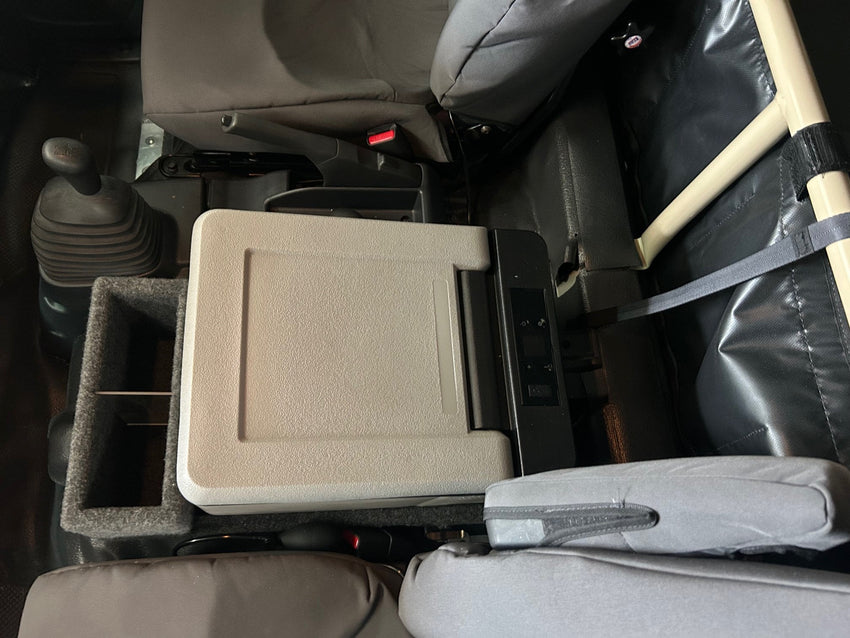

Add practical centre storage and compact refrigerated space between the single front seats of a compatible Isuzu NPS with this AAV4x4 centre-console and 9L fridge/freezer package.
The console uses a timber-frame construction with grey interior trim and is designed to house the supplied compact 9L 12/24V DC fridge/freezer.
This version is supplied unfitted. Vehicle installation and electrical connection are not included.
The console is intended specifically for Isuzu NPS cab configurations using separate single front seats.

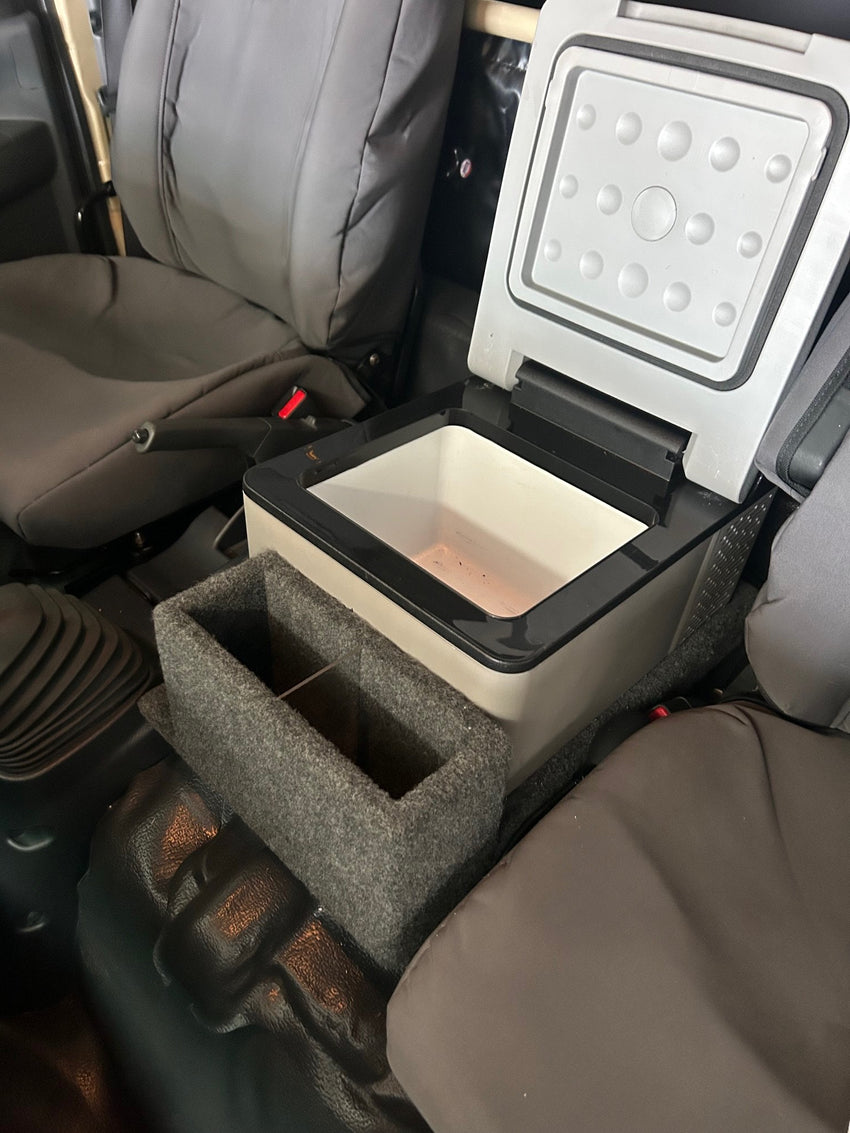

The compact fridge/freezer is incorporated into the console structure, creating a combined centre-console and refrigerated-storage package rather than requiring a separate portable fridge position elsewhere in the cab.
The supplied fridge has a 9-litre single-zone cabinet that can be operated as either a refrigerator or freezer.
The current unit has a manufacturer-specified temperature-control range of approximately -20°C to +10°C.
The fridge/freezer operates from either 12V or 24V DC, allowing use with the applicable vehicle auxiliary-power arrangement.
Current draw is specified at approximately 3.8A at 12V or 1.9A at 24V while operating.

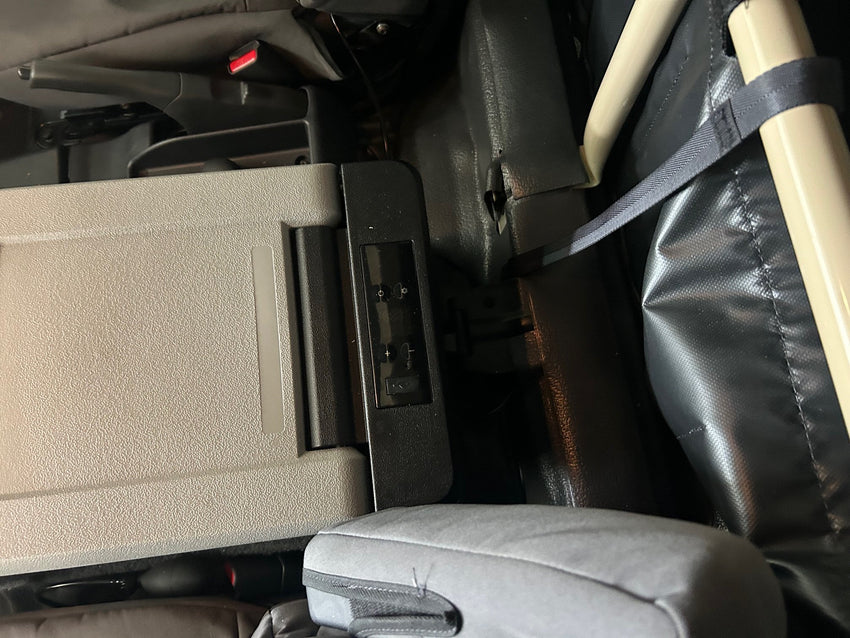

Digital controls allow the required cabinet temperature to be selected directly at the fridge.
The fridge also provides Economy and Maximum operating modes for different cooling requirements.
A three-stage low-voltage battery-protection system is incorporated into the fridge to help prevent excessive discharge of the connected vehicle battery.
This listing supplies the centre-console and fridge/freezer package unfitted.
Correct console positioning, secure vehicle mounting, cable routing and electrical connection remain the responsibility of the installer.
| Vehicle Application | Compatible Isuzu NPS with single front seats |
|---|---|
| Console Construction | Timber frame with grey trim |
| Fridge Capacity | 9L |
| Fridge Configuration | Single-zone fridge/freezer |
| Operating Voltage | 12/24V DC |
| Temperature Range | Approximately -20°C to +10°C |
| Current Draw | 3.8A at 12V / 1.9A at 24V |
| Temperature Control | Digital |
| Operating Modes | Economy / Maximum |
| Battery Protection | Three-stage low-voltage protection |
| Fridge Dimensions | 425 x 320 x 255mm |
| Fridge Weight | Approximately 6.7kg |
| Installation | Supply only / unfitted |
This console is intended for Isuzu NPS vehicles configured with single front seats.
This product is supplied unfitted. Vehicle mounting and electrical installation are not included.
