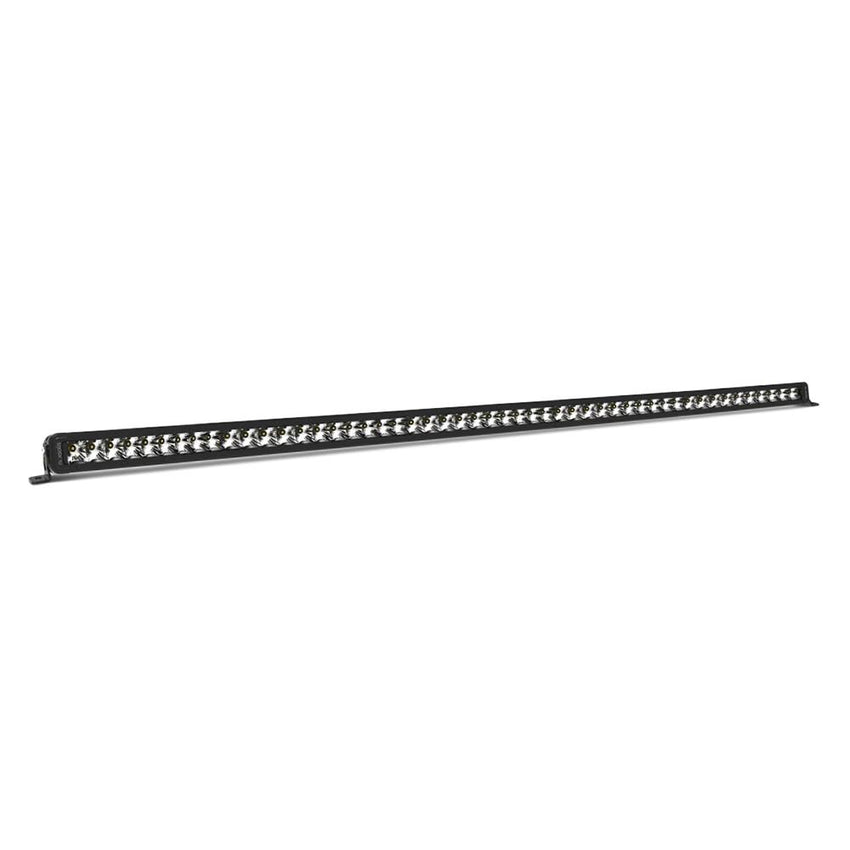

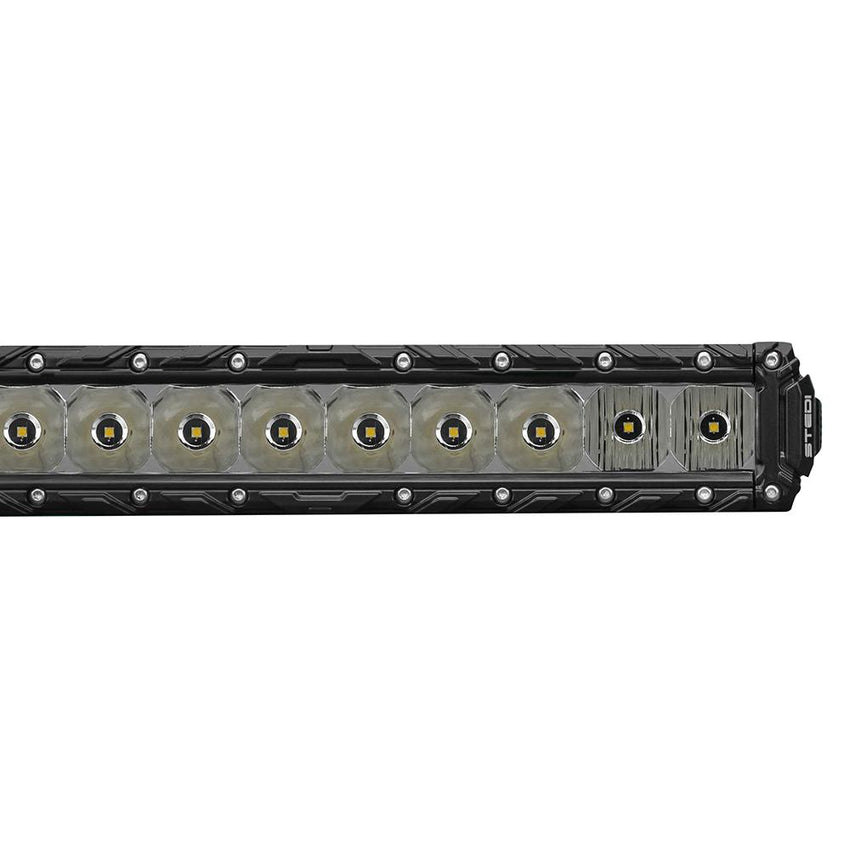

The Noxsolis NX851 52" Single-Row LED Light Bar delivers a balanced combination of long-range projection and wide-area illumination in a slim, low-profile housing. Designed for both highway and off-road driving, its combination beam provides broad visibility close to the vehicle while maintaining a strong central beam for identifying hazards further down the road or track.
Using high-performance OSRAM OSLON® LEDs, the NX851 produces 12,623 raw lumens with a clean 5700K white output. The beam reaches 1 lux at 780 metres, providing useful distance without sacrificing the width needed for road shoulders, tracks and surrounding terrain.
This product is supplied unfitted with both side-mounting and bottom-mounting brackets, allowing the light bar to be installed on a suitable bull bar, nudge bar, roof rack or custom mounting structure.
The NX851 uses a combination beam to provide two useful forms of illumination from a single light bar. The wider portion of the beam spreads light across the area immediately ahead of the vehicle, while the focused central section projects further down the road.
This arrangement provides broad visibility across road edges and surrounding terrain while maintaining enough central intensity for open-road and remote-area driving.
The light bar produces a beam reaching 1 lux at 780 metres. This gives the driver improved visibility of road changes, animals, obstacles and track conditions well ahead of the vehicle.
Unlike a narrow pencil beam, the NX851 also provides substantial width closer to the vehicle, making it suitable for applications where both distance and peripheral awareness are important.
The OSRAM OSLON® LEDs produce a combined raw output of 12,623 lumens. Their output is directed through the light bar's combination optics to create a practical balance of spread and forward reach.
The NX851 produces a 5700K white light, providing clear illumination of road surfaces, tracks, vegetation and surrounding objects during night driving.
The clean white output helps improve contrast and visibility across changing terrain and road conditions.
The single-row layout keeps the overall housing compact compared with larger double-row light bars. This makes the NX851 suitable for installations where available height or depth is limited.
Its streamlined profile is well suited to modern bull bars, roof racks, nudge bars and other mounting positions where a discreet appearance is preferred.
The light bar is built around a heavy-duty die-cast aluminium housing designed for use in demanding road and off-road environments. The aluminium body provides structural strength while helping dissipate heat generated during operation.
An impact-resistant polycarbonate lens protects the LEDs and internal optical components from road debris, branches, dust and other hazards.
The NX851 carries both IP67 and IP69K ingress-protection ratings.
These ratings make the light bar suitable for operation in rain, dust, mud and other demanding conditions commonly encountered by touring, work and off-road vehicles.
The NX851 operates across 12V and 24V electrical systems, allowing it to be installed on a broad range of vehicles, including four-wheel drives, utes, trucks and commercial equipment.
The light bar draws approximately:
A suitable relay, fuse, switch and wiring harness must be selected to support the 200W electrical load.
The NX851 uses a triple electrical circuit configuration. This forms part of the light bar's internal electrical design and supports the operation of its LED array.
The light bar complies with R10 electromagnetic interference requirements. This helps reduce unwanted electrical interference with compatible vehicle electronics and communication equipment.
A sealed 2-pin Deutsch DT-P connector provides the electrical connection to the light bar. The connector is designed for demanding automotive and off-road environments where resistance to moisture, dirt and vibration is important.
The NX851 is supplied with two mounting systems, allowing its installation to be adapted to different vehicles and supporting structures.
The supplied side brackets support installation from each end of the light bar and allow the beam angle to be adjusted during fitting.
Three bottom brackets are also included, providing additional flexibility for mounting the light bar along its lower channel.
These mounting options make the NX851 suitable for installation on compatible:
Important: This product is supplied unfitted. The package includes mounting brackets and hardware, but a wiring harness is not listed as part of the supplied kit. Confirm the available mounting space, structural support, vehicle electrical capacity and high-beam connection requirements before installation.
