Gxo Isuzu NPS Rear Winch 20,000Lb Winch 20M Synthetic Cable Fitted

GXO Isuzu NPS Rear 24V 20,000lb Winch with 25m Synthetic Rope – Fitted

Add heavy-duty rear recovery capability to the applicable Isuzu NPS GX with this professionally fitted 24V rear-winch package.

The current package combines a 20,000lb / approximately 9,072kg recovery winch with 25 metres of 12mm synthetic rope, a dedicated Isuzu GX rear winch cradle and heavy-current electrical cabling.

AAV4x4 completes the mechanical mounting, high-current electrical connection and operational testing as part of the fitted package.

Key Features

• Designed for the applicable Isuzu NPS GX installation
• Dedicated Isuzu GX rear winch cradle
• 20,000lb rated pulling capacity
• Approximately 9,072kg rated pull
• 24V DC electrical configuration
• 25m x 12mm synthetic winch rope
• Heavy-duty winch construction
• Automatic load-holding brake
• Thermal overload protection
• Weather-sealed control system
• Sealed solenoid/control arrangement
• Heavy-gauge 0 B&S positive and negative cabling
• High-current distribution connection
• Professionally fitted and electrically connected by AAV4x4

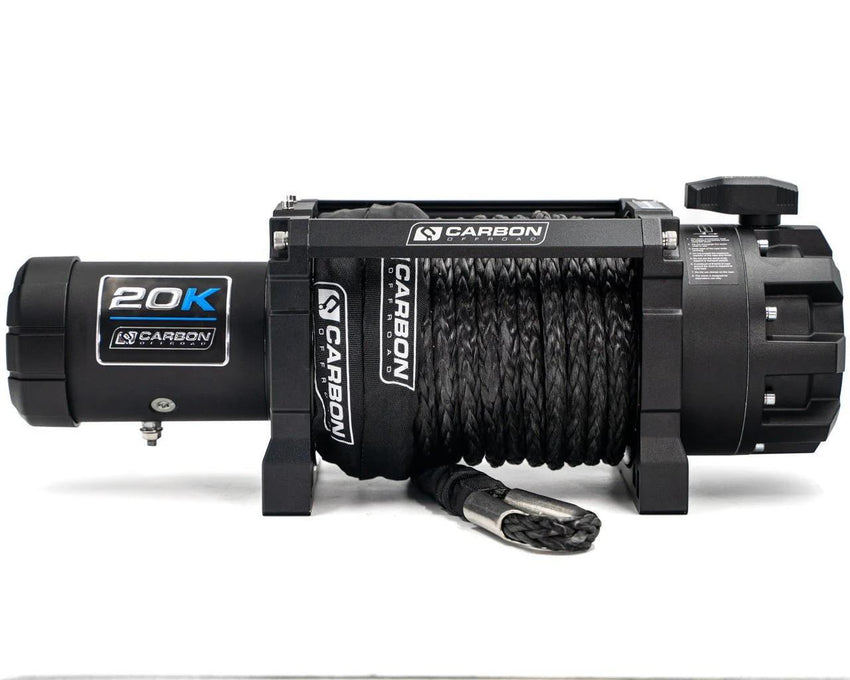

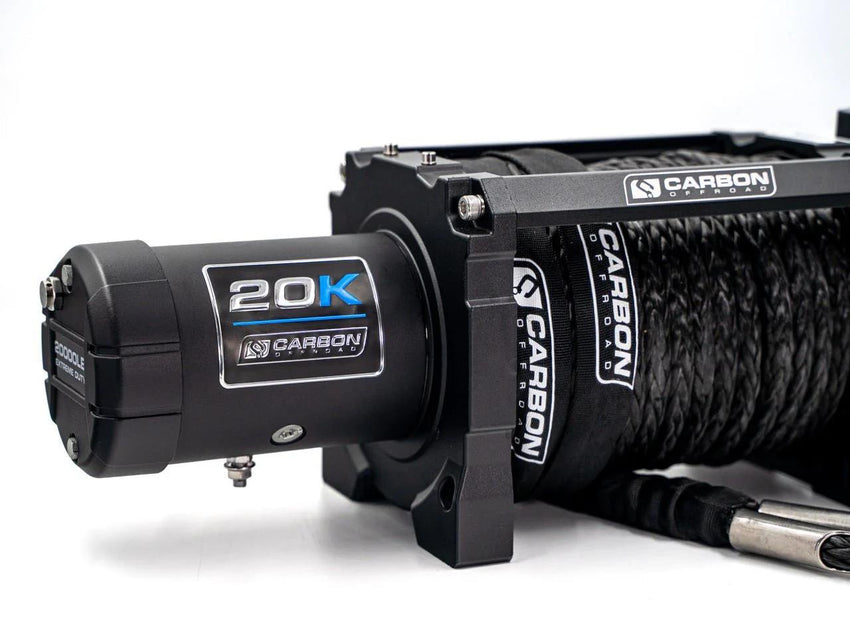

20,000lb Recovery Capacity

The current winch platform carries a published pulling capacity of 20,000lb, equivalent to approximately 9,072kg.

Actual recovery loads are affected by terrain, gradient, vehicle resistance, rope angle and the number of rope layers remaining on the drum.

Dedicated 24V Operation

This package uses the 24V version of the winch for integration with the applicable Isuzu GX electrical system.

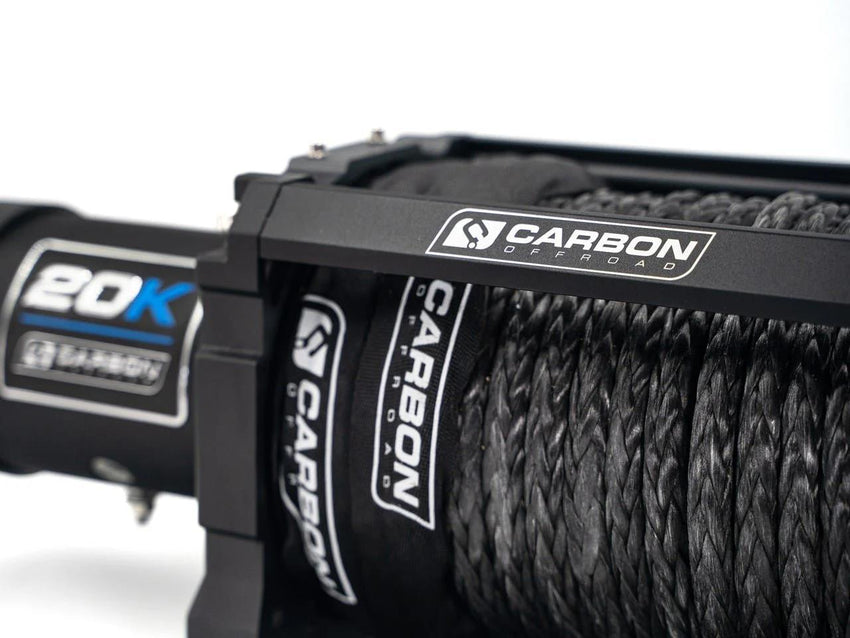

25m x 12mm Synthetic Rope

The current Vision assembly specifies 25 metres of 12mm synthetic winch rope.

This current specification supersedes the older 20m wording in the root product title and the older winch specification still shown in previous product copy.

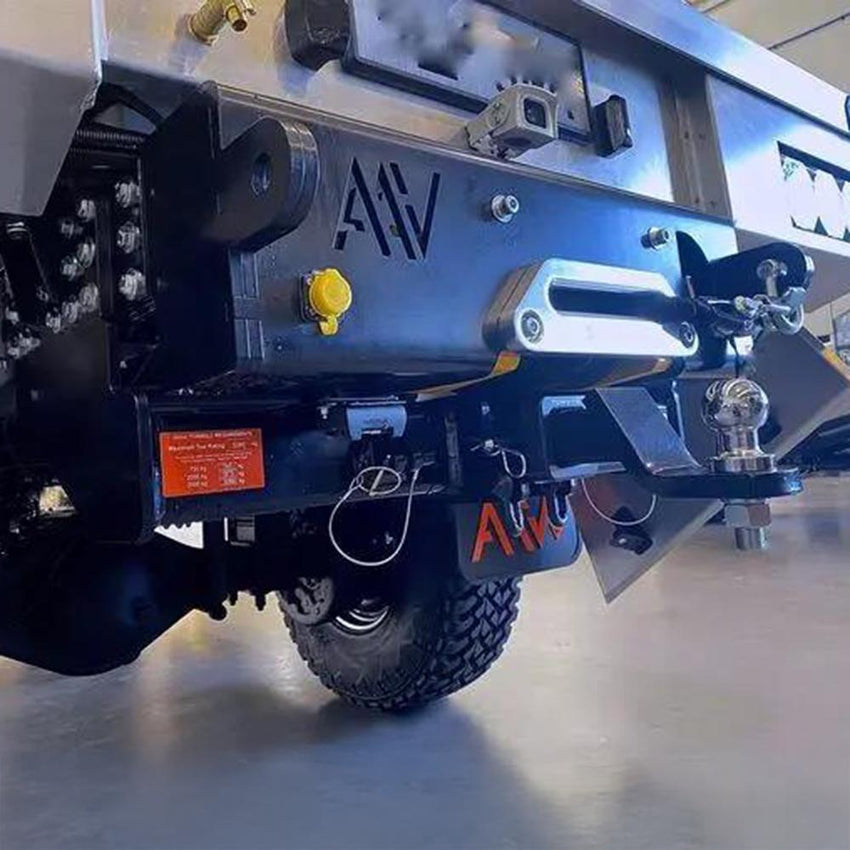

Isuzu GX-Specific Rear Cradle

The fitted package includes a dedicated Isuzu GX rear winch cradle for mounting the recovery winch at the rear of the vehicle.

Automatic Brake & Thermal Protection

An automatic load-holding brake forms part of the winch system to help control the drum when winching stops under load.

Thermal overload protection is also incorporated to help protect the winch during demanding operation.

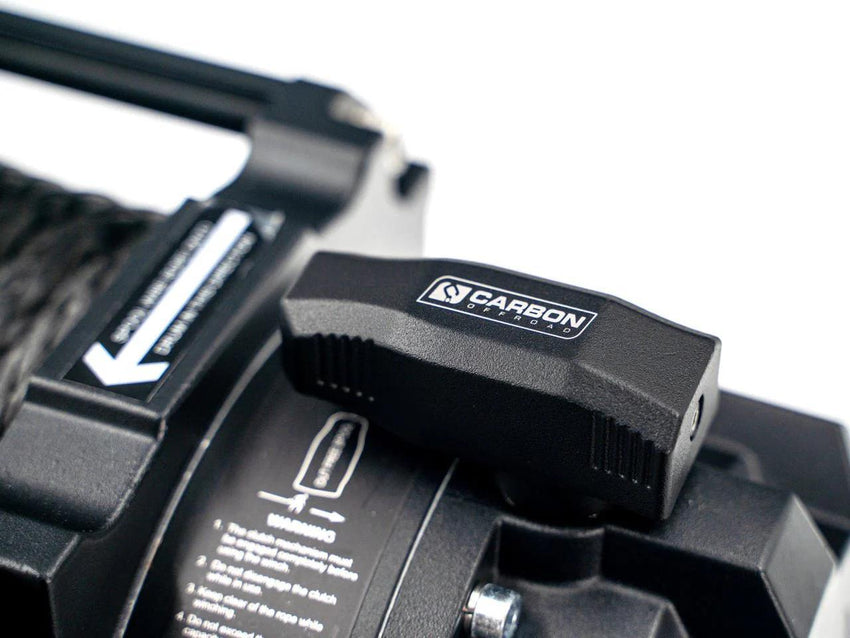

Weather-Sealed Controls

The winch incorporates weather-sealed controls together with a sealed solenoid/control arrangement for use in demanding vehicle-recovery environments.

Heavy-Current Electrical Installation

The current GX assembly specifies approximately 7 metres each of 0 B&S red positive and black negative battery cable.

A dedicated high-current distribution connection is also incorporated into the current installation.

Professional AAV4x4 Installation

AAV4x4 installs and secures the GX-specific rear cradle and winch, routes and terminates the heavy-current positive and negative cabling, completes the required electrical connections and carries out an operational test after installation.

Specifications

Included

• 24V 20,000lb recovery winch
• 25m x 12mm synthetic winch rope
• Isuzu GX-specific rear winch cradle
• Heavy-current 0 B&S positive and negative cabling
• High-current distribution connection
• Professional mechanical and electrical installation by AAV4x4
• Post-installation operational testing

Important Notes

The current Vision assembly specifies 25m x 12mm synthetic rope. Older product wording referring to a 20m rope or the previous winch specification is no longer current for this SKU.

Safe recovery practice, correctly rated recovery equipment and suitable vehicle recovery points remain essential whenever a winch is used.
