Gxo Fuso FGB71 Rear Winch 20,000Lb Winch 21M Synthetic Cable Fitted

GXO Fuso FGB71 Rear 12V 20,000lb Winch with 25m Synthetic Rope – Fitted

Add heavy-duty rear recovery capability to the Fuso FGB71 GX with this professionally fitted 12V rear winch package.

The current package combines a 20,000lb / approximately 9,072kg recovery winch with 25 metres of 12mm synthetic rope, a dedicated GX rear winch cradle and the high-current electrical system required for the installation.

AAV4x4 completes the mechanical installation, heavy-current cabling, fuse protection, electrical integration and operational testing at our Brendale workshop.

Key Features

• Designed specifically for the Fuso FGB71 GX
• Dedicated GX-only rear winch cradle
• 20,000lb rated pulling capacity
• Approximately 9,072kg single-line pulling capacity
• 12V electrical configuration
• 25m x 12mm synthetic winch rope
• Automatic load-holding brake
• Thermal overload protection
• Weather-sealed controls
• Sealed solenoid system
• Heavy-gauge 0 B&S positive and negative cabling
• 500A MEGA fuse protection
• Covered high-current fuse holder
• High-current distribution hardware
• Professionally fitted and electrically integrated by AAV4x4

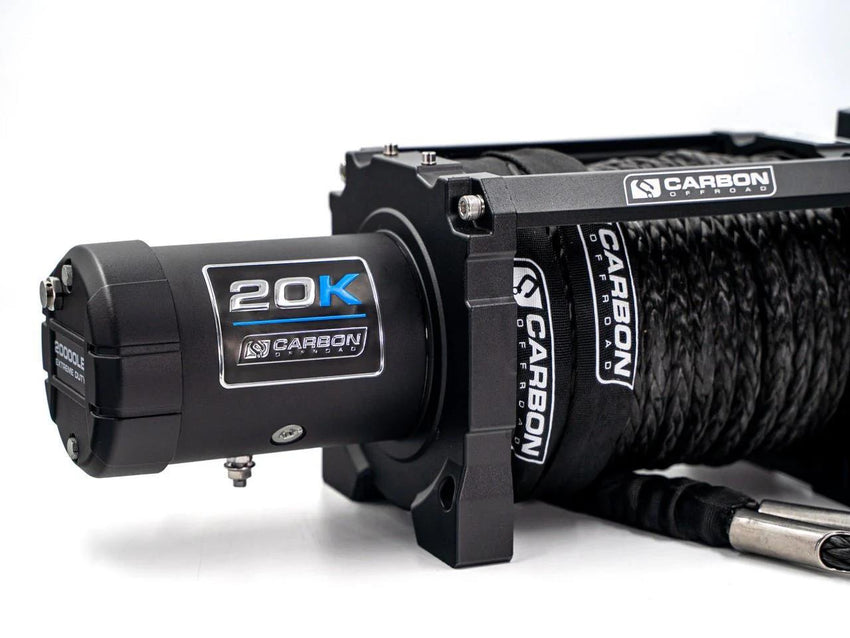

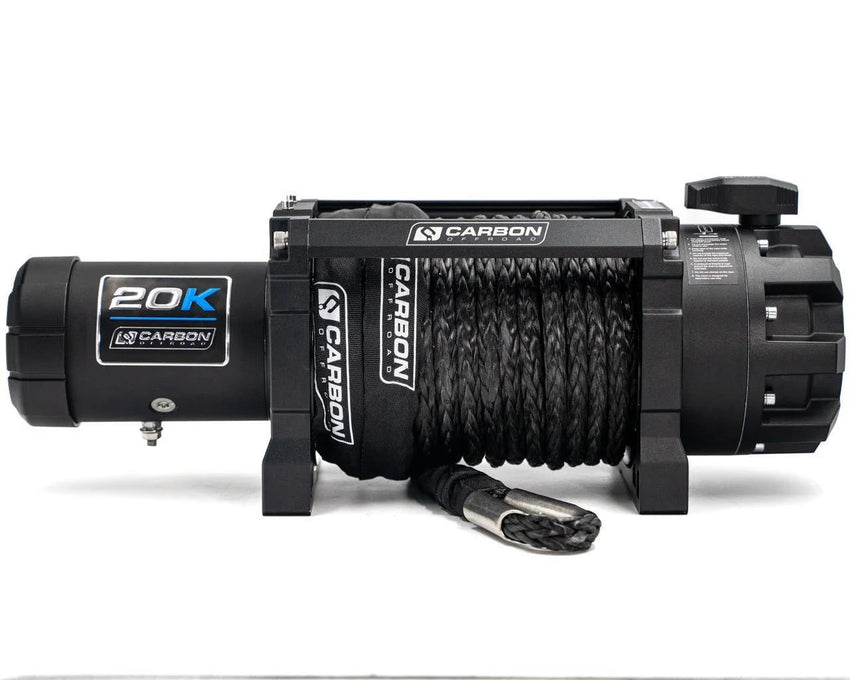

20,000lb Rear Recovery Winch

The installed winch carries a rated pulling capacity of 20,000lb, equivalent to approximately 9.1 tonnes of single-line pull.

This capacity is suited to the substantially greater vehicle mass associated with a completed GX truck-based motorhome compared with a conventional passenger 4WD.

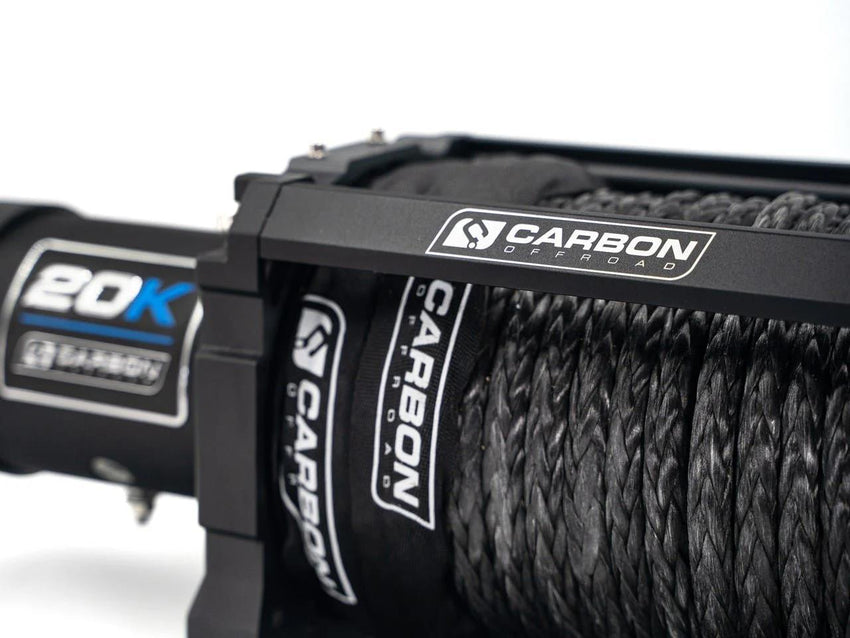

25m x 12mm Synthetic Rope

The current winch is supplied with 25 metres of 12mm synthetic recovery rope.

This current configuration replaces the older 21m wording previously used in the GX product title.

GX-Specific Rear Winch Cradle

A dedicated GX-only rear winch cradle forms part of the current package.

This provides the vehicle-specific mounting structure for the rear recovery winch rather than treating the winch as a universal loose installation.

Automatic Brake & Thermal Protection

The winch incorporates an automatic load-holding brake to help control the drum while the winch is holding a load.

Thermal overload protection is also incorporated to help protect the winch during demanding high-load operation.

Heavy-Current Electrical Installation

A winch of this capacity requires a substantial electrical supply.

The current GX installation includes approximately 7 metres each of 0 B&S positive and negative battery cable, together with dedicated high-current distribution hardware.

The installed circuit incorporates a 500A MEGA fuse and covered high-current fuse holder.

Professional AAV4x4 Installation

This is a fully fitted rear-winch package installed by AAV4x4.

Installation includes securing the GX-specific rear cradle, mounting the winch, completing the high-current positive and negative cabling, installing fuse protection and distribution hardware, checking cable routing and completing an operational test.

Specifications

Included

• 12V 20,000lb recovery winch
• 25m x 12mm synthetic winch rope
• GX-specific rear winch cradle
• Heavy-current 0 B&S positive and negative vehicle cabling
• 500A MEGA fuse
• Covered MEGA fuse holder
• Applicable high-current distribution hardware
• Professional mechanical and electrical installation by AAV4x4
• Post-installation operational testing

Important Notes

The winch component in the current Vision assembly uses 25m of synthetic rope; the older 21m wording in the root product title is no longer current.

Safe recovery practice, correctly rated recovery equipment and suitable recovery points remain essential whenever a vehicle winch is used.
