The Fuso GX 2011+ TrackMaster Suspension Kit is a GX-specific front-and-rear suspension package combining heavy-duty multi-leaf springs with four adjustable remote-canister shock absorbers.
The package includes front and rear heavy-duty multi-leaf spring assemblies, two front and two rear remote-canister shocks, replacement U-bolts and polyurethane bush components.
This version is supplied as a GX-specific unfitted kit. Installation labour is not included.
This kit uses front and rear heavy-duty multi-leaf spring assemblies configured specifically for the Fuso GX application.
It is a different spring package from the standard FGB71 TrackMaster kit and should be ordered only where the vehicle is the applicable GX configuration.
The kit contains four adjustable remote-canister shocks:
Each shock uses a 66mm heavy-duty mono-tube body and a 22mm hard-chrome-plated shaft.
The shock absorbers incorporate a three-stage sealing system around the shock-shaft assembly.

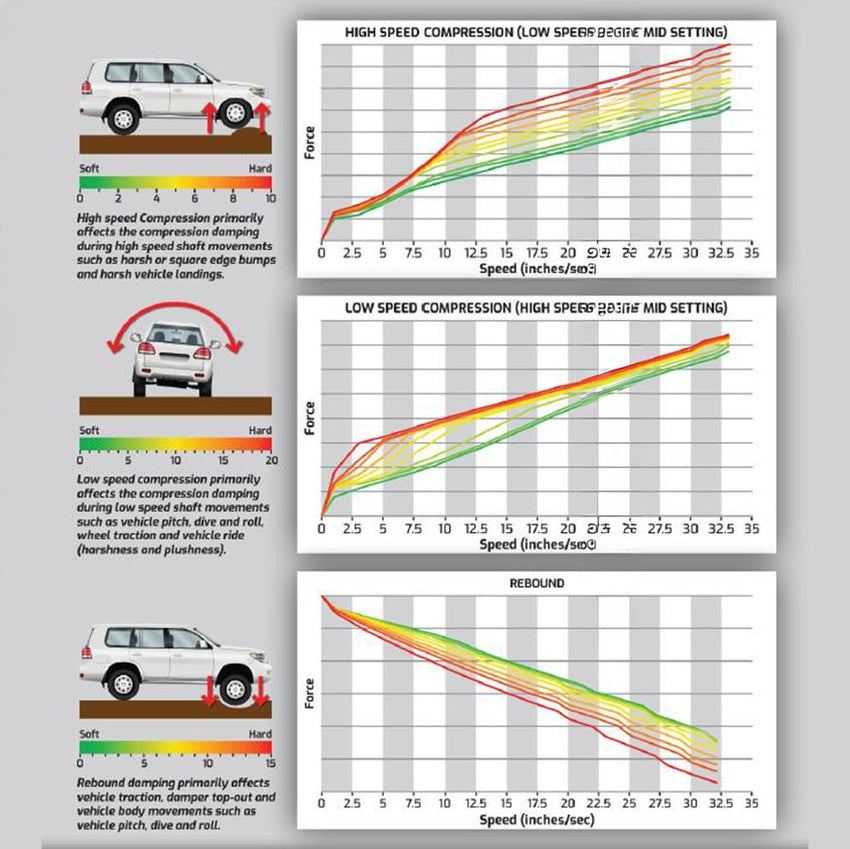

Rebound damping can be adjusted through 15 settings, allowing the shock response to be altered for different vehicle loads and operating conditions.
Each shock is connected by a braided high-pressure hose to a 60mm remote reservoir.
The reservoir provides separate compression adjustment with:
Together with the rebound adjustment, this provides independent damping adjustment across several aspects of shock operation.
The current TrackMaster GX package includes the applicable replacement U-bolts and polyurethane bush components supplied with the spring upgrade.
| Vehicle Application | Fuso GX 2011+ / applicable FGB71 GX |
|---|---|
| Front Springs | GX-specific heavy-duty multi-leaf |
| Rear Springs | GX-specific heavy-duty multi-leaf |
| Shock Quantity | 4 total – 2 front / 2 rear |
| Shock Construction | Heavy-duty mono-tube with remote reservoir |
| Shock Body | 66mm |
| Shock Shaft | 22mm hard-chrome plated |
| Sealing | 3-stage sealing system |
| Rebound Adjustment | 15 stages |
| Remote Reservoir | 60mm |
| High-Speed Compression | 10 stages |
| Low-Speed Compression | 20 stages |
| Installation | Supply only / unfitted |
This is the GX-specific suspension kit. Confirm the vehicle is the applicable Fuso GX configuration before ordering.
This product is supplied unfitted. Installation and wheel alignment are not included.
A custom front drive shaft is also not listed as part of this supply-only kit. The complete professionally fitted GX suspension package is a separate product.
