AAV4X4
SKU: 412017 Tray 1D+1W OEM TYR
Back Order - This item is currently out of stock and will be placed on back order if purchased
Order Item - This product may need to be assembled or ordered in depending on current stock. If components are available, it is usually ready within approximately 1-3 business days. We will contact you if there are any delays.

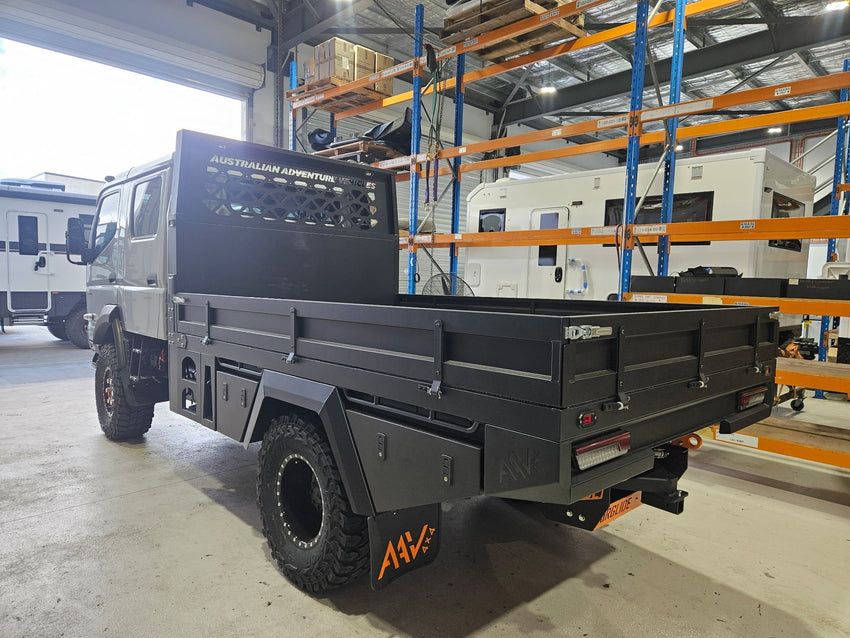

Complete fitted AAV4x4 tray and kinetic-subframe package for compatible Fuso FGB71 Dual Cab vehicles.
The package combines an alloy tray with a kinetic subframe, 200L auxiliary diesel tank and 190L water tank, while retaining the applicable spare wheel in its OEM position.
The package incorporates a dedicated 200L auxiliary diesel tank with the applicable sender, fuel-level display and electric transfer system for transferring diesel to the vehicle's OEM tank.
A custom 190L rear water tank provides onboard water storage. Its configuration is specifically designed to retain the applicable spare tyre in the OEM position.
The water system incorporates a 12V Seaflow pump, level monitoring and an external water outlet.

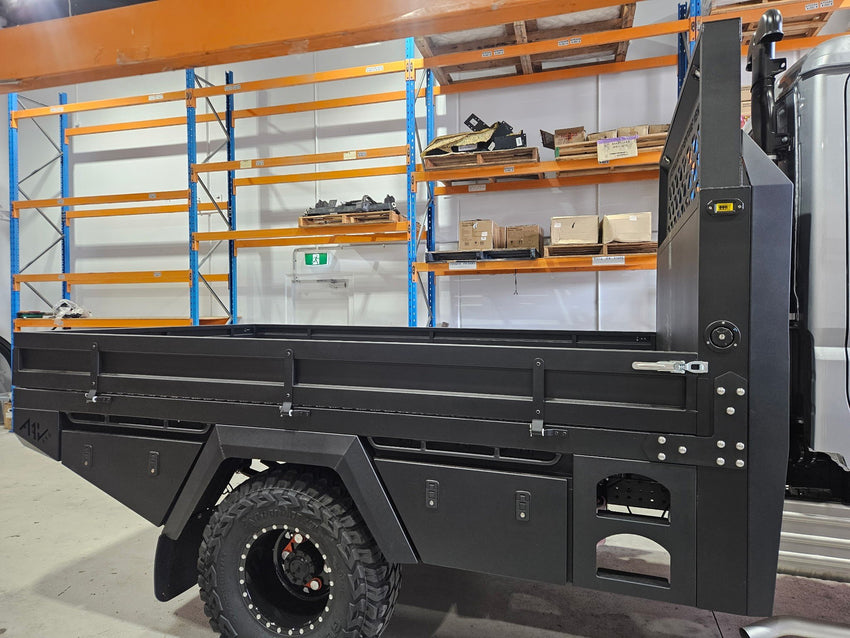

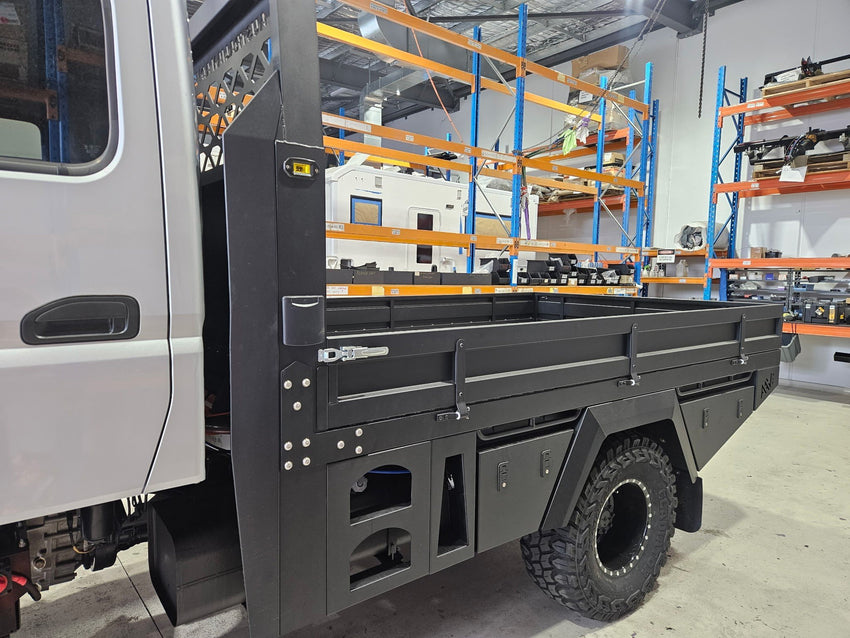

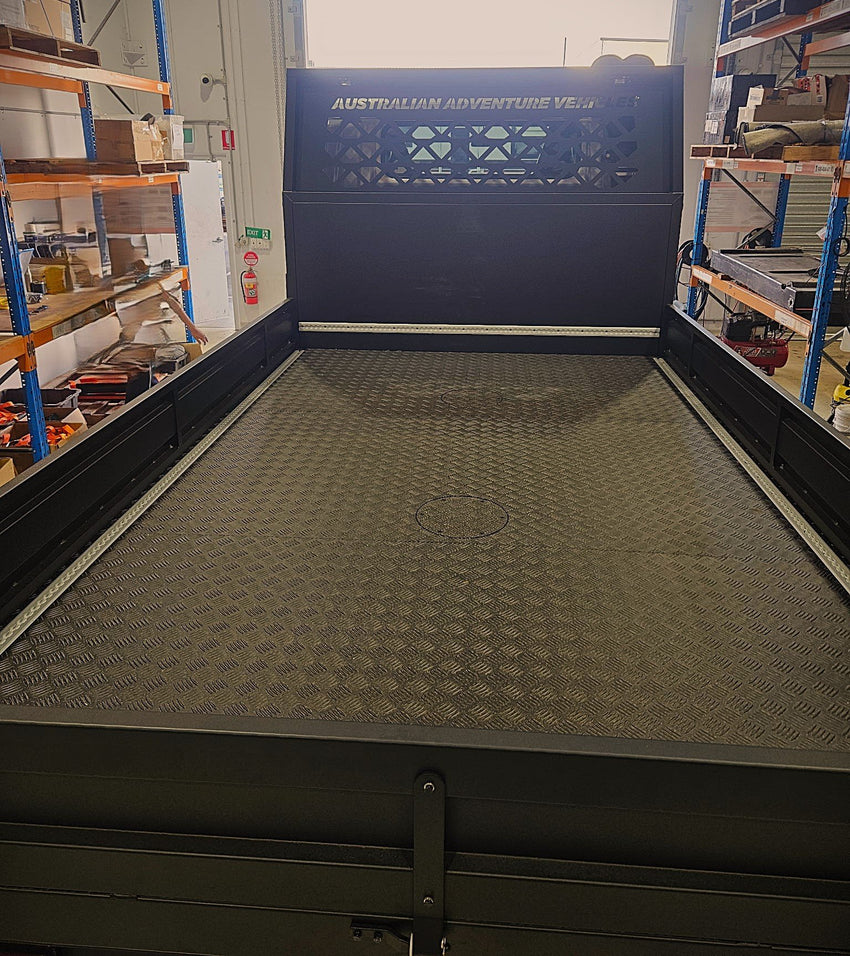

The Dual Cab alloy tray is approximately 3300mm long x 2050mm wide.
It incorporates three drop sides, multiple tie-down locations, an illuminated headboard and four lockable under-tray storage boxes.
The tray is mounted to the AAV4x4 kinetic-subframe system using the applicable spring-mounted chassis arrangement.
| Vehicle Application | Compatible Fuso FGB71 Dual Cab |
|---|---|
| Tray Construction | Alloy |
| Approximate Tray Size | 3300 x 2050mm |
| Diesel Capacity | 200L |
| Diesel Tank Size | Approx. 1315 x 688 x 360mm |
| Water Capacity | 190L |
| Water Tank Size | Approx. 1535 x 688 x 335mm |
| Water Pump | 12V Seaflow 22 Series, 5.0L/min |
| Spare Tyre | OEM position retained |
| Under-Tray Boxes | 4 x lockable alloy boxes |
| Drop Sides | 3 |
| Installation | Professionally fitted by AAV4x4 |
