AAV4X4
SKU: AU326139
Back Order - This item is currently out of stock and will be placed on back order if purchased
Pickup available at AAV 4x4
Usually ready in 24 hours

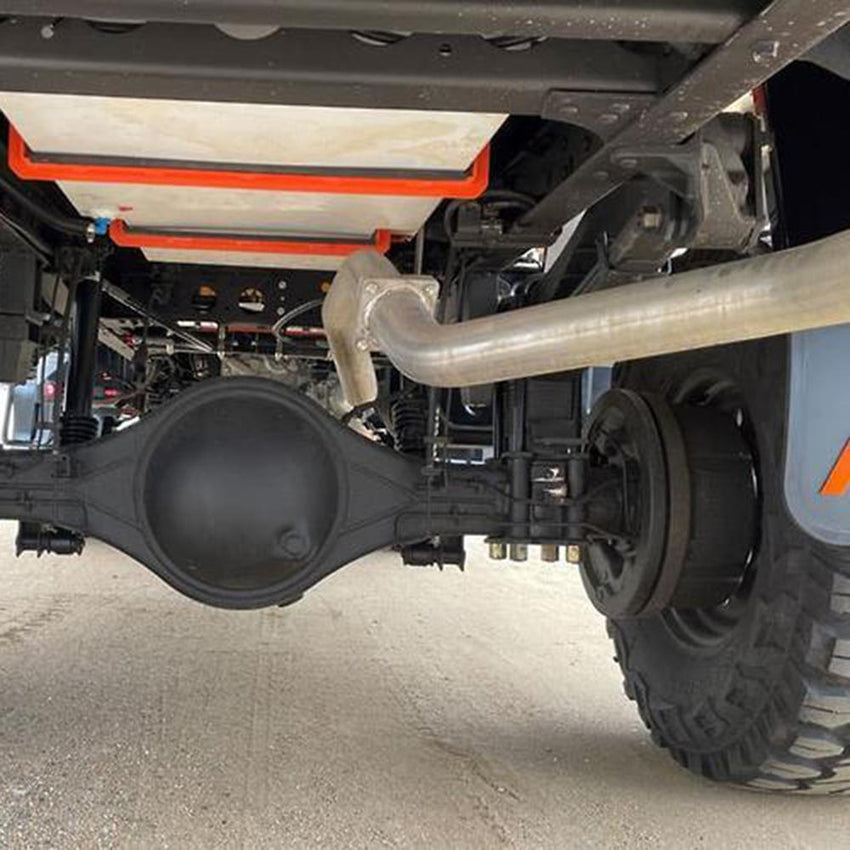

This Fuso FGB71 3-inch exhaust system is the AAV4x4 Version 1 configuration designed for compatible vehicles using a rear-mounted spare-tyre arrangement.
The system is identified in the current product configuration as 441 stainless steel and incorporates fabricated TIG-welded joints, stainless mounting brackets, V-band connections and a hot-dog-style muffler.
This product is supplied unfitted. Vehicle installation, exhaust heat wrap and any additional vehicle-specific components required for a particular installation are not included unless separately specified.
This Version 1 exhaust is specifically identified for an FGB71 configuration using a rear-mounted spare tyre.
Exhaust routing and final tailpipe requirements can vary with the completed vehicle layout, so the exact vehicle configuration should be confirmed before installation.
The system uses 3-inch exhaust pipework throughout the applicable fabricated assembly.
The exhaust incorporates a compact hot-dog-style muffler as part of the system rather than using the standard Fuso exhaust layout unchanged.
The current AAV4x4 product is identified as a 441 stainless steel exhaust system.
Stainless mounting brackets are incorporated with the fabricated exhaust assembly.
The fabricated exhaust uses TIG-welded joints at the applicable pipe connections.
This provides a purpose-built exhaust assembly shaped around the supported FGB71 installation rather than a universal collection of loose exhaust sections.
V-band connections are used at the applicable detachable joints in the exhaust system.
A hot-dog-style muffler forms part of the supplied exhaust assembly.
| Vehicle Application | Compatible Fuso FGB71 |
|---|---|
| Configuration | Version 1 rear-mount spare tyre exhaust |
| Exhaust Diameter | 3 inch |
| Material | 441 stainless steel |
| Joint Construction | TIG welded |
| Joining System | V-band connections |
| Muffler | Hot-dog-style muffler |
| Installation | Supply only / unfitted |
This Version 1 exhaust must not be assumed compatible with the newer Euro 6 Fuso FGB71. The current product record identifies that redesign is required for the Euro 6 vehicle platform.
Confirm the exact FGB71 model, production version, exhaust arrangement and spare-tyre configuration before ordering.
This product is supplied unfitted. Installation labour is not included.
