Monitor tyre pressure and temperature directly from the driver's seat with the AAV4x4 5 or 6 Wheel Tyre Pressure Monitoring System, supplied and professionally installed by AAV4x4.
The system uses internally mounted wheel senders together with a dedicated AAV4x4-branded cabin display. Pressure and temperature information are presented together on one screen, allowing the driver to monitor multiple tyres while travelling.
Operator-adjustable warning thresholds provide alerts for low tyre pressure, high tyre pressure and high tyre temperature, helping identify developing tyre issues before they become more serious.
This listing includes the TPMS hardware together with professional mechanical and auto-electrical installation by AAV4x4 at our Brendale workshop.
The cabin receiver provides a central display for the monitored wheel positions, allowing tyre information to be checked without leaving the driver's seat.
Each monitored tyre provides both pressure and temperature information. Monitoring both values can provide useful additional information about changing tyre conditions during highway driving, towing, touring and off-road use.
The display incorporates a vehicle-position graphic alongside the individual readings, helping the driver associate each reading with the corresponding monitored wheel position.
Warning thresholds can be configured for:
This allows the system to be configured around the tyre pressures appropriate to the vehicle, tyres, load and intended operating conditions rather than relying solely on a generic fixed pressure value.

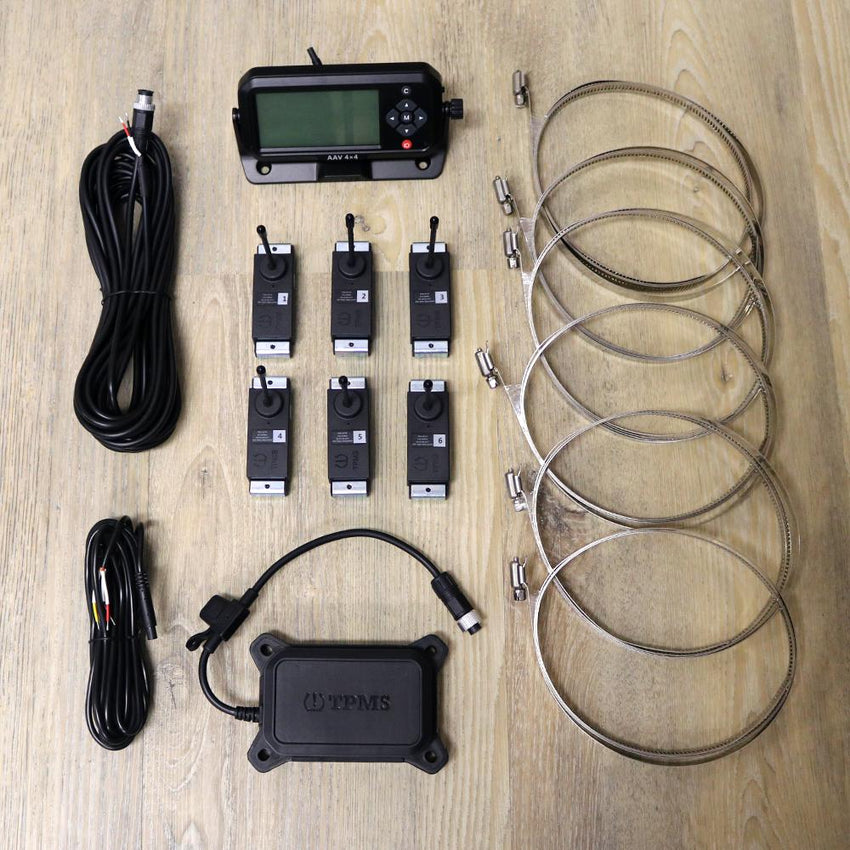

The TPMS senders are mounted inside the wheel assembly rather than being attached externally to the valve stems.
Internal mounting keeps the sender hardware away from direct exposure to mud, dust, rocks and other external conditions commonly encountered by touring and off-road vehicles.
The sender modules are individually numbered so the monitored wheel positions can be identified correctly during installation and system setup.
The internal sender modules are secured to compatible wheel rims using stainless steel mounting bands and clamps.
During the fitted installation, the senders are positioned and secured to the appropriate monitored wheels before the receiver system is configured for the vehicle.

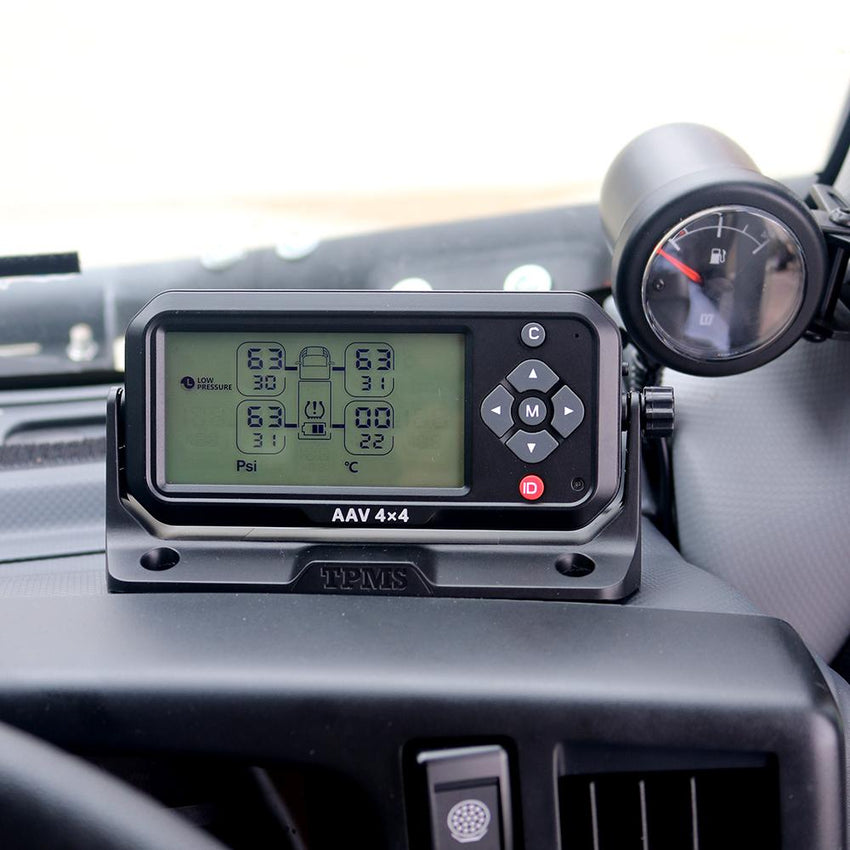

The system includes a dedicated AAV4x4-branded receiver with a clear digital display and physical controls for system setup and operation.
As part of this fitted package, the receiver is positioned within the vehicle cabin, securely mounted and electrically connected by AAV4x4.
Final receiver position is selected to provide practical driver visibility while taking the individual dashboard layout and surrounding controls into consideration.
This listing is for a fully fitted TPMS package installed by AAV4x4 at our Brendale workshop.
Installation includes:
A TPMS is particularly useful on touring and expedition vehicles where tyre pressures may be changed for different surfaces, loads and operating conditions.
Continuous pressure and temperature information provides the driver with a convenient way to identify changes while travelling rather than relying only on periodic manual tyre checks.
| Product Type | Fitted tyre pressure and temperature monitoring system |
|---|---|
| Wheel Configuration | 5 or 6 monitored wheels |
| Monitored Parameters | Tyre pressure and tyre temperature |
| Pressure Display | PSI |
| Temperature Display | °C |
| Sender Type | Internally mounted wheel senders |
| Sender Mounting | Stainless steel rim bands and clamps |
| Warnings | Operator-set low pressure, high pressure and high temperature |
| Receiver | AAV4x4-branded cabin display |
| Installation | Professionally fitted by AAV4x4 at Brendale |
This listing is for the TPMS supplied and professionally fitted by AAV4x4.
Warning thresholds should be configured to suit the particular vehicle, tyre specification, load and intended operating conditions.
Tyre pressure monitoring is an additional driver aid and does not replace regular tyre inspections, manual pressure checks or normal tyre maintenance.
