This supply-only towbar electrical kit provides the components required to connect compatible trailer road lighting to a Fuso FGB71.

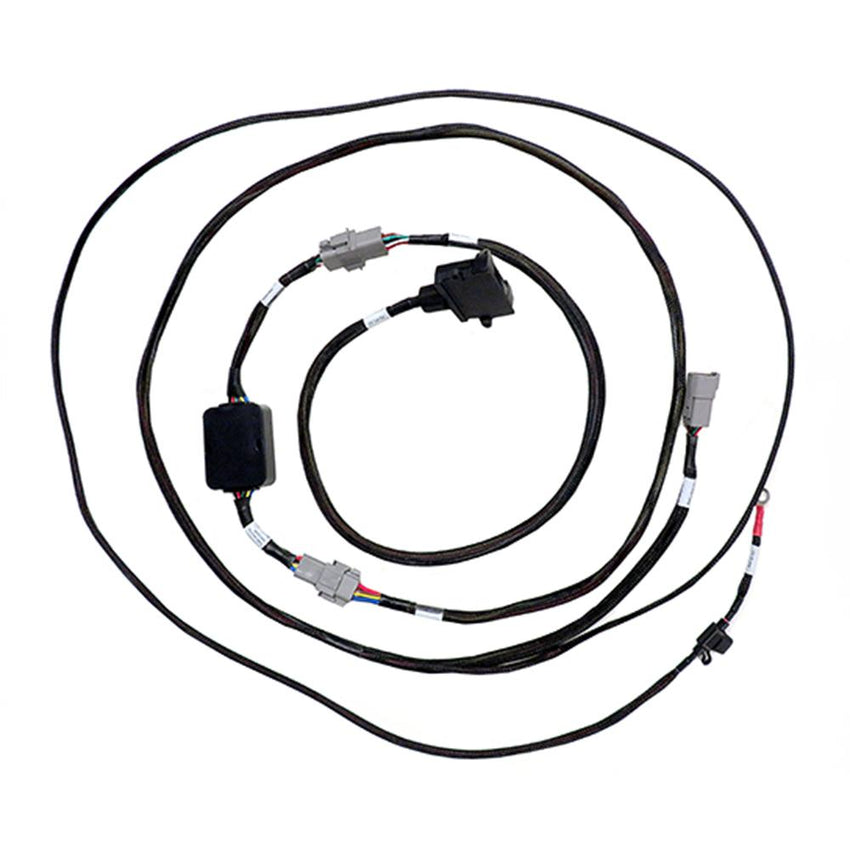

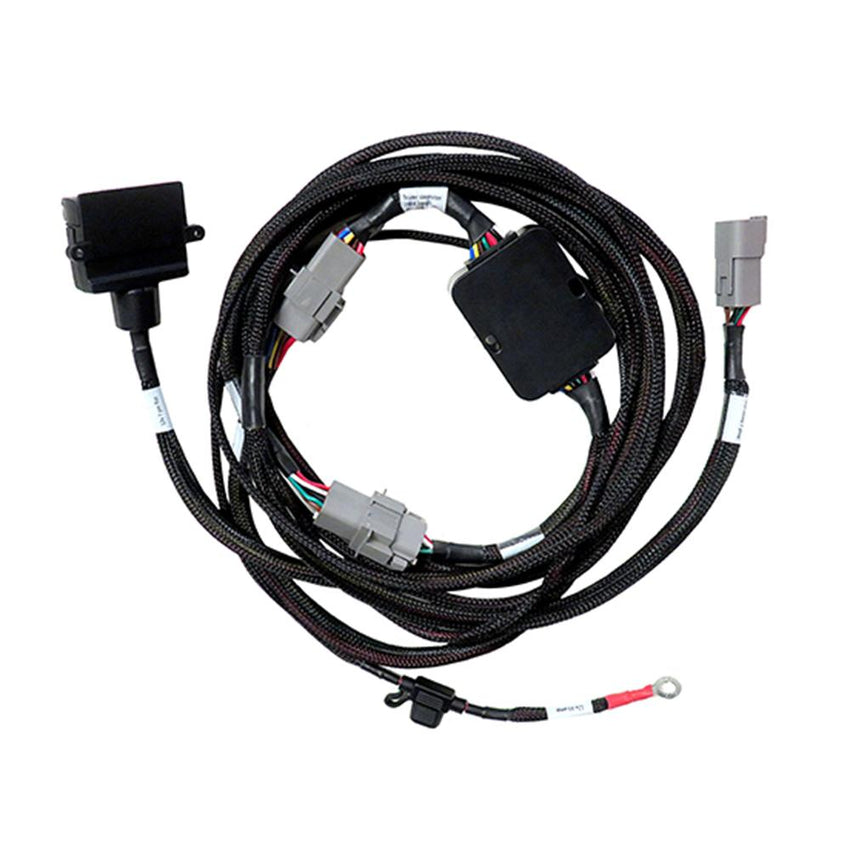

The package combines a Fuso-specific plug-in light-adaptor loom, a 12/24V trailer-light interface module and a 7-pin flat trailer socket. Its plug-in, no-solder design provides a cleaner alternative to a basic universal cut-and-splice trailer-wiring installation.
The electronic interface receives the relevant vehicle lighting signals and provides the corresponding outputs for the trailer socket without applying the full trailer-lighting load directly to the Fuso’s original lamp circuits.
This product is supplied unfitted.

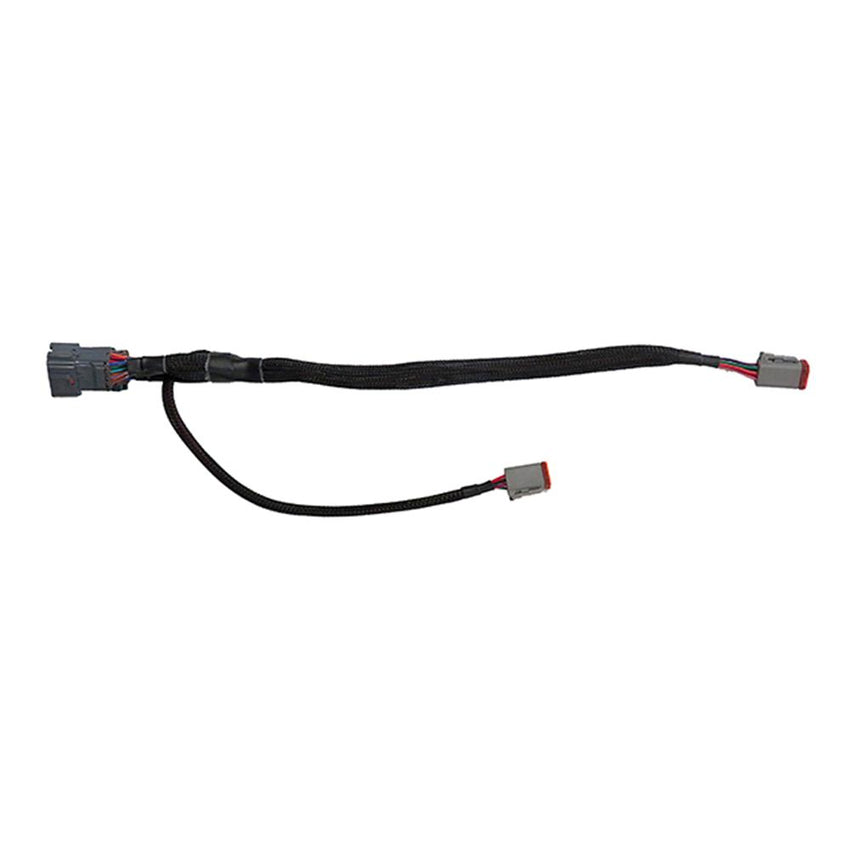

The supplied light-adaptor T-loom is designed to connect to the compatible Fuso lighting system using the vehicle’s existing wiring connections.
This plug-in arrangement reduces the need to cut or solder the original vehicle wiring and provides a cleaner, more serviceable installation.
The electronic interface module monitors the applicable vehicle lighting signals and switches the corresponding trailer-light circuits.
This allows compatible trailer lamps to operate without placing their full electrical load directly onto the original vehicle lighting circuits. It is particularly useful where the vehicle uses electronic control or monitoring of its exterior lamps.
The included interface is suitable for compatible 12V and 24V vehicle electrical systems.
The kit includes an Australian-style 7-pin flat socket for connection to a compatible trailer plug.
Depending on the completed vehicle and trailer wiring configuration, the socket may provide connections for applicable functions including:
The final pin configuration must be confirmed against the connected trailer before use.
The kit is designed around a plug-in loom rather than a universal wiring harness requiring extensive modification of the vehicle’s original circuits.
Benefits of the plug-in arrangement include:
The kit must be installed with the wiring securely routed and protected against sharp edges, abrasion, excessive heat and moving vehicle components.
The interface module should be mounted in a suitable protected location, while the 7-pin socket should be positioned where it is accessible for trailer connection without being exposed to unnecessary impact or damage.
All trailer-lighting outputs, earth connections and socket functions must be tested after installation.
| Product | Fuso FGB71 Towbar Electrical Loom Kit |
|---|---|
| Vehicle application | Compatible Fuso FGB71 vehicles |
| Trailer connection | 7-pin flat socket |
| Vehicle connection | Fuso-specific plug-in light-adaptor T-loom |
| Loom type | Plug-in, no-solder wiring kit |
| Trailer-light interface | Electronic 12/24V trailer adaptor module |
| Primary function | Integration of compatible trailer road lighting with the Fuso electrical system |
| Installation | Supplied unfitted |
This product is supplied unfitted and includes the towbar electrical components only. A physical towbar, hitch, towball and trailer-brake controller are not included.
Additional equipment may be required for electric trailer brakes, auxiliary charging circuits, electronic trailer-stability systems or other specialised trailer functions.
The trailer plug and wiring configuration must be checked before connection. Incorrectly wired or damaged trailer electrics may cause faults in the vehicle or trailer lighting system.
