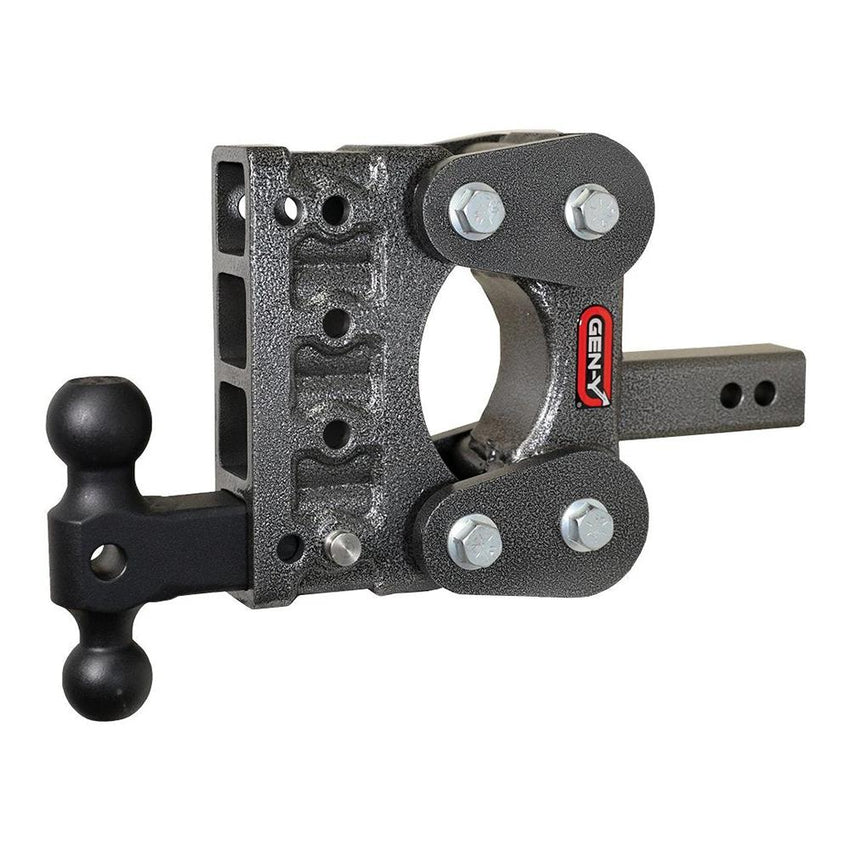

Gen-Y 5" Drop 4500 Kg Torsion-Flex Hitch & Versa-Ball 50&70Mm

The Gen-Y 5" Drop 4500kg Torsion-Flex Hitch with Versa-Ball (50mm & 70mm) is a premium heavy-duty towing system that combines Gen-Y's patented Torsion-Flex Technology with the versatility of an integrated 50mm and 70mm Versa-Ball. Designed and manufactured in the USA, this adjustable hitch delivers exceptional towing comfort while allowing quick changeover between two common tow ball sizes without changing ball mounts.

Rated to tow up to 4,500kg with a maximum 500kg tongue weight, this hitch is ideal for operators who regularly tow different trailers. The 5" drop configuration and four adjustable height positions make it easy to achieve a level towing setup, while the Torsion-Flex suspension helps reduce harsh impacts transferred between the tow vehicle and trailer.

Features

• Maximum towing capacity: 4,500kg
• Maximum tongue weight: 500kg
• 5" drop configuration
• Four adjustable height positions
• Class IV 2" receiver shank
• Integrated Versa-Ball with both 50mm and 70mm tow balls
• Patented Torsion-Flex rubber suspension system
• Heavy-duty fabricated steel construction
• Precision-machined components
• Two heavy-duty 1" Grade 8 pivot bolts
• Includes two hitch pins
• Made in the USA

Patented Torsion-Flex Technology

Unlike conventional rigid drop hitches, the Gen-Y Torsion-Flex Hitch incorporates heavy-duty rubber torsion cords inside the hitch body. These absorb a significant amount of the vertical shock and impact generated while towing, helping isolate both the tow vehicle and trailer from harsh road conditions.

Rather than every bump and corrugation being transferred directly through the drawbar, the hitch allows both the tow vehicle and trailer to react more independently. This creates a more composed towing experience, particularly on rough roads and long-distance journeys.

Benefits of Torsion-Flex Suspension

• Helps reduce shock transfer between the tow vehicle and trailer
• Reduces harsh vibration through the towing combination
• Assists with smoother towing over uneven road surfaces
• May reduce wear on trailer components and cargo
• Improves towing comfort during long trips
• Allows the tow vehicle and trailer suspension to work more independently
• Can help minimise driver fatigue during extended towing

Versa-Ball Convenience

The supplied Versa-Ball features both a 50mm and 70mm tow ball in one interchangeable assembly. Simply rotate the ball mount to the required size, eliminating the need to carry multiple ball mounts when towing different trailers.

This makes the hitch an excellent choice for operators who regularly switch between caravans, heavy equipment trailers, horse floats, agricultural trailers or commercial equipment that require different coupling sizes.

Adjustable Height

The four-position adjustable design allows the hitch height to be matched to different trailer drawbar heights. A level trailer promotes improved weight distribution, better braking characteristics and more predictable towing behaviour.

Heavy-Duty Construction

Manufactured from heavy-duty fabricated steel with precision-machined components and Grade 8 hardware, the Gen-Y Torsion-Flex Hitch is engineered for demanding recreational, agricultural and commercial towing applications. The rubber torsion system is fully enclosed within the hitch body and requires virtually no routine maintenance.

Ideal Applications

• Heavy caravans
• Camper trailers
• Horse floats
• Machinery and plant trailers
• Boat trailers
• Agricultural equipment
• Commercial towing fleets
• Operators towing multiple trailer types

Specifications

• Maximum towing capacity: 4,500kg
• Minimum trailer weight for Torsion-Flex operation: 180kg
• Ideal tongue weight: 180–370kg
• Maximum tongue weight: 500kg
• Receiver size: Class IV 2"
• Drop: 5"
• Adjustable positions: 4
• Ball sizes: 50mm and 70mm Versa-Ball
• Hitch weight: Approximately 31.7kg
• Construction: Heavy-duty fabricated steel
• Country of manufacture: USA

Maintenance

The Torsion-Flex Hitch is designed to require minimal maintenance. There are no airbags to inflate or bearings requiring routine servicing. During the first few hundred kilometres of towing with an appropriate trailer load, the internal rubber torsion elements naturally settle into their intended operating characteristics.

Important: Always ensure the tow vehicle, receiver, trailer coupling and every component of the towing system are correctly rated for the intended load. The maximum legal towing capacity of the complete towing combination is determined by the lowest-rated component.
