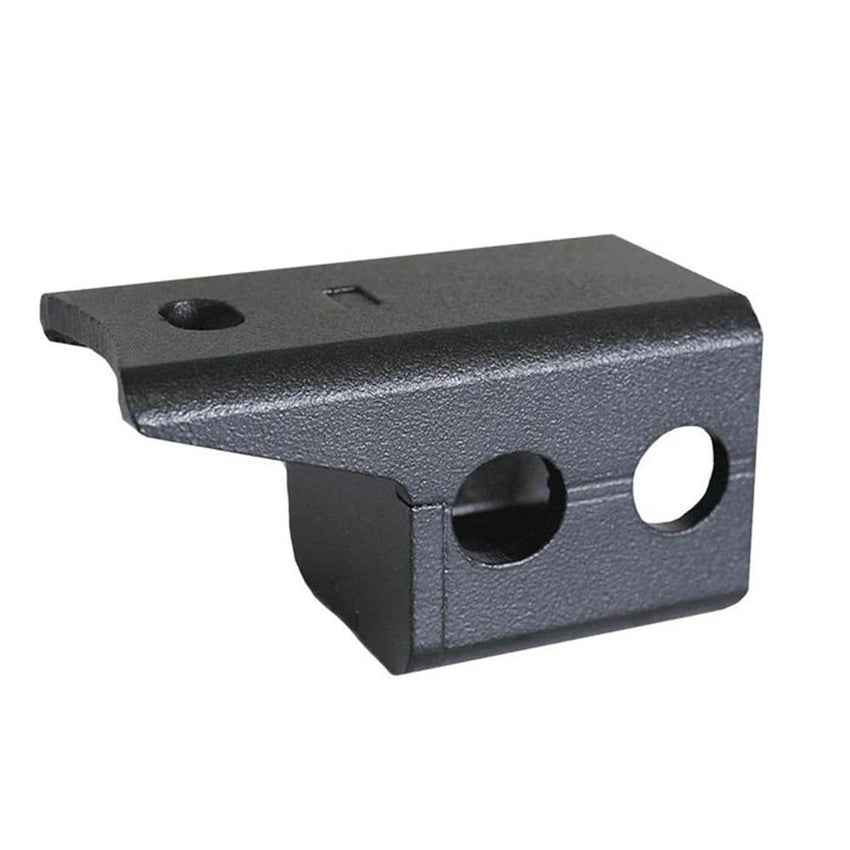

Gen-Y 2" Pintle Lock For 2" 4000 7000 Kg Ball Combos

The Gen-Y 2" Pintle Lock is a genuine Gen-Y accessory designed to convert compatible 4,000kg and 7,000kg Gen-Y adjustable hitch ball combinations into a versatile pintle hitch. Designed specifically for Gen-Y hitches with stacked 2-inch receivers, this heavy-duty attachment allows trailers fitted with a lunette ring to be safely connected while retaining your existing ball mount.

Manufactured from heavy-duty steel and finished for long-term durability, the Pintle Lock installs quickly into the upper receiver of compatible Gen-Y hitches using the existing hitch pin. It provides a simple and economical way to expand the capabilities of your hitch without purchasing a dedicated pintle hitch assembly.

Features

• Genuine Gen-Y Hitch accessory
• Designed for compatible 4,000kg and 7,000kg Gen-Y adjustable hitches with stacked 2" receivers
• Converts compatible Gen-Y hitches for use with lunette ring trailers
• Works in conjunction with the existing ball mount
• Heavy-duty steel construction
• Durable corrosion-resistant finish
• Quick and simple installation
• Made in the USA
• Limited lifetime warranty

Why Use a Pintle Hitch?

Pintle hitches are commonly used in military, agricultural, mining, construction and heavy commercial applications where maximum strength and articulation are required. Instead of using a conventional tow ball and coupling, a pintle hitch connects to a heavy-duty lunette ring, allowing significantly greater movement between the tow vehicle and trailer.

This increased articulation makes pintle hitches particularly well suited to rough tracks, steep driveways, uneven work sites and off-road conditions where the trailer and tow vehicle regularly twist independently.

Benefits of Adding a Pintle Lock

• Allows towing of trailers fitted with a lunette ring
• Provides greater articulation than a conventional ball coupling
• Ideal for off-road, agricultural and commercial applications
• Converts your compatible Gen-Y hitch into a more versatile towing system
• Quickly installs or removes when your towing requirements change
• Eliminates the need for a separate dedicated pintle hitch

Retain Your Existing Ball Hitch

One of the key advantages of the Gen-Y Pintle Lock is that it works alongside your existing compatible Gen-Y hitch. Rather than replacing your current hitch assembly, the Pintle Lock simply slides into the upper receiver and secures above the existing ball mount.

This allows a single hitch to accommodate both conventional ball-coupled trailers and trailers fitted with lunette rings, making it an excellent solution for operators with a varied fleet of trailers.

Ideal Applications

• Military trailers
• Agricultural equipment
• Construction trailers
• Mining and industrial equipment
• Off-road trailers
• Heavy-duty commercial trailers
• Recovery and service vehicles

Compatibility

• Compatible with Gen-Y 4,000kg adjustable hitch ball combinations with stacked 2" receivers
• Compatible with Gen-Y 7,000kg adjustable hitch ball combinations with stacked 2" receivers
• Designed for trailers fitted with a lunette ring
• Not designed for installation directly into a standard 2" vehicle receiver

Specifications

• Product: Gen-Y Pintle Lock
• Compatibility: Gen-Y 4,000kg and 7,000kg adjustable hitch ball combinations with stacked 2" receivers
• Construction: Heavy-duty steel
• Finish: Corrosion-resistant coating
• Country of Manufacture: USA

Important: This Pintle Lock is designed exclusively for compatible Gen-Y adjustable hitch systems with stacked 2-inch receivers. It is not intended for direct installation into a standard vehicle receiver. Always ensure all towing components are correctly rated and installed in accordance with the manufacturer's recommendations.
