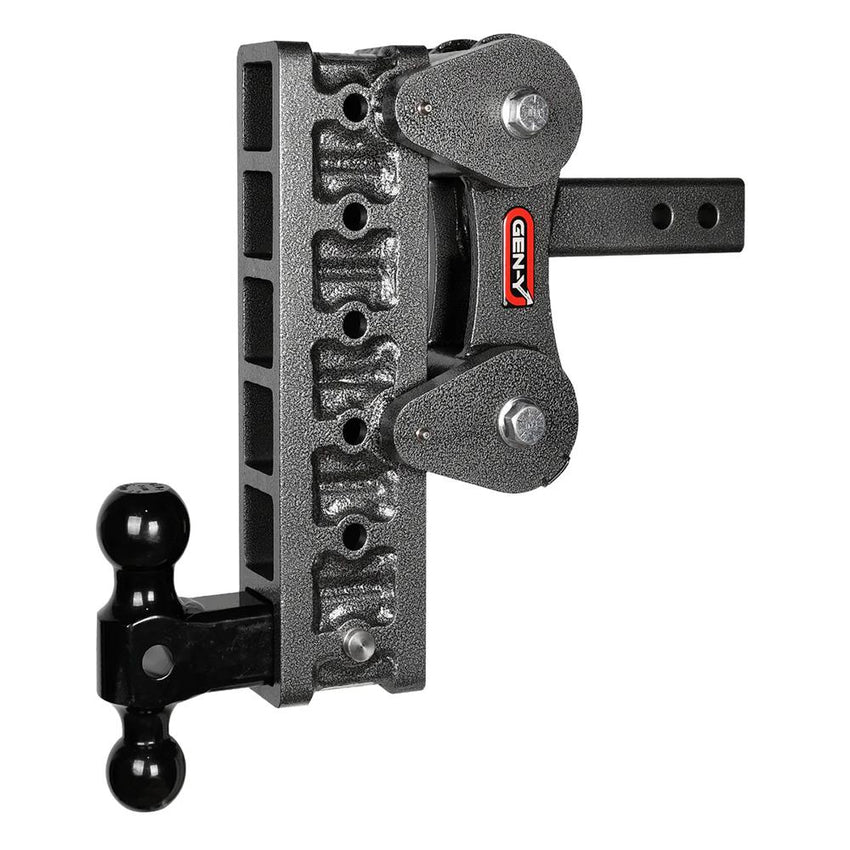

Gen-Y 10" Drop 4500 Kg Torsion-Flex Hitch & Versa-Ball 50&70Mm

The Gen-Y 10" Drop 4500kg Torsion-Flex Hitch with 50mm/70mm Versa-Ball is a premium heavy-duty towing system designed to deliver greater towing stability, improved ride quality and enhanced vehicle control. Manufactured in the USA, this adjustable hitch combines Gen-Y's patented Torsion-Flex technology with the convenience of a dual-size Versa-Ball, allowing you to tow trailers fitted with either a 50mm or 70mm ball coupling without changing ball mounts.

Rated to tow up to 4,500kg with a maximum 500kg tongue weight, this hitch is ideal for heavy caravans, expedition trailers, horse floats, equipment trailers and other demanding towing applications. This version features the 10-inch drop body with six adjustable height positions and is supplied with the 50mm/70mm Versa-Ball. :contentReference[oaicite:0]{index=0}

Features

• Maximum towing capacity: 4,500kg
• Maximum tongue weight: 500kg
• 10" drop model with 6 adjustable height positions
• Supplied with a 50mm/70mm Versa-Ball
• 2" Class IV receiver shank
• Patented Torsion-Flex rubber suspension system
• Heavy-duty fabricated steel construction
• Precision machined and drilled components
• Simple one-pin height adjustment
• Includes two hitch pins
• Made in the USA

Torsion-Flex Suspension Technology

Unlike a conventional rigid hitch that transfers every bump, pothole and expansion joint directly between the trailer and tow vehicle, the Gen-Y Torsion-Flex Hitch incorporates heavy-duty rubber torsion cords that absorb much of the impact energy before it reaches either vehicle.

According to Gen-Y, only around 10% of trailer inertia is transferred through the hitch, compared with a conventional rigid hitch where virtually all shock loads are transmitted directly into both the tow vehicle and trailer. This creates a noticeably smoother towing experience while improving overall control. :contentReference[oaicite:1]{index=1}

Benefits of a Torsion-Flex Hitch

• Creates a significantly smoother towing experience
• Reduces harsh shock transfer between trailer and tow vehicle
• Helps minimise trailer sway
• Allows the tow vehicle and trailer to react more independently to road irregularities
• Improves stability over potholes, bridge joints and uneven road surfaces
• Promotes more controlled braking behaviour
• Reduces driver fatigue during long-distance towing
• Helps reduce vibration transferred to cargo and trailer contents
• May contribute to reduced tyre wear and improved fuel economy by minimising bouncing and shock loading

Why Choose a Gen-Y Hitch?

Heavy trailers generate considerable dynamic loads as they travel over uneven roads. With a conventional rigid hitch, those impacts are transmitted directly between the tow vehicle and trailer, increasing stress on suspension components, tow bars, chassis and trailer contents.

The patented Torsion-Flex system is designed to absorb much of this energy before it reaches the towing combination. The result is a smoother, more controlled towing experience with less vibration and improved comfort for both vehicle occupants and the equipment being transported. :contentReference[oaicite:2]{index=2}

Advantages of the Versa-Ball

The included Versa-Ball provides both 50mm and 70mm tow ball sizes in a single attachment, making it easy to tow different trailers without changing ball mounts.

• Suitable for trailers requiring a 50mm tow ball
• Suitable for trailers requiring a 70mm tow ball
• Quickly adapts to different trailer couplings
• Reduces the need to carry multiple ball mounts
• Maintains the full adjustability of the Gen-Y hitch system

What Happens Without One?

A conventional rigid hitch transfers virtually every bump and road shock directly between the tow vehicle and trailer. This increases vibration throughout the towing combination and can contribute to a harsher ride for both occupants and cargo.

The Gen-Y Torsion-Flex Hitch is specifically engineered to reduce these forces, providing greater comfort and control when towing over a wide variety of road conditions. :contentReference[oaicite:3]{index=3}

Product Specifications

• Maximum towing capacity: 4,500kg
• Ideal tongue weight: 180–330kg
• Minimum tongue weight for Torsion-Flex operation: 180kg
• Maximum tongue weight: 500kg
• Hitch weight: 31.7kg
• 2" Class IV receiver shank
• 10" drop
• Six adjustable height positions
• Heavy-duty fabricated steel construction
• Heavy-duty rubber Torsion-Flex cords
• Two 1" Grade 8 steel pivot bolts
• 50mm/70mm Versa-Ball included

Maintenance

The Torsion-Flex Hitch is designed to be virtually maintenance free. There are no airbags to inflate or adjust, and no bearings requiring routine servicing or replacement.

Warranty

• 5-year warranty on moving parts
• Lifetime warranty on all remaining components

Important: Never exceed the towing, tongue weight or receiver ratings specified by the vehicle manufacturer, trailer manufacturer or tow coupling manufacturer. The maximum allowable towing capacity is always limited by the lowest-rated component in the complete towing system. :contentReference[oaicite:4]{index=4}
