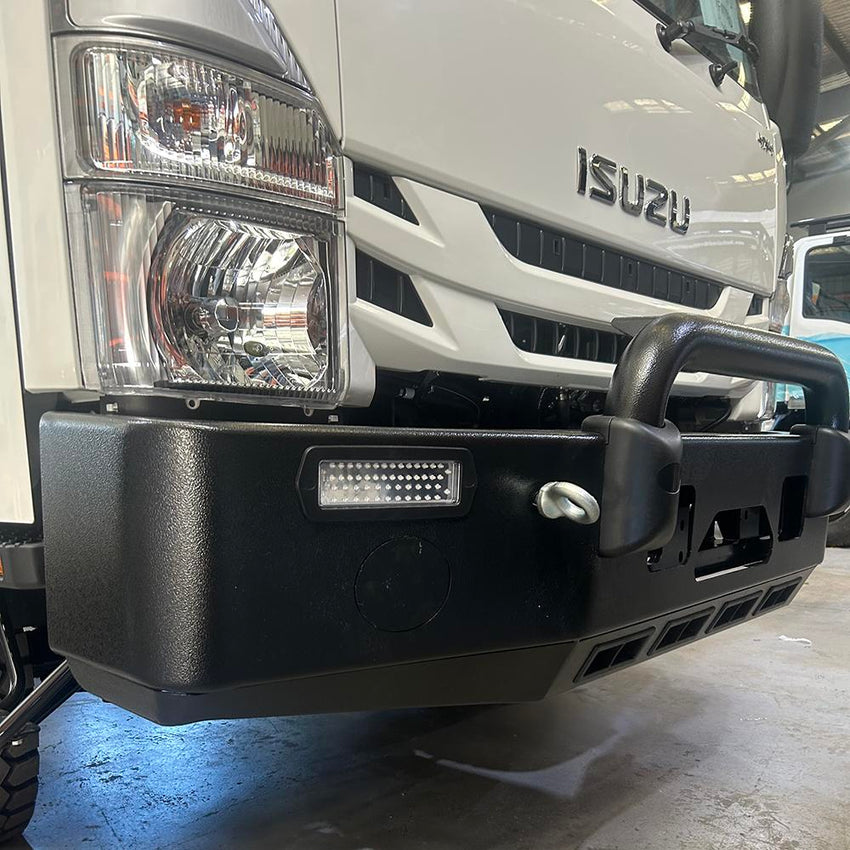

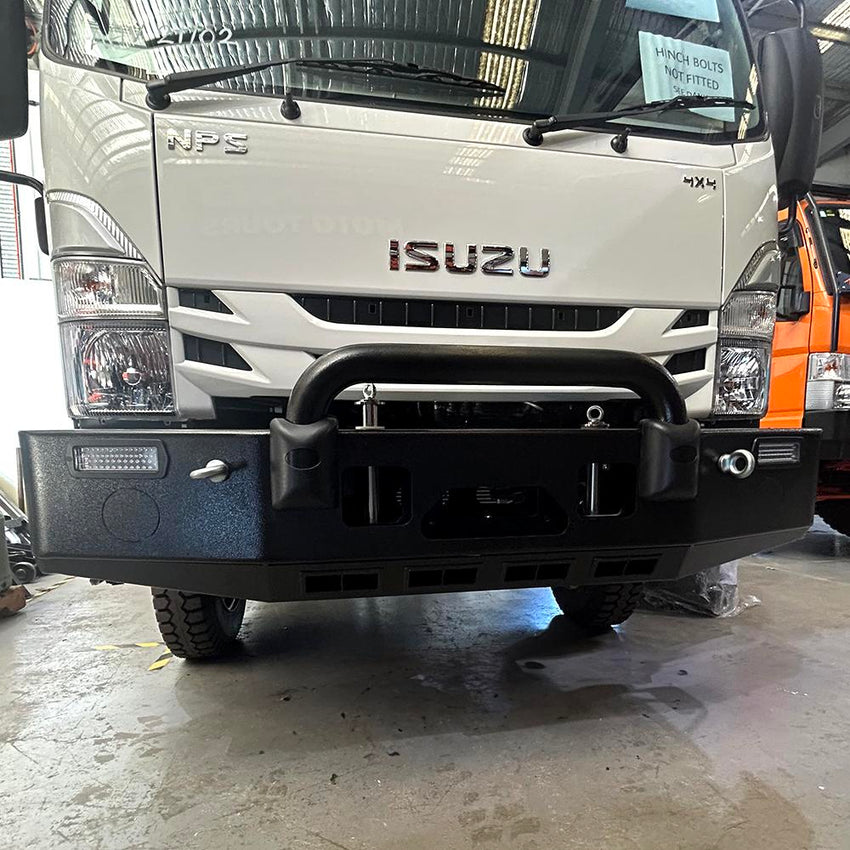

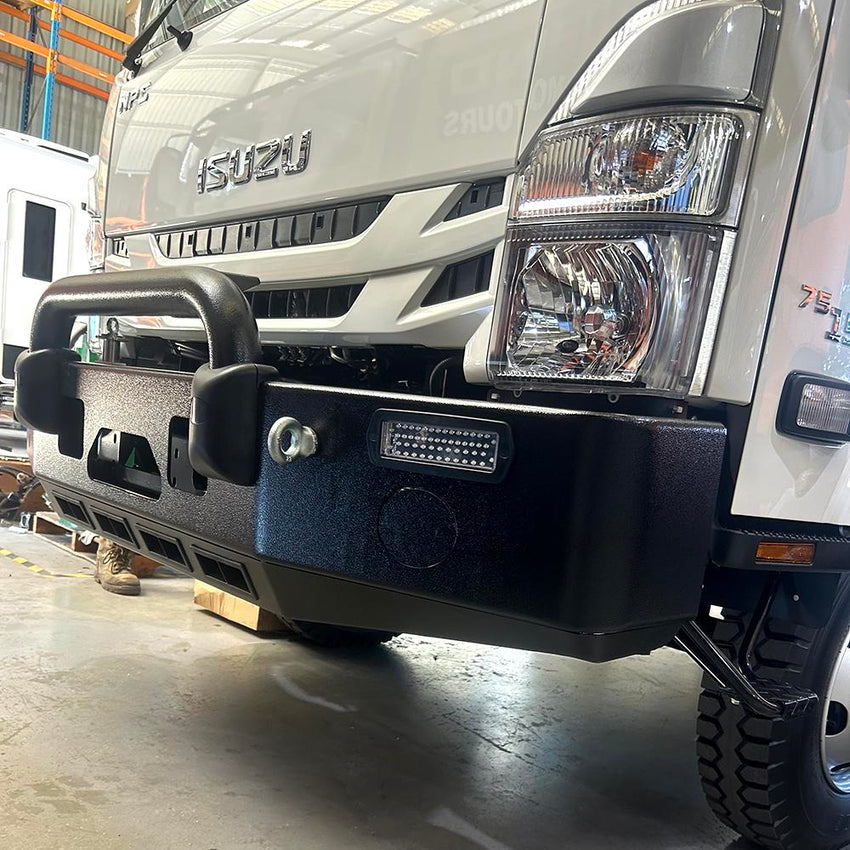

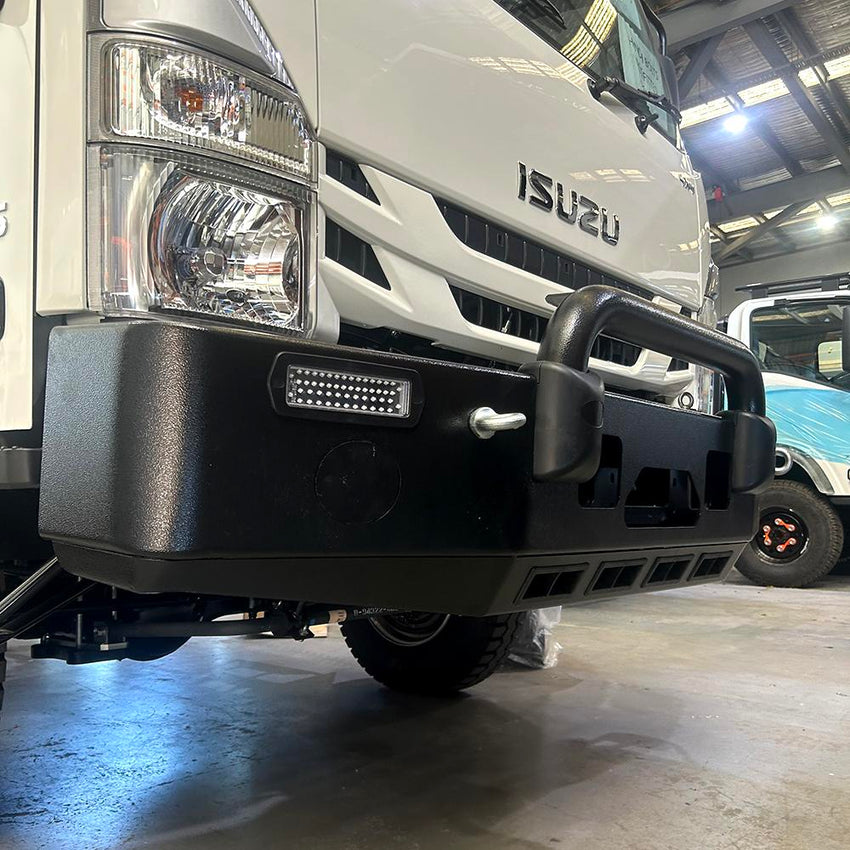

The AAV4x4 Isuzu NPS 2008+ Rated Recovery Nudge Bar is a compact front protection and recovery solution designed for owners who want serious winch and recovery capability without the upper hoop structure of a traditional full bull bar.
Based around the ECB B3AVIS4461TSYB nudge-bar configuration, the design combines an alloy outer protection structure with a heavy-duty steel winch cradle and chassis mounting system. This provides a strong foundation for vehicle recovery equipment while retaining a lower-profile, streamlined front-end design.
This version is supplied with blanking plates fitted in the low-beam light positions. Low-beam headlights are not included, allowing the applicable lighting conversion to be added separately if required.
The nudge bar provides many of the recovery-focused features expected from a heavy-duty front bar while eliminating the large upper hoop assembly.
This produces a cleaner and more compact appearance across the front of the NPS while retaining the substantial lower structure required for winch mounting and recovery equipment.
It is particularly well suited to expedition trucks and motorhomes where owners want a capable front recovery system without the visual size of a traditional full-height bull bar.
The nudge bar uses a combination of alloy and steel rather than relying on a single material throughout the complete assembly.
The visible outer protection structure uses alloy, while the high-load winch mounting arrangement incorporates a substantial steel cradle connected into the vehicle mounting structure.
This allows the recovery system to utilise the strength of steel where winching loads are concentrated while retaining the weight advantages of alloy through the outer bar structure.

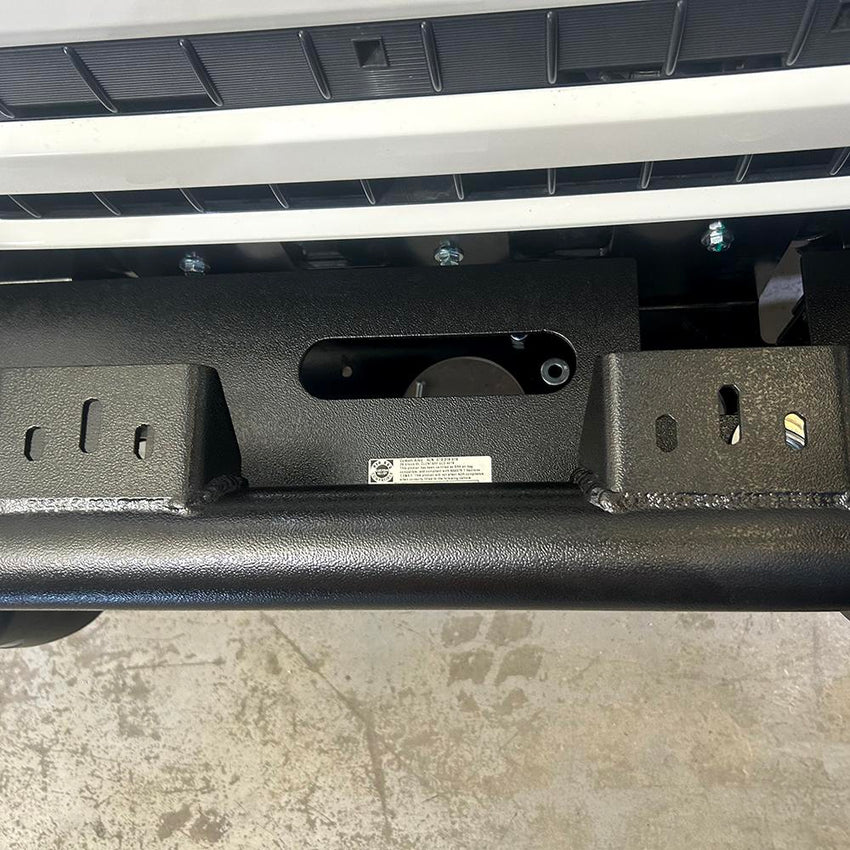

The nudge bar incorporates a dedicated winch mounting arrangement for compatible heavy-duty low-mount winches.
The winch sits behind the main bar structure, providing an integrated self-recovery solution suitable for an NPS used for remote travel, expedition touring, commercial work or off-road applications.
Because large truck winches vary significantly in overall dimensions, motor position, gearbox orientation and control-box arrangement, compatibility should be confirmed for the specific winch before installation.
A dedicated fairlead opening is incorporated into the front bar structure, allowing the winch rope to exit cleanly through the bar.
This keeps the winch installation integrated into the vehicle rather than requiring an externally mounted winch platform projecting from the front of the NPS.

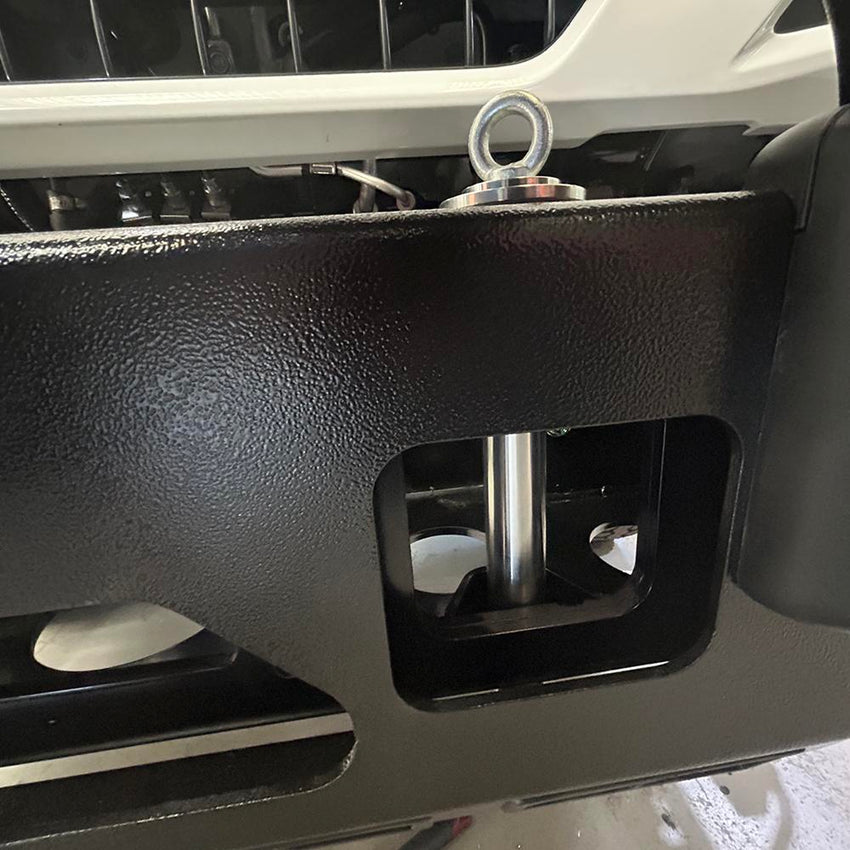

The bar incorporates AAV4x4 quick-connect recovery points on both sides of the front recovery structure.
The pin-lock arrangement provides a straightforward means of connecting a compatible recovery strap directly to the recovery point without requiring a separate bow or D shackle at the bar connection.
The retaining pin can be removed to position the recovery strap before being reinstalled and secured for the recovery.
This version is supplied with blanking plates installed in the positions provided for the optional low-beam lighting conversion.
This gives owners the flexibility to run the nudge-bar configuration without the additional low-beam lights initially, while retaining the provision to add the compatible lighting package later.
Low-beam headlights are not included with this product.
The nudge bar is designed to accommodate the applicable AAV4x4 low-beam headlight conversion as a separate upgrade.
Where the lighting conversion is selected, the blanking plates can be replaced by the corresponding lamp installation without requiring a completely different front bar.

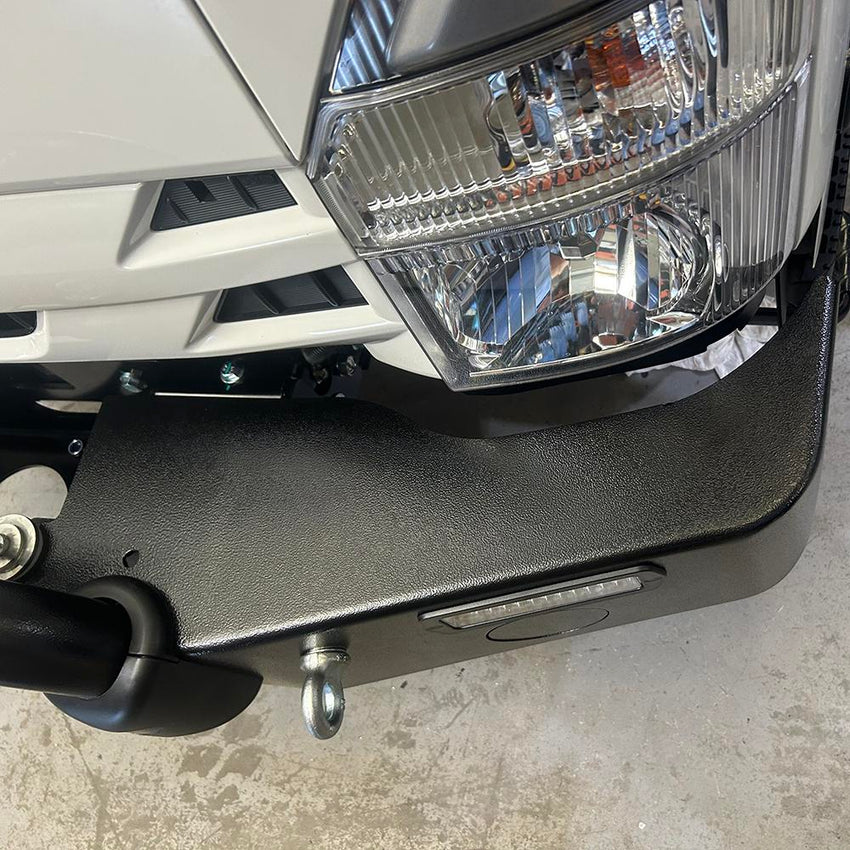

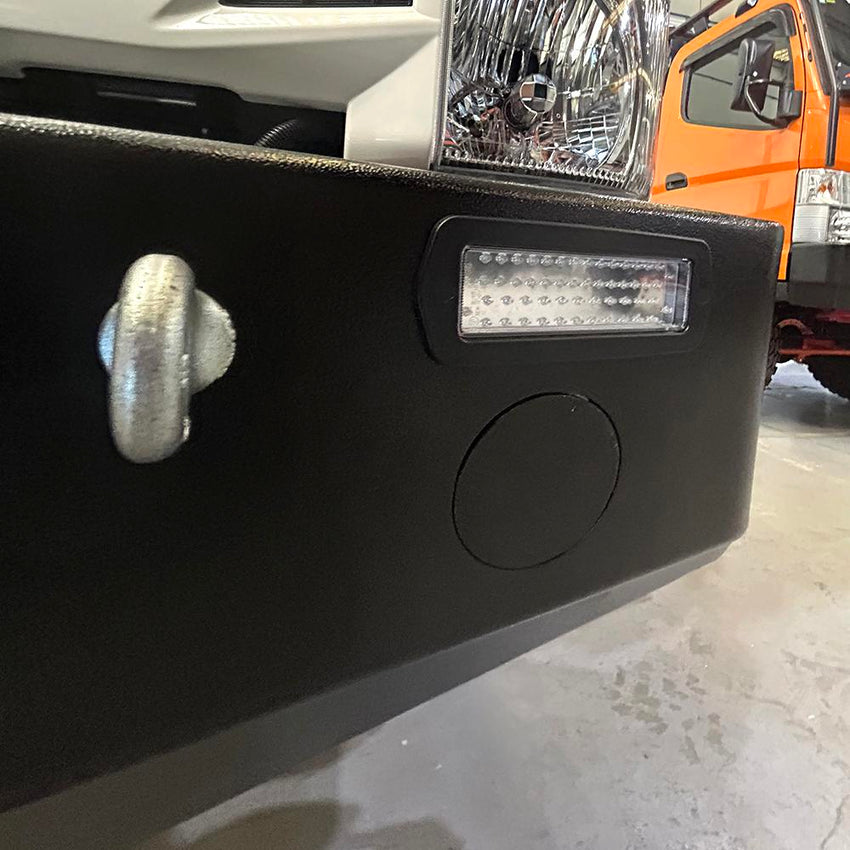

LED combination lighting is incorporated into the front bar design, providing an integrated lighting arrangement within the compact nudge-bar structure.
Positioning the lights within the bar maintains a clean finished appearance while keeping the lighting protected within the overall front-end assembly.
The Isuzu NPS is commonly converted into expedition vehicles, motorhomes, service trucks and remote-area work vehicles. Once fuel, water, body equipment, camping equipment and other accessories are added, these vehicles can represent a substantial recovery challenge if traction is lost.
A properly integrated winch and recovery-point system provides the vehicle with a practical means of self-recovery without relying on lightweight recovery equipment intended for smaller passenger 4WDs.
The nudge bar configuration is particularly suited to vehicles requiring:
Removing the upper hoop differentiates this nudge bar from the full bull-bar configuration.
The lower-profile design leaves more of the vehicle's original front-end area visually open while retaining the substantial lower bar, winch cradle and recovery components.
For owners who prioritise recovery capability over full-height frontal protection, this provides a practical alternative to the larger hoop-style bull bar.
The compact upper profile and open sections through the bar are designed to maintain airflow toward the NPS cooling system.
Effective front-end airflow is particularly important on expedition and work trucks operating under sustained load, during long climbs or at low speeds in demanding conditions.
The bar incorporates mounting provisions for compatible auxiliary driving lights or spotlights.
This allows additional long-range lighting to be integrated directly into the front accessory system rather than requiring a separate lightweight mounting bracket.
Dedicated mounting provisions are also incorporated for compatible UHF and communications aerials.
This provides a convenient elevated mounting position for the communications equipment commonly fitted to remote-area touring and commercial NPS vehicles.
The bar is supplied in a durable textured black finish, providing a practical appearance suited to touring, expedition and commercial vehicle applications.
The black finish also integrates well with common recovery accessories, winches, driving lights and other front-end equipment.
| Product | Rated Recovery Nudge Bar – Winch & Light Compatible |
|---|---|
| Vehicle application | Isuzu NPS 4x4 – 2008 onwards |
| Bar configuration | Compact nudge bar without upper hoop |
| ECB part code | B3AVIS4461TSYB |
| Outer bar construction | Alloy |
| Winch mounting structure | Steel cradle / mounting structure |
| Winch provision | Compatible with selected heavy-duty low-mount winches |
| Recovery points | AAV4x4 quick-connect pin-lock arrangement |
| Winch fairlead provision | Integrated |
| Low-beam light provision | Compatible with applicable AAV4x4 low-beam conversion |
| Low-beam lights included | No |
| Low-beam openings | Blanking plates fitted |
| Combination lighting | Integrated LED combination lights |
| Auxiliary lighting | Spotlight mounting provisions |
| Communications equipment | Aerial mounting provisions |
| Finish | Textured black |
This version is supplied with blanking plates rather than the optional low-beam headlights. The compatible low-beam lighting package can be added separately if required.
A winch is not included unless separately specified. Compatibility must be confirmed for the selected winch before installation, particularly for very high-capacity truck winches where dimensions and mounting requirements can vary substantially between models.
Driving lights, UHF aerials, low-beam conversion lights and other optional accessories are not included unless separately specified.
