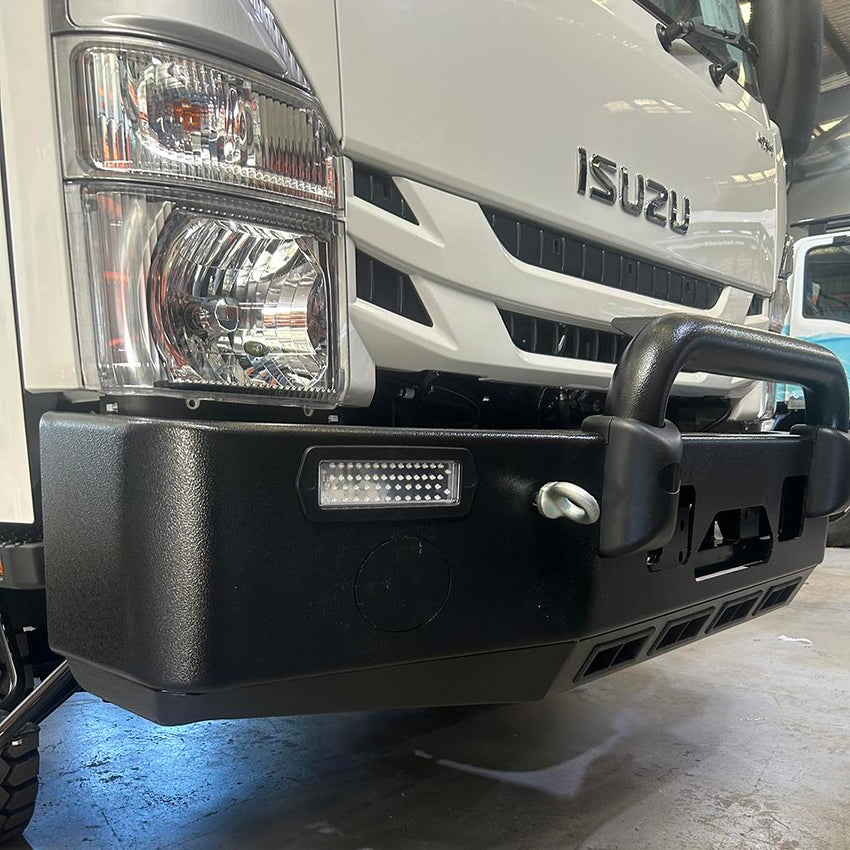

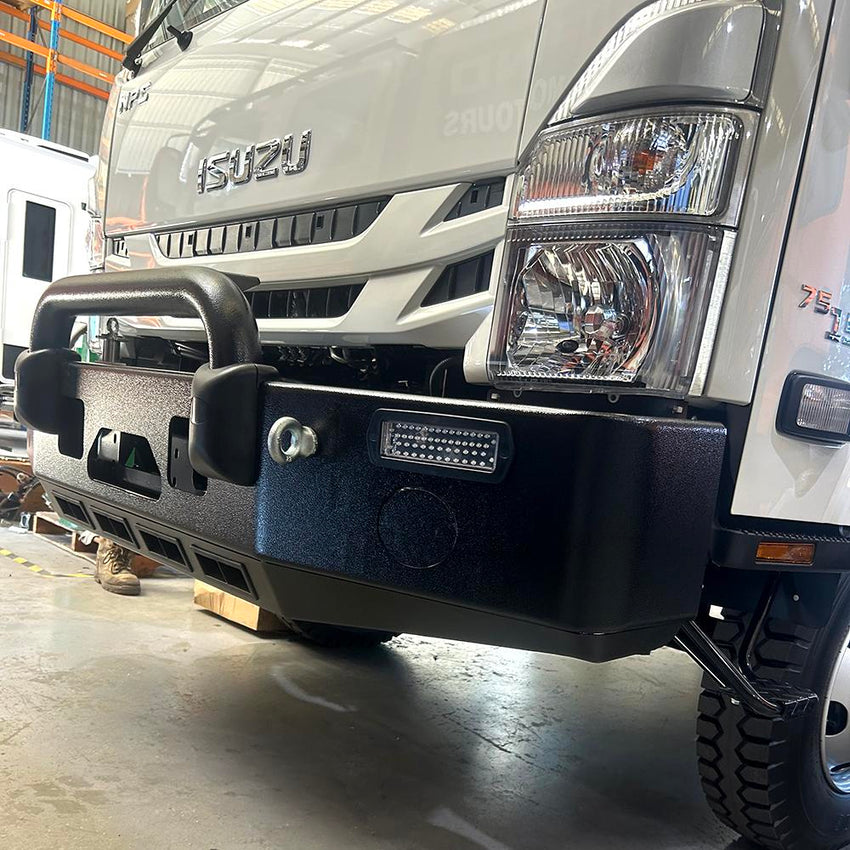

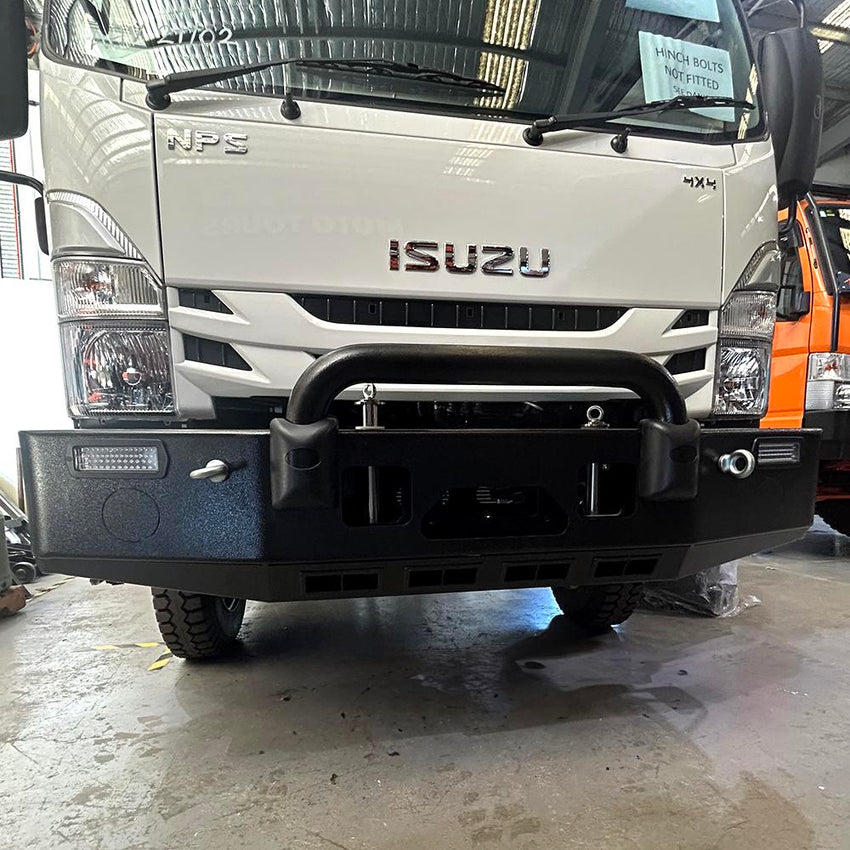

The AAV4x4 Isuzu NPS 2008+ Single Loop Recovery Nudge Bar is a compact front protection and recovery solution designed for NPS 4x4 vehicles requiring serious winch capability without the size of a traditional full-height bull bar.
Using the same recovery-focused bar configuration as the unfitted version, this package combines an alloy outer bar with a heavy-duty steel winch cradle and chassis mounting structure. It provides an integrated platform for a compatible heavy-duty winch, AAV4x4 quick-connect recovery points, auxiliary-light mounting provisions and communications aerials.
This product is supplied professionally fitted by AAV4x4 at our Brendale workshop. Blanking plates are installed in the provisions for the optional low-beam lighting conversion, allowing the applicable lighting upgrade to be added separately if required.
The single-loop nudge bar provides a more streamlined front profile than a conventional multi-hoop bull bar while retaining the substantial lower structure required for winch mounting and recovery equipment.
This makes it particularly suitable for expedition trucks and motorhomes where owners want an integrated recovery system and additional frontal protection without fitting a larger full-height bull bar.
The bar uses a combination of alloy and steel to place strength where it is most important.
The visible outer bar structure is alloy, while the high-load winch mounting system uses a heavy-duty steel cradle connected into the vehicle mounting structure.
This arrangement provides a strong foundation for recovery equipment while taking advantage of the lower mass of alloy through the external bar structure.

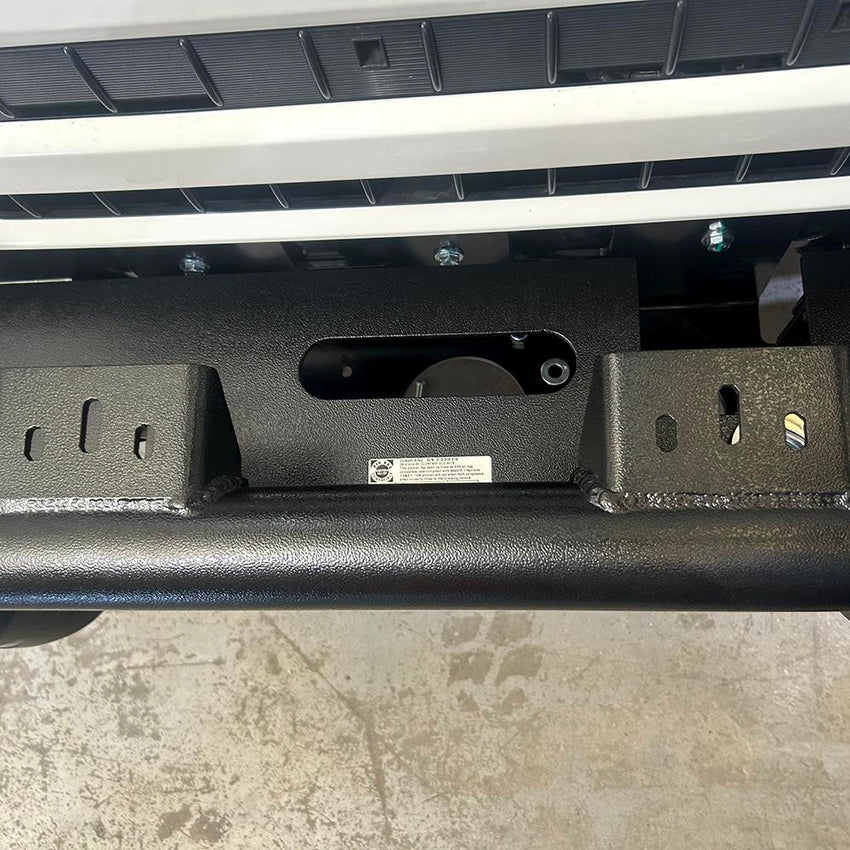

A dedicated winch mounting arrangement is incorporated behind the main nudge bar structure, allowing a compatible heavy-duty low-mount winch to be integrated into the front of the NPS.
The concealed installation provides serious self-recovery capability without requiring a separate external winch platform projecting from the front of the vehicle.
Winches vary considerably in dimensions, motor position, gearbox arrangement and control-box location, so compatibility should be confirmed for the specific winch being installed.
A dedicated fairlead opening is incorporated into the front bar structure to provide a clean exit path for the winch rope.
This keeps the winch and fairlead integrated into the overall front-end design and provides a tidy installation suited to expedition, touring and commercial NPS builds.

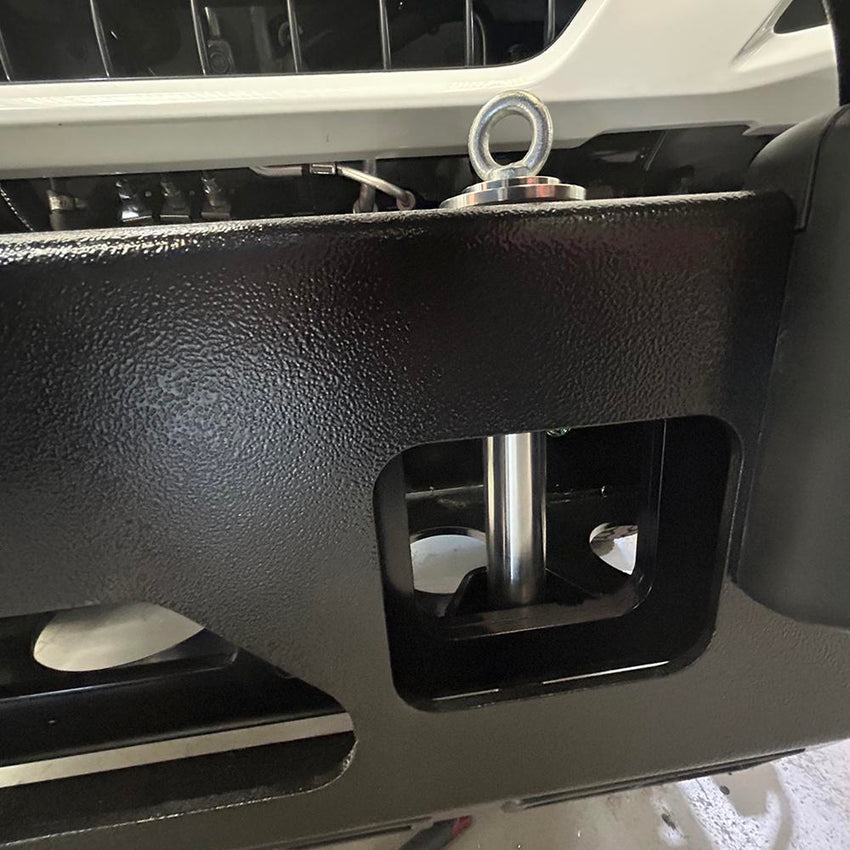

The bar incorporates AAV4x4 quick-connect recovery points on both sides of the recovery structure.
The pin-lock design allows a compatible recovery strap to be connected directly to the recovery point without requiring a separate D or bow shackle at the bar connection.
The retaining pin can be removed for connection of the compatible recovery strap and then reinstalled and secured for recovery use.

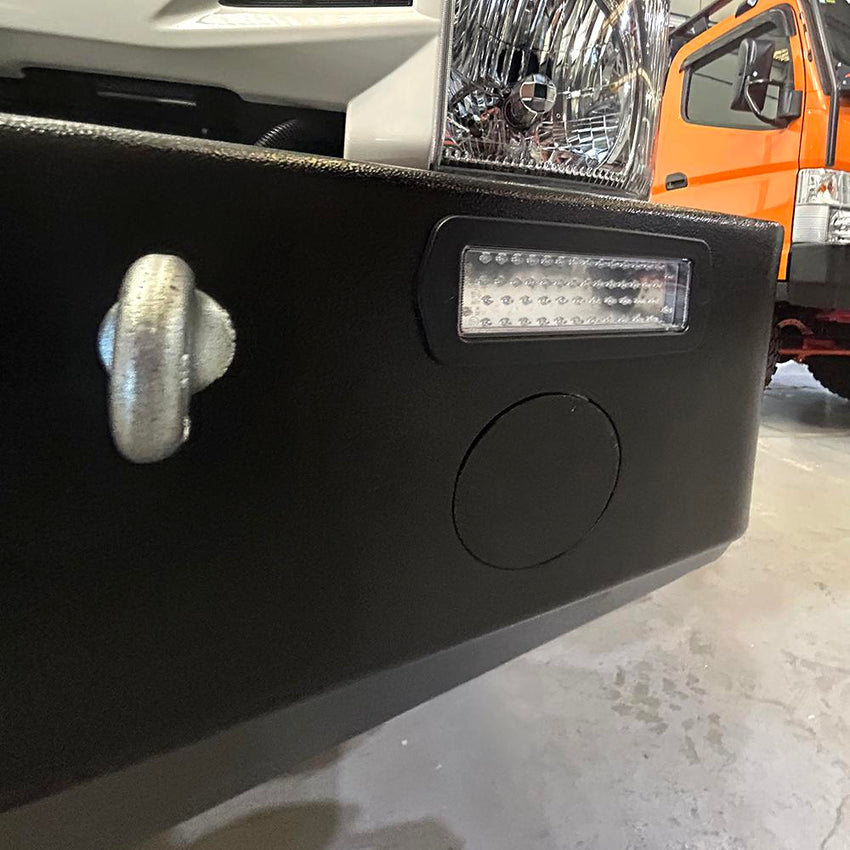

This configuration is supplied with blanking plates installed in the positions provided for the optional low-beam lighting conversion.
This allows the vehicle to be fitted with the recovery nudge bar initially while retaining the option of adding the compatible low-beam lighting package at a later stage.
Low-beam headlights are not included with this product.
The nudge bar is designed to accommodate the applicable AAV4x4 low-beam headlight conversion as a separate upgrade.
If the lighting package is added later, the blanking plates can be replaced by the applicable lighting installation without requiring replacement of the complete bar.

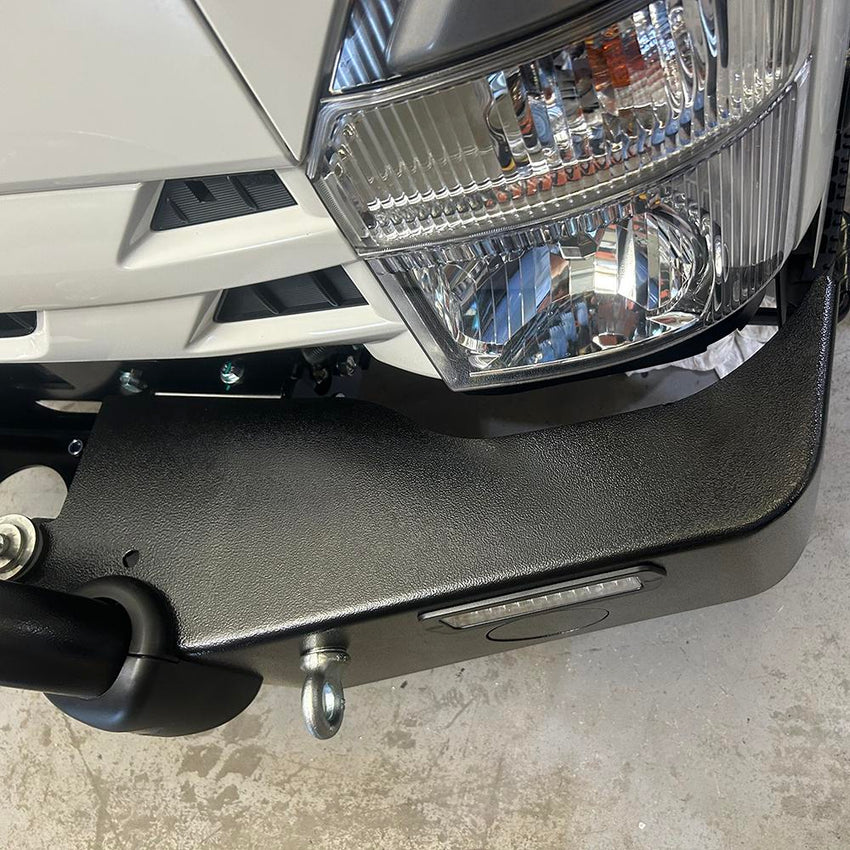

LED combination lighting is incorporated into the nudge bar design, providing an integrated lighting arrangement within the front protection structure.
The lights are positioned within the bar for a clean finished appearance while retaining the required front lighting functionality of the completed installation.
The Isuzu NPS is commonly used as a platform for expedition vehicles, motorhomes, service trucks and remote-area work vehicles. Once body equipment, fuel, water, touring gear and other accessories are added, a fully loaded NPS can present a substantial recovery challenge.
The combination of an integrated winch cradle and dedicated recovery points provides a practical front-end recovery solution for vehicles operating well away from sealed roads.
Typical applications include:
The compact design maintains open areas through the front of the vehicle to assist airflow toward the NPS cooling system.
Maintaining effective cooling airflow is particularly important on heavily loaded expedition and work trucks operating during long climbs, low-speed off-road driving and demanding conditions.
Dedicated mounting provisions are incorporated for compatible auxiliary driving lights or spotlights.
This provides a substantial integrated mounting location without requiring separate lightweight accessory brackets.
The bar also incorporates mounting provisions for compatible UHF and communications aerials.
This provides a convenient elevated location for communications equipment commonly fitted to touring, expedition and remote-area work vehicles.
The nudge bar is supplied in a durable textured black finish suited to touring, commercial and expedition applications.
The finish complements common front-end accessories including winches, driving lights and communications equipment while providing a clean, purposeful appearance.
This product is supplied as a fitted package and is professionally installed by AAV4x4 at our Brendale workshop.
The installation includes:
| Product | Single Loop Recovery Nudge Bar – Winch Compatible – Fitted |
|---|---|
| Vehicle application | Isuzu NPS 4x4 – 2008 onwards |
| Bar configuration | Compact single-loop nudge bar |
| ECB bar reference | B3AVIS4461TSYB |
| Outer bar construction | Alloy |
| Winch mounting structure | Steel cradle / mounting structure |
| Winch provision | Compatible with selected heavy-duty low-mount winches |
| Recovery points | AAV4x4 quick-connect pin-lock arrangement |
| Winch fairlead provision | Integrated |
| Low-beam light provision | Compatible with applicable AAV4x4 low-beam conversion |
| Low-beam headlights included | No |
| Low-beam openings | Blanking plates fitted |
| Combination lighting | Integrated LED combination lights |
| Auxiliary lighting | Spotlight mounting provisions |
| Communications equipment | Aerial mounting provisions |
| Finish | Textured black |
| Installation | Professionally fitted by AAV4x4 at Brendale |
This is the professionally fitted version of the same Isuzu NPS recovery nudge bar configuration supplied in the corresponding unfitted product.
The low-beam conversion is not included. Blanking plates are fitted in the applicable light positions, allowing the compatible low-beam lighting package to be added separately if required.
A winch is not included unless separately specified. Compatibility should be confirmed for the selected winch before installation, particularly with high-capacity truck winches where dimensions and mounting configurations can vary.
Driving lights, UHF aerials and other optional accessories are not included unless separately specified.
