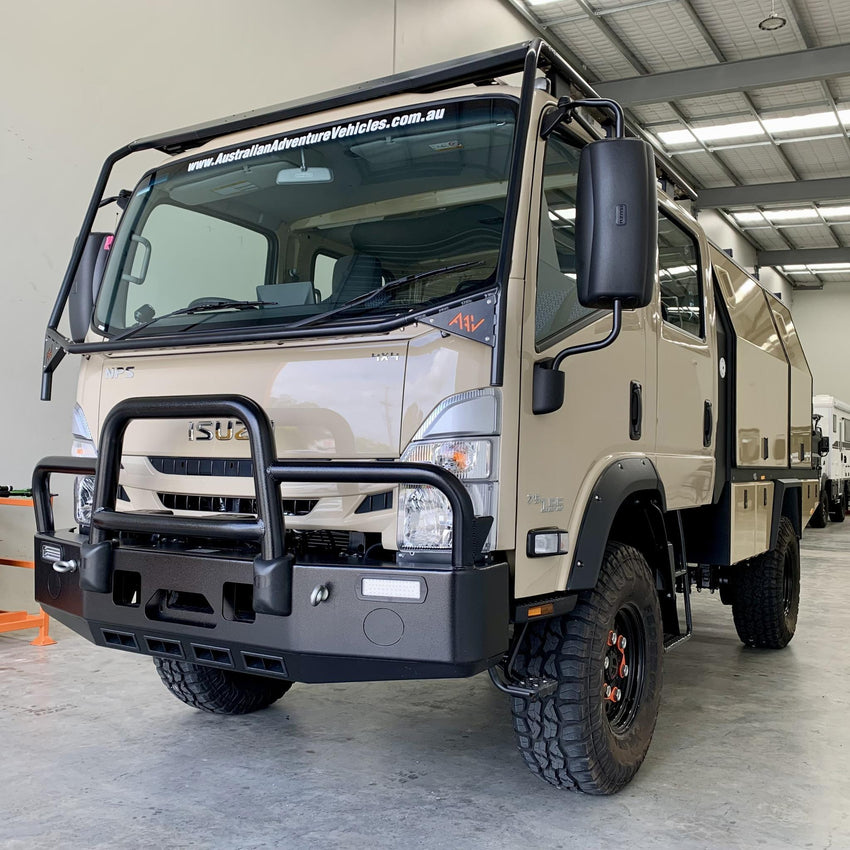

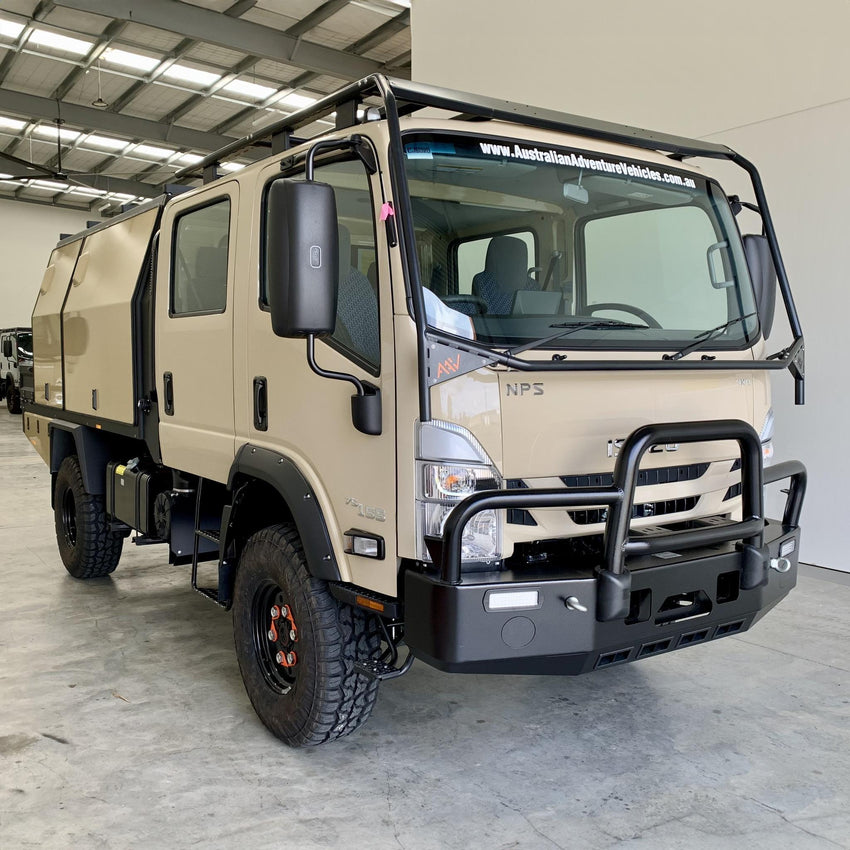

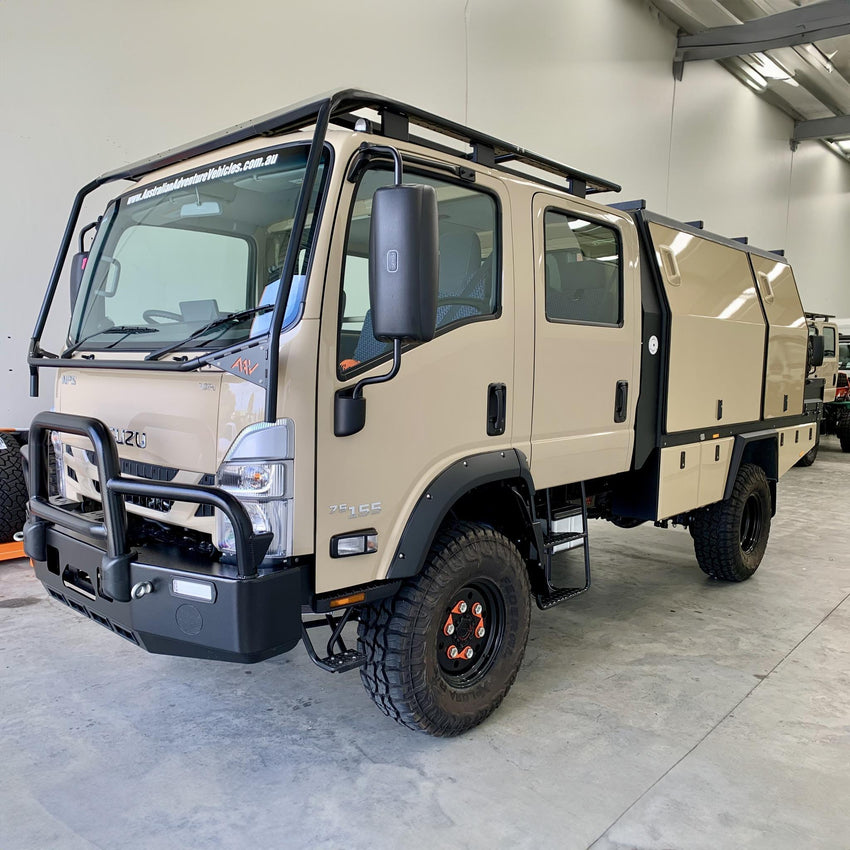

The AAV4x4 Isuzu NPS Winch Bull Bar package combines the proven strength and vehicle-specific engineering of an Australian-manufactured alloy winch bull bar with AAV4x4's integrated LED low-beam headlight solution and recovery-focused features.
Designed for Isuzu NPS NH 4x4 models from 2008 onwards, the bull bar uses a high-tensile structural-grade alloy body supported by a purpose-built steel winch mounting system secured directly to the vehicle chassis. The result is a substantial front-protection system capable of accommodating selected low-mount winches up to 20,000lb while keeping total added vehicle mass considerably lower than an equivalent all-steel construction.
This version is finished in Textura Black powder coat and incorporates an LED low-beam headlight kit suitable for the AAV4x4 NPS installation.

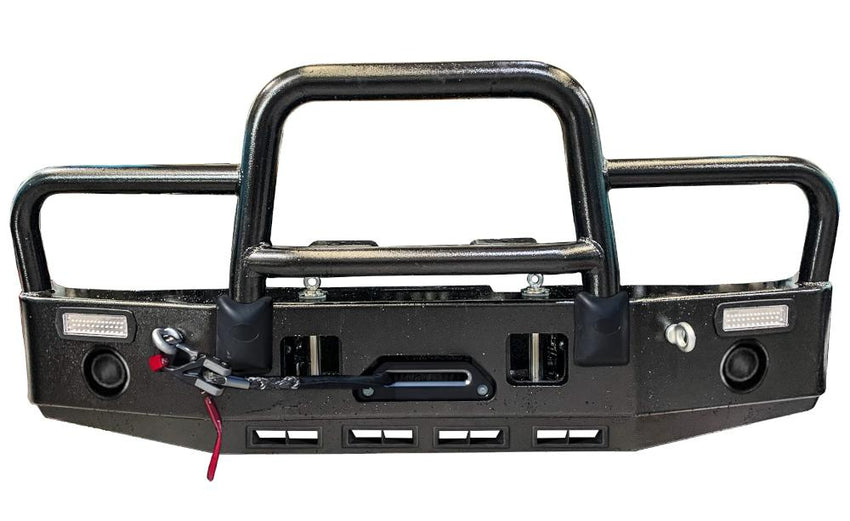

The bull bar is manufactured from high-tensile structural-grade alloy and uses a fully welded, single-piece channel as the primary protection structure.
This construction provides substantial frontal protection while taking advantage of the lower mass of alloy compared with an equivalent full-steel bull bar.
The total bull bar assembly weight is approximately 85kg, with a net weight increase to the vehicle of approximately 70kg after allowance for components displaced during installation.
While the main bull bar structure is alloy, the winch mounting system uses purpose-designed steel construction secured directly to the Isuzu chassis.
This separates the demanding winch mounting loads from the alloy outer protection structure and provides a strong foundation for the compatible low-mount winch.
The bull bar is engineered for selected winches up to 20,000lb.
The bull bar is specified for selected low-mount winches including:
Winch compatibility should always be confirmed before installation, particularly where a different winch model, motor position or control-box arrangement is being considered.
The winch is integrated behind the main bull bar structure rather than simply mounted externally to the front face.
A concealed fairlead opening provides a clean exit point for the winch rope while helping maintain the integrated appearance of the front bar.
This arrangement provides the recovery capability expected from an expedition or working 4x4 without unnecessarily projecting the complete winch assembly forward of the bar.
The AAV4x4 configuration incorporates quick-connect recovery points positioned on both sides of the bull bar assembly.
The pin-lock design allows a compatible recovery strap to be inserted directly into the recovery point, reducing reliance on separate bow shackles for connecting the strap to the vehicle.
The removable retaining pin provides straightforward access when setting up a recovery while maintaining a clean integrated arrangement when not in use.

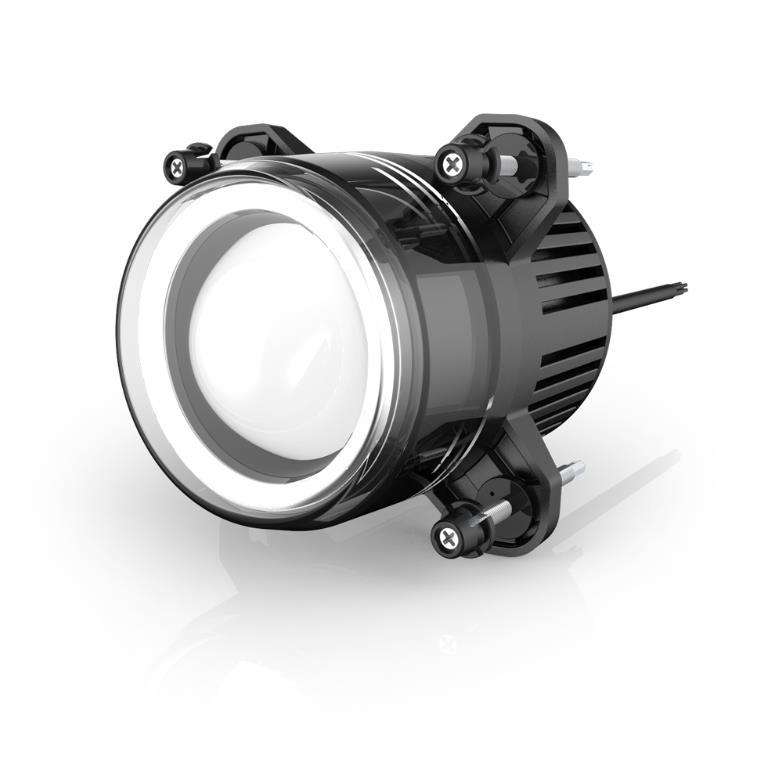

This package incorporates an AAV4x4 LED low-beam headlight solution for the Isuzu NPS application.
The integrated low-beam lights provide a dedicated lighting arrangement within the completed bull bar installation rather than compromising the vehicle's required forward lighting when the original front-end configuration is altered.
The supplied LED low-beam system is suitable for 12V and 24V electrical applications and is incorporated into the bull bar package for the compatible NPS installation.
LED combination lighting is incorporated into the bull bar as standard, providing an integrated lighting solution within the front protection system.
The lighting is positioned within the bull bar structure for a clean installation while maintaining the functionality required at the front of the vehicle.
The bull bar is ADR compliant and airbag compatible for its specified Isuzu NPS application.
This is particularly important on a modern truck where the bull bar and mounting structure form part of the vehicle's front-end configuration and must be engineered around the intended vehicle application rather than treated as a universal accessory.
A full-width braced lower protection skirt forms part of the bull bar design, extending protection below the main alloy channel and strengthening the lower section of the assembly.
This helps provide additional front-end protection for an NPS operating on rough tracks, construction sites, rural roads and remote-area routes.
Integrated air-directional cooling vents help maintain airflow through the bull bar and toward the vehicle's cooling system.
Maintaining effective cooling airflow is particularly important on a heavily loaded NPS used for expedition travel, long climbs, slow off-road operation or commercial work.
The bull bar provides dedicated mounting provisions for auxiliary driving lights or spotlights.
Spotlight mounting tabs are positioned approximately 350mm centre-to-centre, providing a strong integrated location for compatible auxiliary lighting.
Aerial mounting provisions are incorporated into the bull bar layout, providing a suitable elevated position for compatible UHF or communications antennas.
This keeps communications equipment integrated with the vehicle's front-end accessory package rather than requiring an additional standalone mounting system.
This AAV4x4 configuration uses a Textura Black powder-coated finish.
The textured black finish provides a low-maintenance appearance particularly well suited to work trucks, expedition vehicles and touring builds while complementing other black vehicle accessories.
The combination of frontal protection, high-capacity winch compatibility, recovery provisions and integrated lighting makes this bull bar particularly suitable for NPS vehicles configured for demanding applications.
Typical applications include:
| Vehicle application | Isuzu NPS NH 4x4 – 2008 onwards |
|---|---|
| Bull bar construction | High-tensile structural-grade alloy |
| Main channel construction | Fully welded single-piece alloy channel |
| Winch mounting structure | Purpose-built steel chassis-mounted system |
| Maximum specified winch capacity | Up to 20,000lb low-mount winch |
| Lower protection | Full-width braced protection skirt |
| Finish | Textura Black powder coat |
| ADR compliant | Yes |
| Airbag compatible | Yes |
| Manufacturing | Australian manufactured |
| Total product weight | Approximately 85kg |
| Net weight added to vehicle | Approximately 70kg |
| Overall bar width | Approximately 1935mm |
| Distance added to front of vehicle | Approximately 315mm |
| Centre tube height clearance | Approximately 300mm |
| Grille clearance | Approximately 100mm |
| Minimum centre tube inside width | Approximately 440mm |
| Maximum centre tube inside width | Approximately 679mm |
| Spotlight tab spacing | Approximately 350mm centre-to-centre |
| Standard bar lighting | Integrated LED combination lights |
| Low beam lighting | Integrated LED low-beam headlight kit |
| Cooling | Air-directional cooling vents |
The bull bar is specified for selected low-mount winches up to 20,000lb. Winch fitment should be confirmed before purchasing a winch not specifically listed for the bar.
Compatible examples include Warn 16,000lb, Runva 16,000lb, Sherpa 17,000lb and Tank 20,000lb winches.
References in older AAV4x4 material to winches above 20,000lb should not be taken as confirmation of compatibility with this bull bar, as the current specification supports selected low-mount winches up to 20,000lb.
Driving lights, aerials, winch and optional DRL equipment are not included unless separately specified.
