Isuzu NPS Towbar Electrics Only 7 Pin & Ecu Box Plug In No Solder Loom Kit

Isuzu NPS 7-Pin Flat Towbar Wiring Kit with 12/24V ECU Interface – Unfitted

The AAV4x4 Isuzu NPS towbar wiring kit provides a straightforward plug-in solution for connecting compatible trailer road lighting to an Isuzu NPS 2008+.

The vehicle-specific loom connects into the standard Isuzu rear-light wiring using two plug-in connections, reducing the need to cut, splice or solder the original vehicle harness. A separate power connection supplies the included trailer-light interface module, which operates the trailer lights without placing their full electrical load directly onto the vehicle’s original lighting circuits.

The multivoltage arrangement can be configured to provide either 12V or 24V trailer-light output according to the selected power supply and the requirements of the connected trailer.

This kit includes the Isuzu plug-in loom, 7-pin flat trailer connection, 12/24V trailer-light interface module and cable-retention components. It is supplied unfitted.

Key Features

• Designed for compatible Isuzu NPS 2008+ vehicles
• Vehicle-specific plug-in towbar wiring loom
• Australian-style 7-pin flat trailer connection
• No soldering required
• Connects to the standard Isuzu rear-light wiring using two plugs
• Separate power connection for the trailer-light interface
• Selectable 12V or 24V trailer-light output according to the connected supply
• Electronic trailer-light ECU interface module included
• Designed to operate trailer lights without adding their full load to the vehicle lamp circuits
• Helps reduce interference with electronically monitored vehicle lighting systems
• Clean and serviceable installation arrangement
• Cable ties included for secure loom routing
• Supplied unfitted

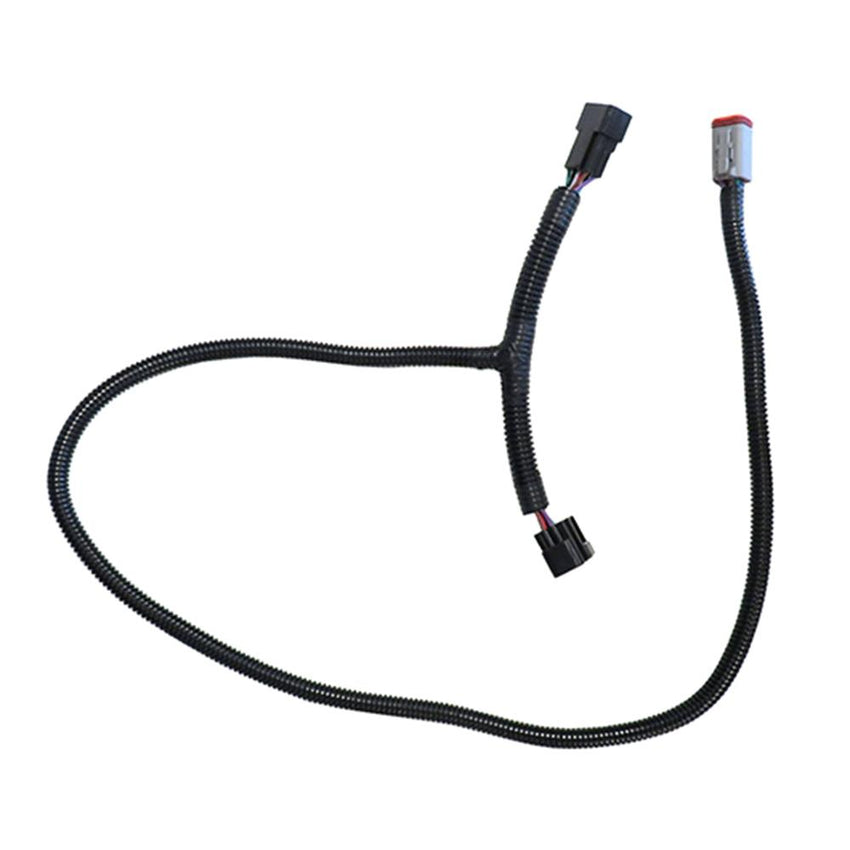

Vehicle-Specific Plug-In Loom

The supplied loom is designed specifically for integration with the compatible Isuzu NPS rear-light wiring.

Two plug-in connections allow the trailer-light signals to be obtained from the vehicle without cutting or soldering the standard wiring harness. This provides a cleaner installation and makes the system easier to inspect or service than a universal splice-in loom.

No-Solder Installation

The kit is designed to minimise modification of the original Isuzu electrical system. The vehicle-lighting connections are made through the supplied plug-in loom, while the interface module receives a separate power supply.

The no-solder arrangement provides:

• Reduced alteration of factory wiring
• Consistent lighting-signal connections
• Cleaner cable routing
• Easier fault finding and servicing
• A neat trailer-wiring installation

12V or 24V Trailer-Light Output

The trailer-light interface can be configured for either 12V or 24V trailer-light operation by connecting it to the appropriate vehicle power source.

• For compatible 24V trailer lighting, the module is supplied from an appropriate protected 24V source.
• For compatible 12V trailer lighting, the module is supplied from an appropriate protected 12V source available within the vehicle system.

The required trailer-light voltage must be confirmed before installation. Standard 12V trailer lamps must not be supplied directly from an unconverted 24V circuit.

Trailer-Light ECU Interface

The included electronic interface module receives the applicable stop, tail, indicator and other lighting signals from the Isuzu loom and switches the corresponding trailer-light outputs.

Because the trailer lamps are powered through the module’s separate supply, their full electrical load is not applied directly to the Isuzu’s original lamp circuits.

This arrangement helps reduce the risk of:

• Vehicle lighting-circuit overload
• Dashboard warning-light faults
• Unexpected exterior-light operation
• Interference with electronically monitored lighting circuits

7-Pin Flat Trailer Connection

The kit incorporates an Australian-style 7-pin flat trailer connection for use with a compatible trailer plug.

Depending on the completed pin configuration and connected trailer, the socket can provide connections for applicable functions including:

• Left indicator
• Right indicator
• Stop lights
• Tail and clearance lights
• Reverse or auxiliary circuit where configured
• Electric-brake signal where a separate brake controller is installed
• Earth return

The vehicle and trailer pin configurations must be checked before use.

Installation Requirements

The interface module must be mounted in a suitable protected location, while the wiring should be routed away from heat, sharp edges and moving vehicle components.

Installation requires:

• Connection of the two vehicle-specific loom plugs
• Selection of the correct 12V or 24V power source
• Suitable circuit protection for the module power supply
• Secure mounting of the trailer-light interface module
• Mounting of the 7-pin flat trailer socket in a suitable rear position
• Secure routing and retention of the wiring loom
• Testing of all applicable trailer-lighting outputs

Specifications

Included

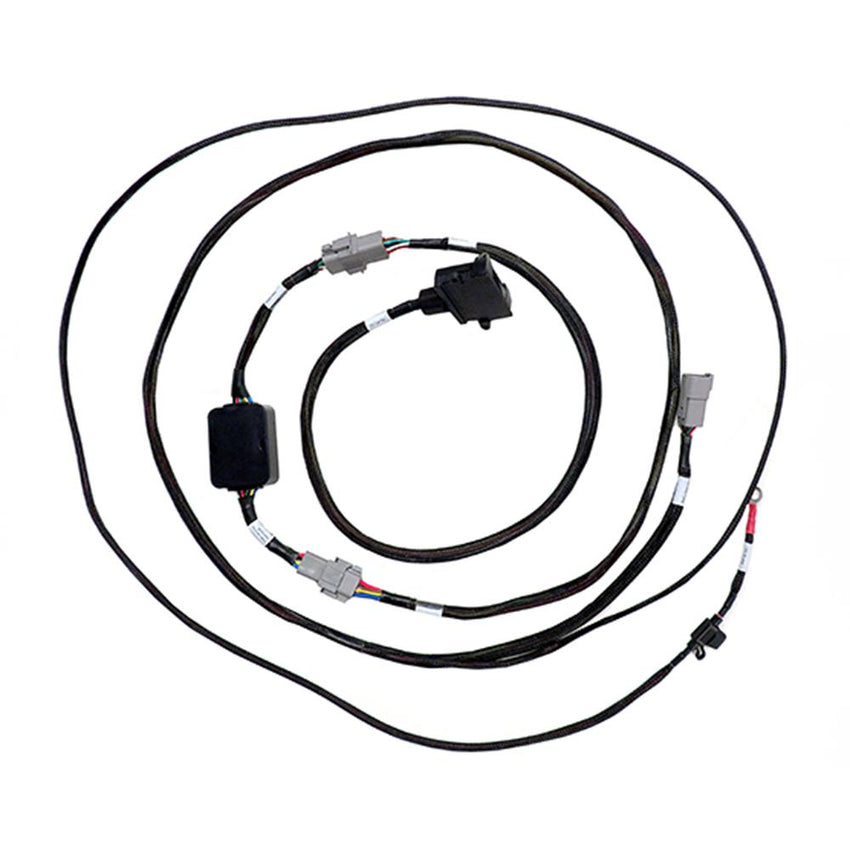

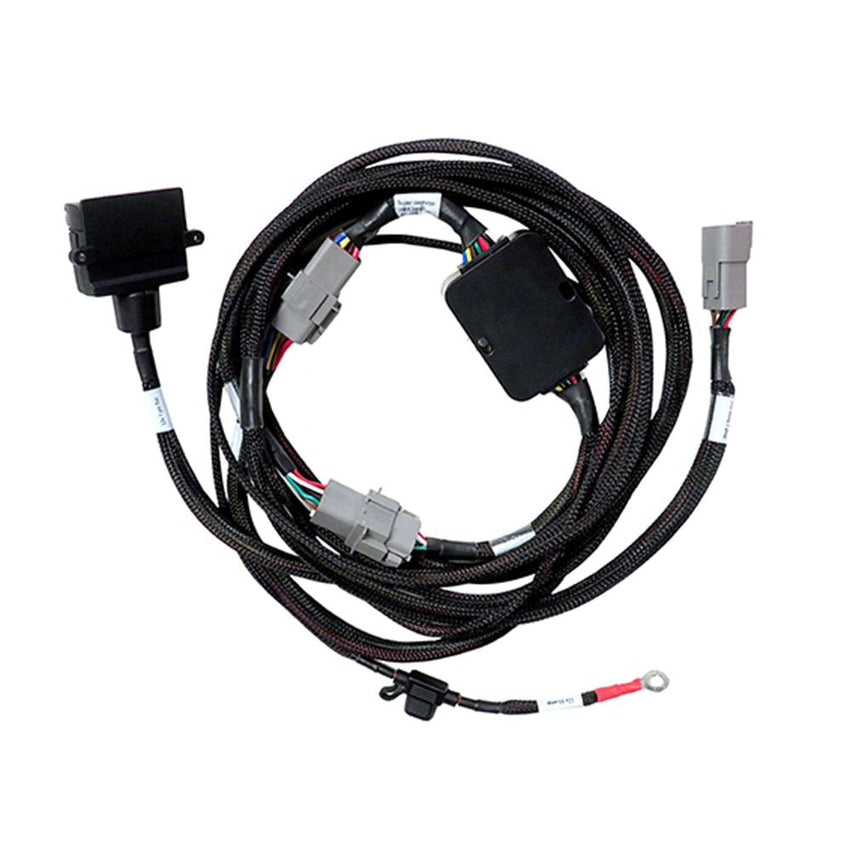

• 1 x Isuzu-specific plug-in towbar wiring loom
• 1 x 7-pin flat trailer wiring loom and connection
• 1 x 12/24V trailer-light ECU interface module
• 20 x cable ties for loom retention

Important Note

This product is supplied unfitted and includes the towbar electrical components only. A physical towbar, hitch, towball and electric trailer-brake controller are not included.

The required trailer-light voltage must be confirmed before connecting the module power supply. Incorrect voltage selection may damage the trailer lights or connected equipment.

A suitable fused power connection is required. Additional wiring, terminals, conduit, mounting hardware or circuit-protection components may be required according to the individual vehicle installation.

Additional equipment may also be required for electric trailer brakes, auxiliary charging circuits, trailer stability-control systems, reversing cameras or other specialised trailer functions.

All trailer-lighting functions and the earth connection must be tested after installation and before the vehicle is used for towing.
