Rim Part No 517.080.010 DOT Stamped 2300Kg
The rims are tested consistent with SAE J2530a = Max Load rating of 2,300Kg and achieved 35,000 revolutions at 450 r/min with an applied Dynamic Cornering Fatigue force of 12,657Nm

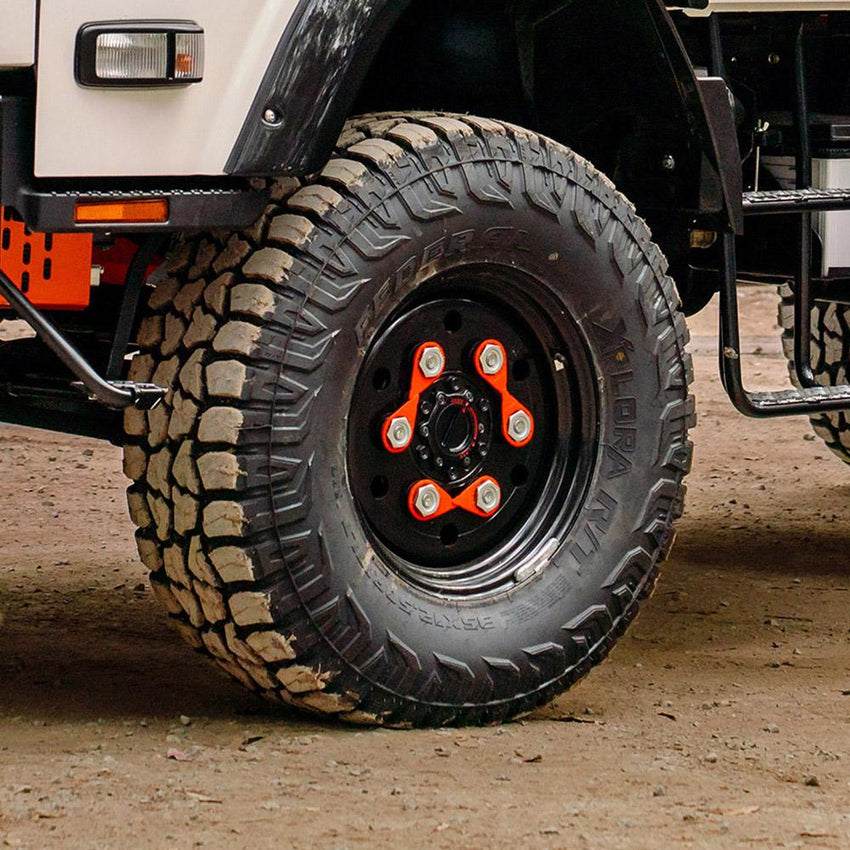

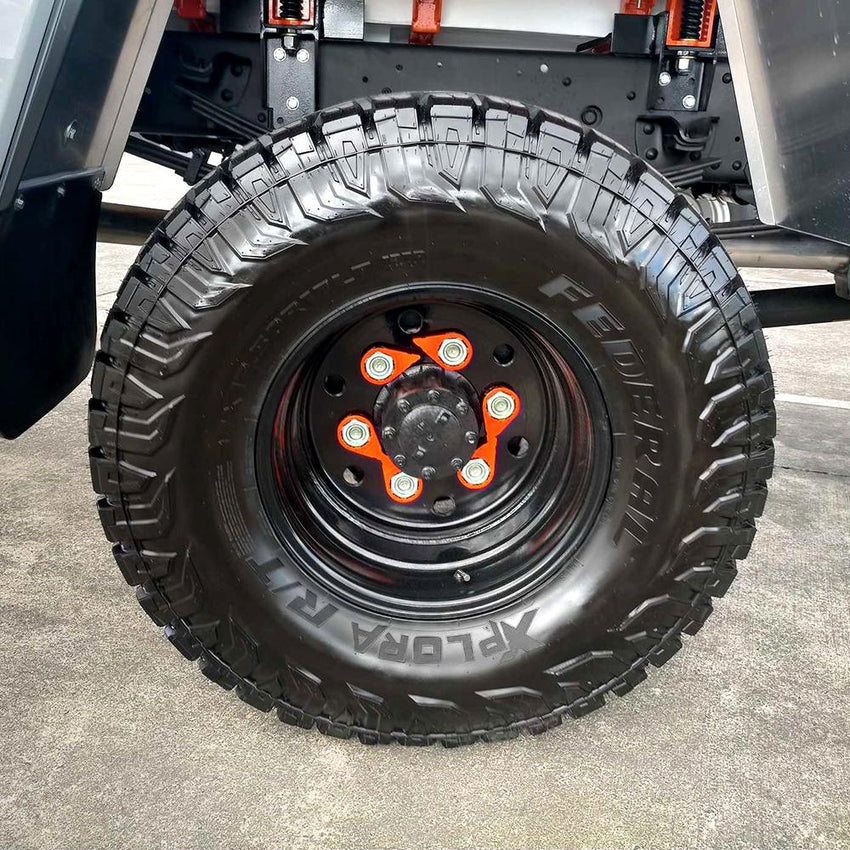

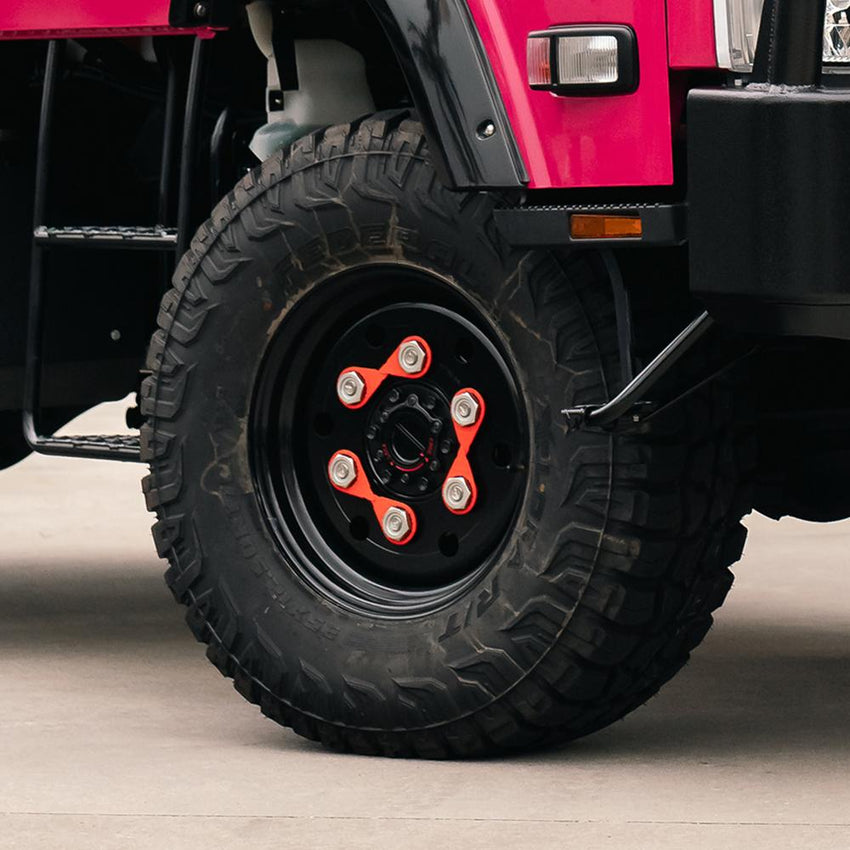

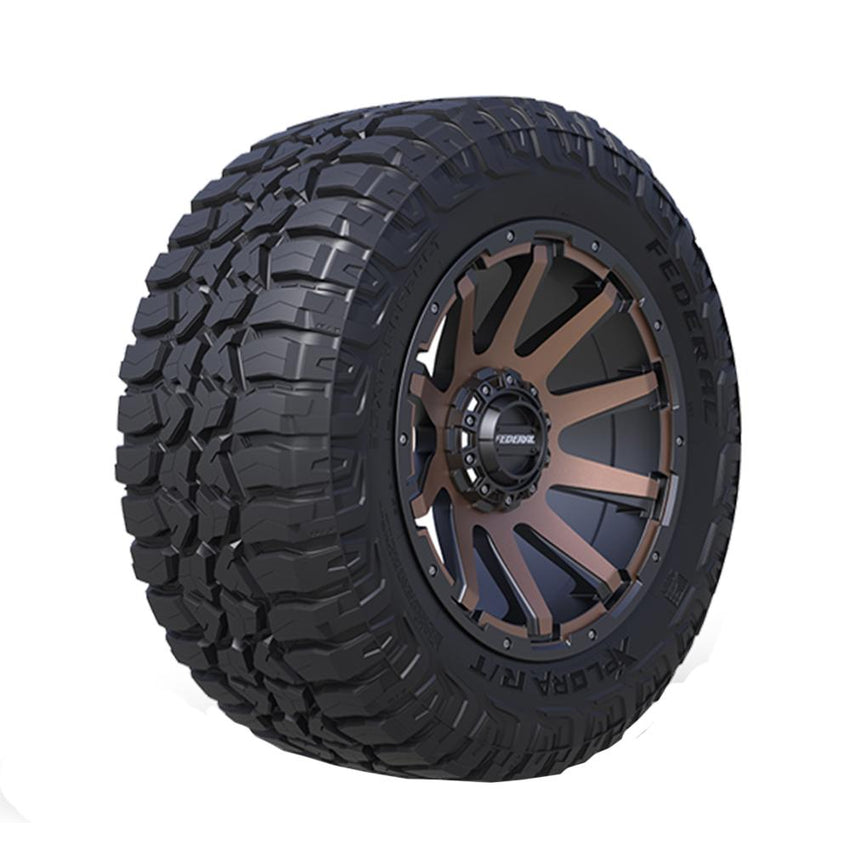

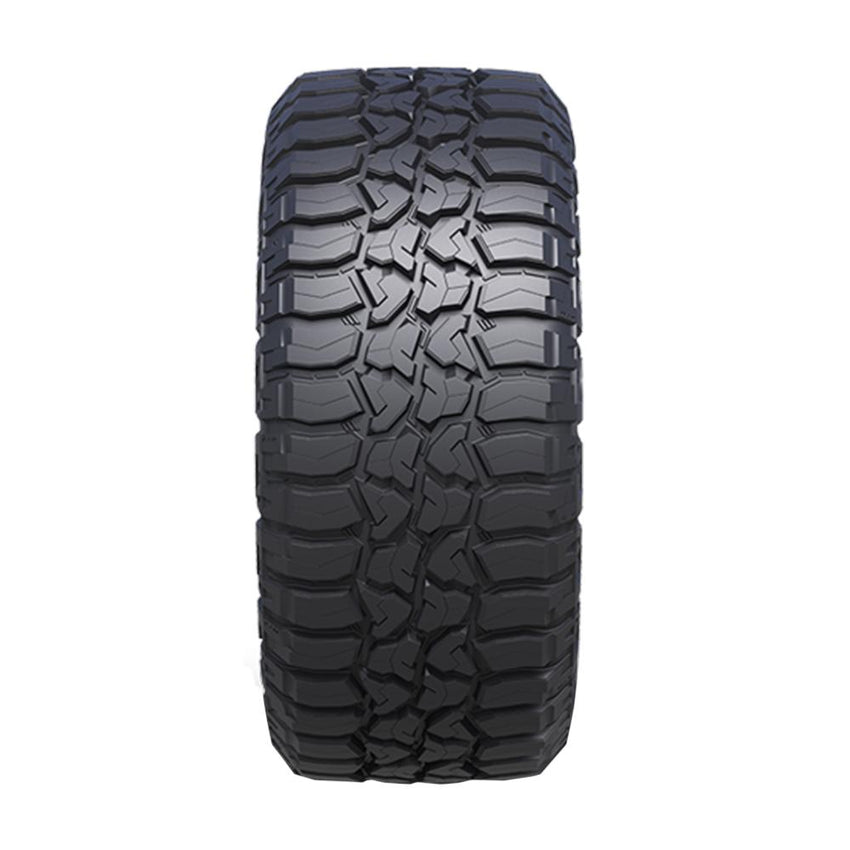

FITTED & BALANCED with Federal Xplora 35x12.5 R17 LT. 12Ply 137Q Load Rating is 2300Kg. Manufacturers recommended inflation pressure is 80 PSI Max GVM 7000Kg & GCM 10,500Kg (vehicle dependent) Fits all Isuzu NPS 2009+ Model No NH-NPSCB and NH-NPSGB and 2016 + Model No NPS75/45-155. Wheel track front to rear exact. Fits Hino 817 - Wheel track is 13.5mm different front to rear
If you are fitting these wheels yourself it is your responsibility to check wheel arch clearance and on-road compliance.
