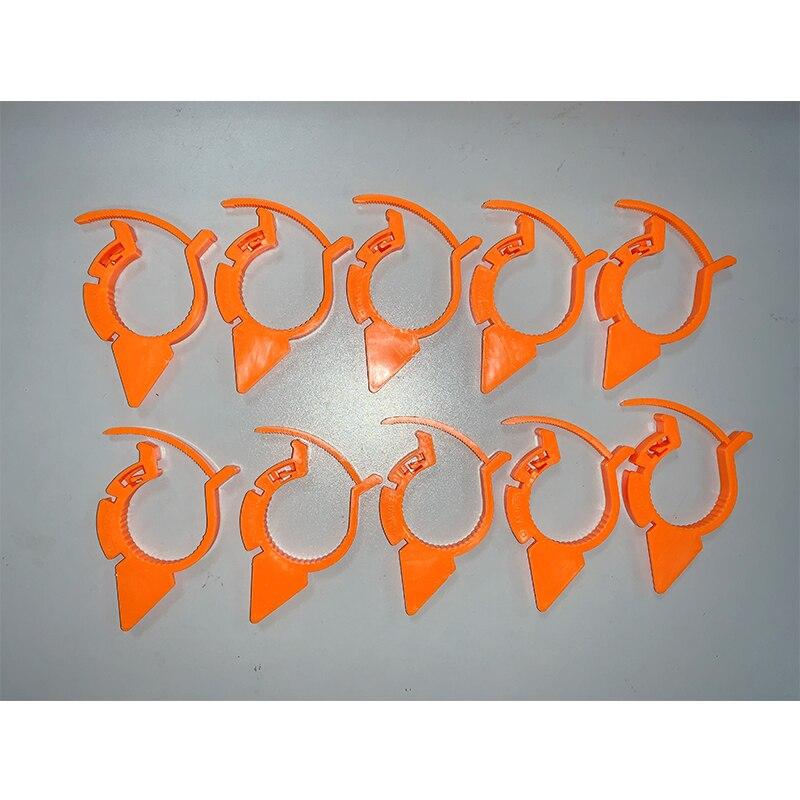

38 Mm Redcat Wheel Safety Indicator Ws38O - 5 Stud

38mm Orange Wheel Nut Safety Indicators – 5-Stud Fuso

These 38mm wheel nut safety indicators provide a clear visual reference for detecting movement of wheel nuts on compatible five-stud Fuso wheels.

Each bright orange indicator is fitted firmly over a correctly torqued wheel nut, with the pointers arranged in a consistent pattern. If a wheel nut begins to rotate, its indicator moves out of alignment, making the change easier to identify during a routine vehicle walk-around or pre-start inspection.

AAV4x4 recommends wheel nut indicators on all suitable trucks because they provide a simple, highly visible way to identify potential wheel nut movement before it develops into a more serious wheel or hub issue.

Key Features

• Designed for 38mm wheel nuts
• Suitable for compatible five-stud Fuso wheel applications
• Bright orange finish for clear visibility
• Provides a visual indication of wheel nut movement
• Supports quick daily walk-around and pre-start inspections
• Simple push-on installation
• Individual pointer design creates an easily recognised alignment pattern

Visual Wheel Nut Monitoring

The indicators are installed in a consistent pattern after the wheel nuts have been tightened to the vehicle manufacturer’s specified torque.

Common installation patterns include pointing each indicator towards the centre of the wheel or arranging neighbouring indicators point-to-point. Once fitted, any rotation of a wheel nut changes the position of its pointer and disrupts the established pattern.

This makes possible wheel nut movement easier for drivers and service personnel to recognise without removing covers or individually checking every nut during each visual inspection.

Why AAV4x4 Recommends Wheel Nut Indicators

Loose wheel nuts can lead to damage around the wheel studs, nuts, rim and hub, and continued loosening may ultimately contribute to wheel detachment.

Wheel nut indicators provide an additional visual warning that can be checked whenever the vehicle is inspected. Their bright orange colour stands out against the wheel, allowing the indicator pattern to be assessed quickly before driving.

They are a straightforward addition to a truck’s regular wheel-safety and preventative-maintenance procedures.

38mm Fitment

This product is intended for wheel nuts measuring 38mm across the flats. The wheel nut must be measured across two opposing flat faces rather than across the corners.

Fitment should be confirmed before installation, as wheel nut sizes can vary between vehicle models, wheels and wheel-hardware configurations.

Inspection

During regular vehicle inspections, check for:

• An indicator that has moved out of the established pattern
• A missing indicator
• A damaged, distorted or discoloured indicator
• Visible rust or movement marks around the wheel nut and rim
• Any unusual vibration, wheel noise or other indication of a wheel problem

Any change or discrepancy requires further investigation before the vehicle continues operating.

Specifications

Included

• Orange 38mm wheel nut safety indicators for a five-stud wheel configuration

Important Note

Wheel nut indicators are visual inspection aids only. They do not tighten wheel nuts, prevent all wheel nut movement or replace correct wheel installation, manufacturer-specified torque procedures, scheduled re-torquing or regular maintenance.

Remove the indicators before carrying out wheel nut torque checks so the socket can engage the wheel nut correctly.

If an indicator has moved, is missing or shows signs of damage or overheating, the wheel assembly should be inspected and the cause identified before further use.
