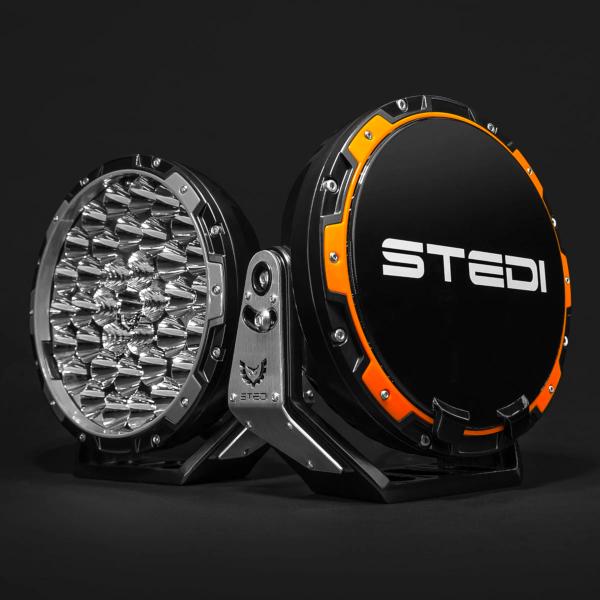

Stedi Type-X Pro Led Driving Lights PAIR

The STEDI Type-X™ PRO LED Driving Lights – Pair deliver powerful mid-to-long-range illumination for highway driving, remote touring and off-road travel after dark. Supplied unfitted as a complete pair, they combine a concentrated pencil beam with integrated spread reflectors to provide strong forward reach together with useful road-edge and shoulder visibility.

Each driving light uses 37 Oslon High-Flux LEDs. When tested as a pair, the Type-X™ PRO produces 15,870 tested lumens, 26,270 raw lumens and a beam reaching 1 lux at 1,155 metres.

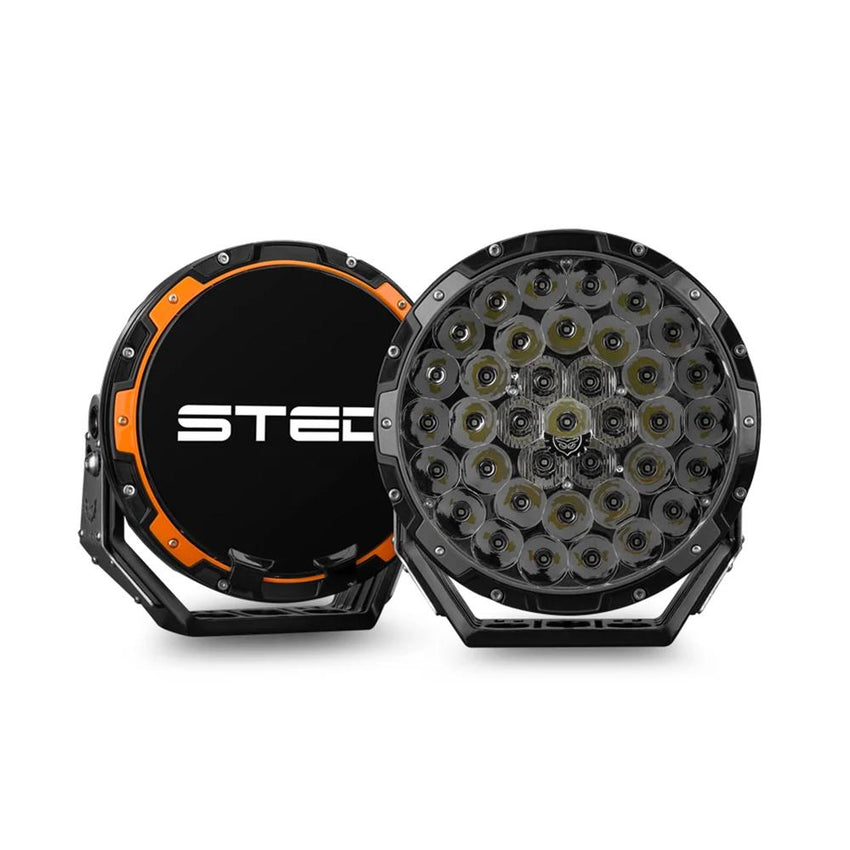

This product is supplied with two Type-X™ PRO driving lights, protective covers, interchangeable colour rings, a Smart High Beam wiring harness, stainless-steel fasteners and fitting instructions, ready for installation by your preferred workshop or qualified installer.

Key Features

• Supplied as a matched pair
• 37 x Oslon High-Flux LEDs in each driving light
• 15,870 tested lumens per pair
• 26,270 raw lumens per pair
• 1,334,025 candela per pair
• Beam reaches 1 lux at 1,155 metres
• Combined pencil and spread beam pattern
• Six integrated 50-degree spread reflectors in each light
• Thirty-one 5.8-degree pencil-beam reflectors in each light
• 5700K colour temperature
• Compatible with 12V and 24V electrical systems
• IP68-rated against dust and water ingress
• Submersible to a depth of up to 3 metres
• 10mm high-pressure die-cast aluminium mounting brackets
• Hard-coated optical-grade lenses
• UV-stabilised lens material
• Protective blackout covers included
• Interchangeable grey and orange colour rings included
• Supplied unfitted with wiring and mounting equipment

Long-Range Illumination

The Type-X™ PRO is designed to provide substantial forward visibility through the important mid-to-long-range driving area. Tested as a pair, the lights reach 1 lux at 1,155 metres, giving the driver more time to identify road conditions, wildlife, obstacles and changes in the track ahead.

The reflector geometry creates a smooth and consistent beam, reducing shadows and limiting wasted light immediately in front of the vehicle or above the useful driving area.

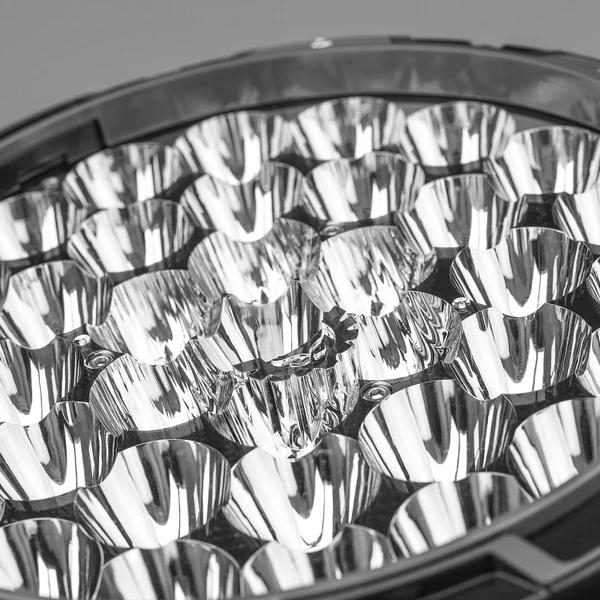

Combined Pencil and Spread Beam

Each Type-X™ PRO driving light contains two complementary reflector types:

• 31 x 5.8-degree pencil-beam reflectors for concentrated long-range projection
• 6 x 50-degree spread reflectors for broader road-edge and shoulder illumination

The integrated spread reflectors provide additional beam width without requiring separate diffusion covers. This preserves light transmission while producing a balanced combination beam suited to open roads, remote touring and off-road driving.

High-Flux LED Technology

Each light is equipped with 37 Oslon High-Flux LEDs selected for their high lumen density. Combined with the precision reflector system, the LEDs produce strong candela output and substantial usable light through the mid-to-long-range driving zone.

The pair produces 26,270 raw lumens and 15,870 tested lumens, with a combined peak intensity of 1,334,025 candela.

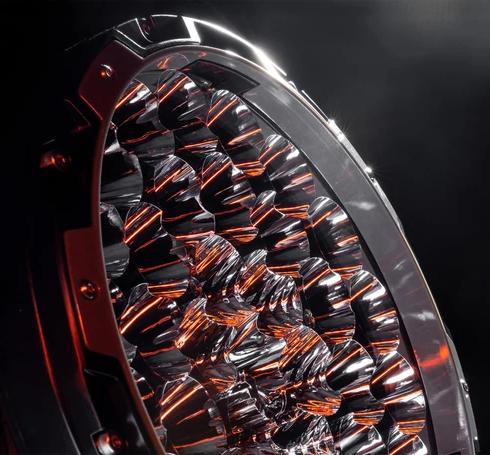

Hard-Coated Optical Lens

The optical-grade lens features a hard-coated surface designed to withstand demanding road and off-road environments. A UV stabiliser helps protect the lens against discolouration and degradation caused by prolonged sunlight exposure.

The lens and reflector system is designed to operate without additional beam covers or filters during normal use.

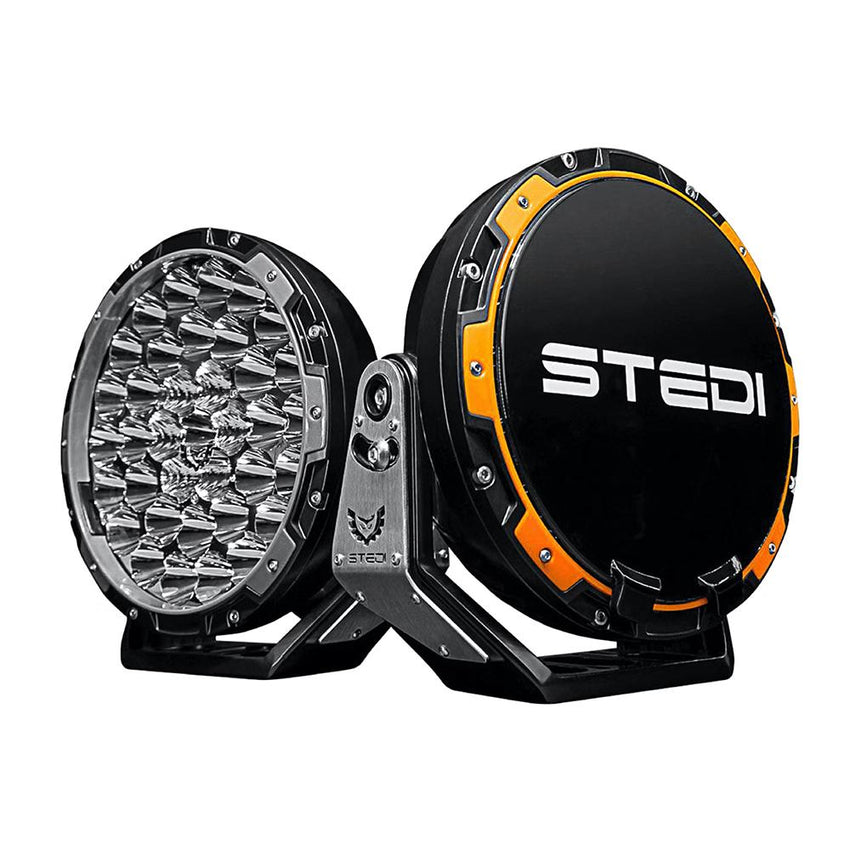

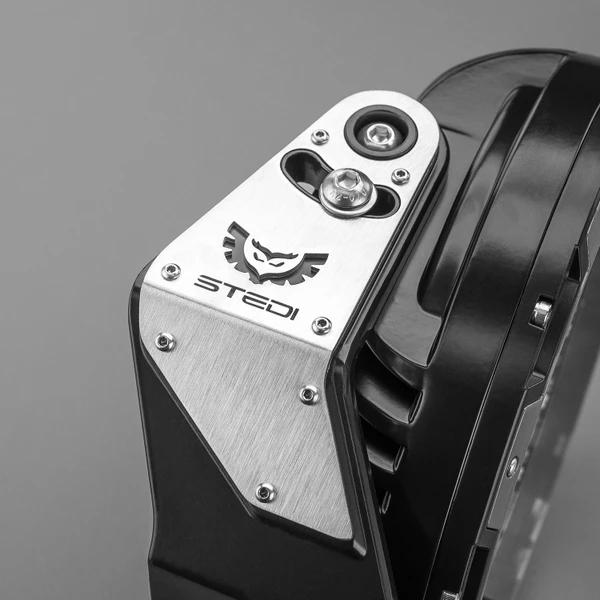

Heavy-Duty Mounting System

Each Type-X™ PRO driving light uses a substantial 10mm high-pressure die-cast aluminium bracket. The mounting system is designed to withstand vibration and prolonged use over corrugated and uneven roads.

A complete stainless-steel fastener kit is included for installation.

Designed for Harsh Conditions

• IP68 ingress-protection rating
• Submersible in water to a depth of up to 3 metres
• Operating temperature from -40°C to 60°C
• Hard-coated, UV-stabilised optical lenses
• Heavy-duty die-cast aluminium mounting brackets
• Stainless-steel mounting hardware
• Sealed DTP-2 electrical connectors

Smart High Beam Wiring Harness

The supplied wiring harness includes sealed DTP-2 connectors, a 60A relay, fuse, switch and H4 and HB3 high-beam adapter plugs. It provides the main electrical components required to connect the driving lights to a compatible vehicle high-beam circuit.

Some vehicles may require a different vehicle-specific piggyback adapter or additional installation components where the supplied H4 or HB3 adapters are not compatible.

Photometric Performance

• 10 metres: 13,340 lux
• 50 metres: 533 lux
• 200 metres: 33 lux
• 300 metres: 14 lux
• 400 metres: 8 lux
• 1,000 metres: 1.3 lux
• 1,155 metres: 1 lux

Specifications

• Product: STEDI Type-X™ PRO LED Driving Lights
• Quantity: Pair
• LED configuration: 37 x Oslon High-Flux LEDs per light
• Raw output: 26,270 lumens per pair
• Tested output: 15,870 lumens per pair
• Maximum beam distance: 1 lux at 1,155 metres
• Peak intensity: 1,334,025 candela per pair
• Beam pattern: Combined pencil and spread beam
• Spread reflectors: 6 x 50 degrees per light
• Pencil-beam reflectors: 31 x 5.8 degrees per light
• Colour temperature: 5700K
• Voltage compatibility: 12V and 24V
• Current draw: 10.4A at 13.2V per light
• Power draw: 137W per light
• Ingress protection: IP68
• Submersion rating: Up to 3 metres
• Operating temperature: -40°C to 60°C
• Lumen maintenance: 50,000 hours LM-80
• Weight: 2.86kg per light
• Bracket: 10mm high-pressure die-cast aluminium
• Lens: Hard-coated, UV-stabilised optical-grade lens
• Fitment: Supplied unfitted

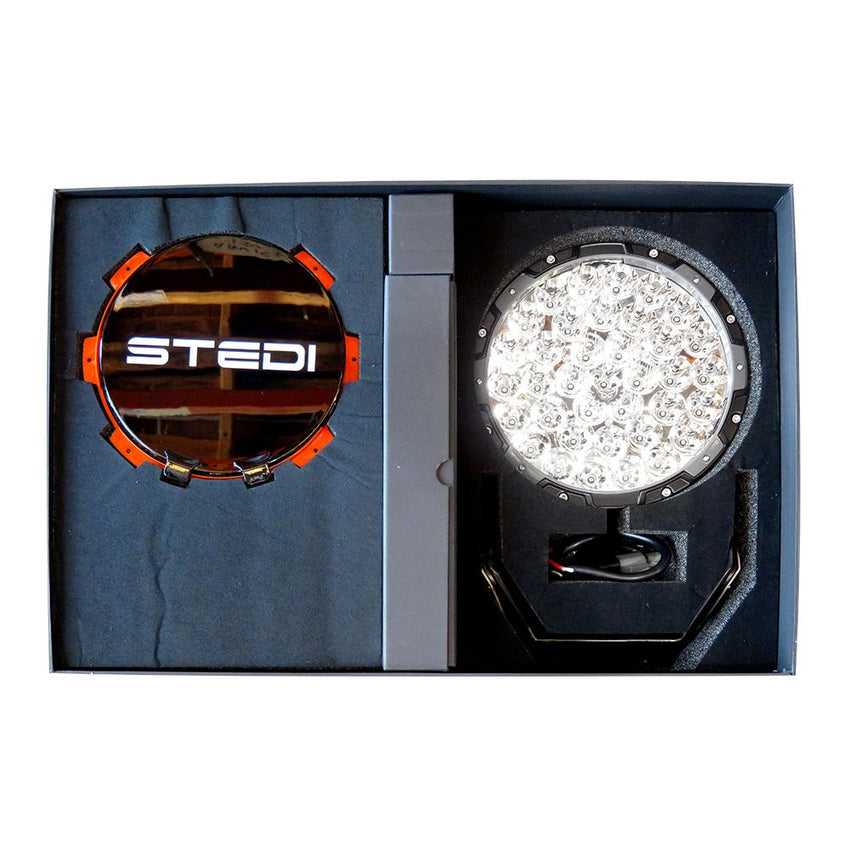

Included

• 2 x STEDI Type-X™ PRO LED driving lights
• 2 x protective STEDI blackout covers
• 2 x grey colour rings
• 2 x orange colour rings
• 1 x Smart High Beam wiring harness
• Sealed DTP-2 connectors
• H4 and HB3 high-beam adapter plugs
• 60A relay
• Fuse
• Cabin switch
• Complete stainless-steel fastener kit
• Wiring and fitting instructions

Ideal Applications

• Remote-area touring
• Highway and open-road night driving
• Outback travel
• 4WD touring vehicles
• Expedition vehicles
• Work vehicles operating after dark
• Vehicles requiring both long-range and road-shoulder illumination

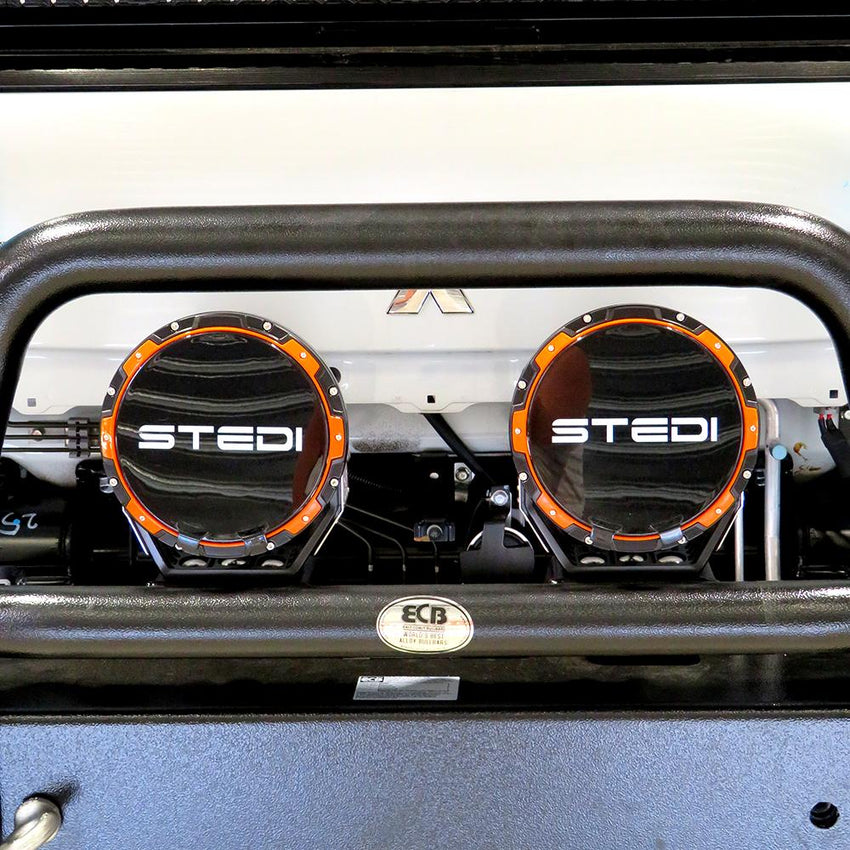

Important: This product is supplied unfitted. Final compatibility depends on the vehicle's bull bar or mounting structure, available clearance and high-beam wiring system. A vehicle-specific adapter, additional mounting hardware or professional installation may be required.
