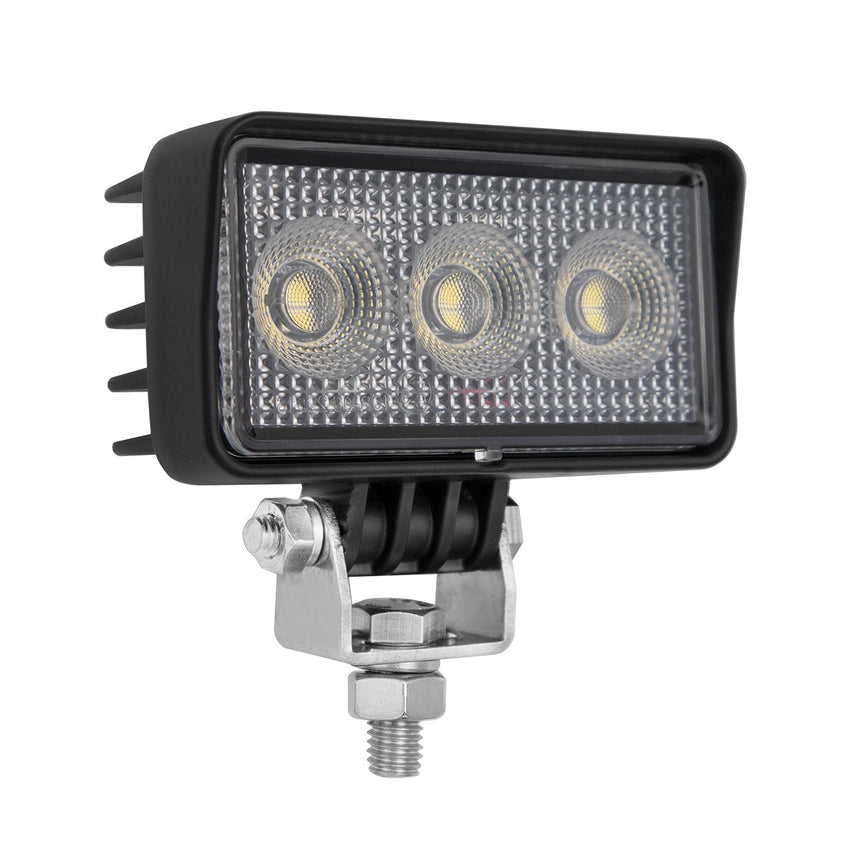

The Noxsolis NX532 is a compact 12W LED work light with a rectangular 3.5 x 2-inch housing and a standard flood beam. It is designed to provide broad illumination across nearby work areas, vehicle surroundings and access areas where a wide spread of light is more useful than a concentrated long-distance beam.
The NX532 produces 1,080 raw lumens and 900 effective lumens at a nominal colour temperature of 5700K. Its 12–24V DC operating range allows it to be installed on compatible 12V and 24V vehicle electrical systems.
This product includes one Noxsolis NX532 work light professionally fitted by AAV4x4 at our Brendale workshop. Installation includes secure mounting, electrical connection, beam positioning and operational testing.
The NX532 uses a standard flood beam designed to distribute light across a broad area rather than concentrating it into a narrow driving beam. This makes it suitable for illuminating nearby work zones, machinery, vehicle surroundings and loading or access areas.

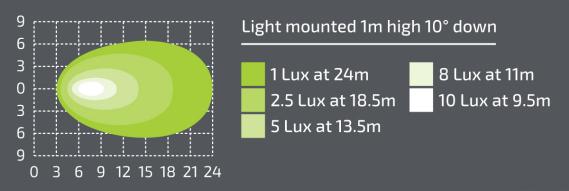

With the light mounted one metre high and aimed 10 degrees downward, the manufacturer lists the following beam performance:
The NX532 produces 1,080 raw lumens and 900 effective lumens. Raw lumens represent the calculated output of the LEDs, while effective lumens represent the measured light output after normal losses through the completed light assembly and lens.
The LED has a nominal colour temperature of 5700K, producing a clean white light suited to illuminating work areas and surrounding objects.
The NX532 operates on 12–24V DC electrical systems, making it suitable for compatible 12V and 24V vehicles and equipment.

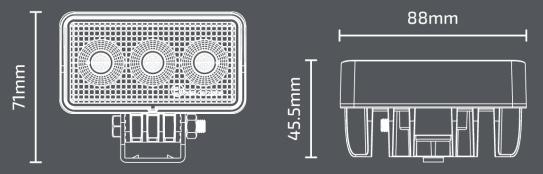

The work light uses a black die-cast aluminium housing and a clear polycarbonate outer lens. Its compact rectangular housing measures 88mm wide, 71mm high and 45.5mm deep.
The NX532 is rated IP66 against water spray and IP68 for submersion. These ratings provide protection against water and dust intrusion when the light is correctly installed and used within its rated conditions.
The NX532 is certified to CISPR 25 Class 3 and ECE Regulation 10 EMI requirements. These standards relate to electromagnetic compatibility and the control of electrical interference with vehicle systems and radio equipment.
This product is professionally fitted by AAV4x4 at our Brendale workshop. Installation includes:
The final mounting position and beam direction depend on the vehicle, its existing equipment and the available mounting location.
| Product | Noxsolis NX532 LED Slim Work Light |
|---|---|
| Quantity | 1 work light |
| Light type | LED work light |
| Shape | Rectangular |
| Nominal size | 3.5 x 2 inches |
| Beam pattern | Forward lighting – standard flood |
| Raw lumen output | 1,080 lumens |
| Effective lumen output | 900 lumens |
| Colour temperature | 5700K nominal |
| Input voltage | 12–24V DC |
| Operating voltage | 12–24V DC |
| Power | 12W |
| Current draw at 13.8V | 0.87A |
| Current draw at 24V | 0.5A |
| Width | 88mm |
| Height | 71mm |
| Depth | 45.5mm |
| Housing material | Die-cast aluminium |
| Housing colour | Black |
| Outer lens material | Polycarbonate |
| Outer lens colour | Clear |
| Ingress protection | IP66 spray and IP68 submersion |
| EMI certification | CISPR 25 Class 3 and ECE Regulation 10 |
| Weight | 0.27kg |
| Installation | Professionally fitted by AAV4x4 at Brendale |
Final mounting position and beam direction depend on the vehicle, the intended use, existing accessories and the available mounting location. Additional vehicle-specific electrical or mounting components may be required.
