This lockable gravity water inlet provides a practical external filling point for a compatible fresh-water tank in a motorhome, caravan, camper trailer, expedition vehicle or other suitable mobile installation.
The angled filler neck connects to a hose with an approximate 38mm internal diameter, allowing water to flow into the tank by gravity. A separate 10mm vent connection allows displaced air to escape during filling, helping promote a smoother fill and reduce water backing up through the inlet.

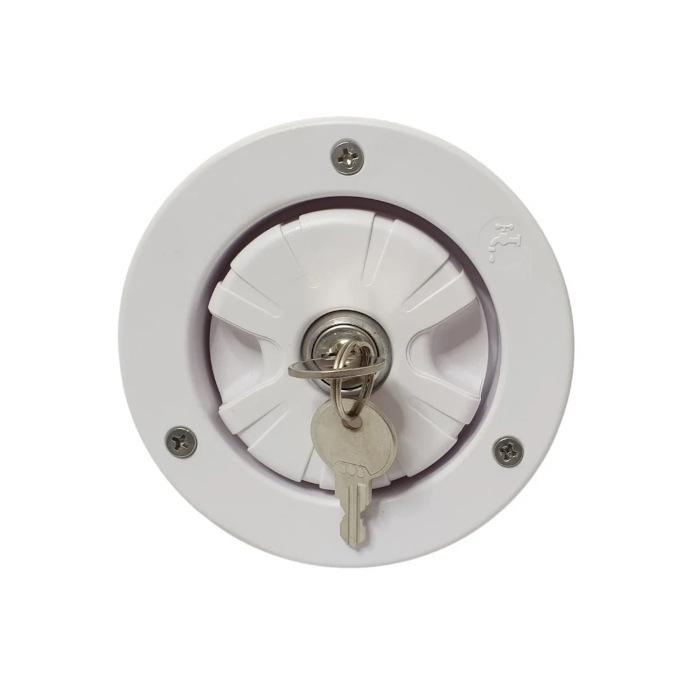

The white plastic housing incorporates a lockable bayonet-style cap, sealing ring and spring-loaded retaining design. Two keys and four mounting screws are supplied.
This product is supplied unfitted.
The inlet is designed for filling a compatible onboard fresh-water tank without requiring a pressurised mains-water connection.
Water introduced through the filler opening travels through the connected 38mm hose and into the tank under gravity. The large filler connection provides a direct path for normal tank-filling flow.

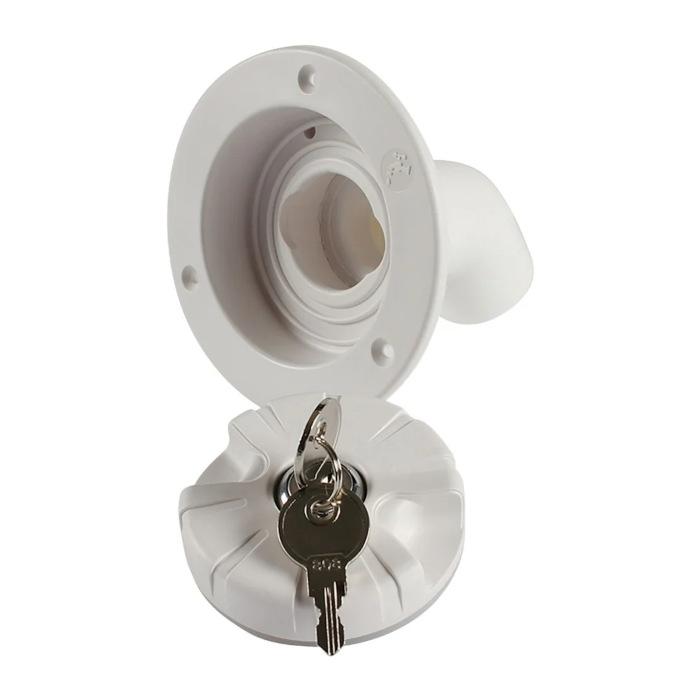

The filler uses a bayonet-style cap that engages with the inlet body using a push-and-turn action.

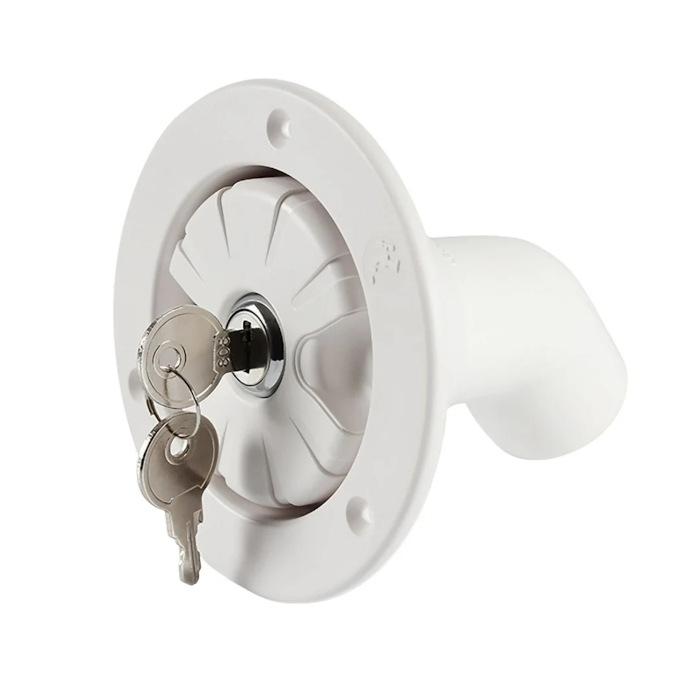

An integrated key lock helps restrict access to the water inlet while the vehicle is parked or unattended. Two matching keys are supplied so a spare can be stored separately.
The cap incorporates a sealing ring designed to help limit water, dust and debris entering through the filler opening when the cap is correctly closed.
The spring-loaded retaining design helps keep the cap seated and reduces the chance of it loosening during normal vehicle movement.
A separate 10mm vent connection allows air displaced by incoming water to escape from the tank during filling.
Correct tank ventilation helps:
The vent hose must be routed correctly and must remain free from kinks, restrictions and low points that could trap water.

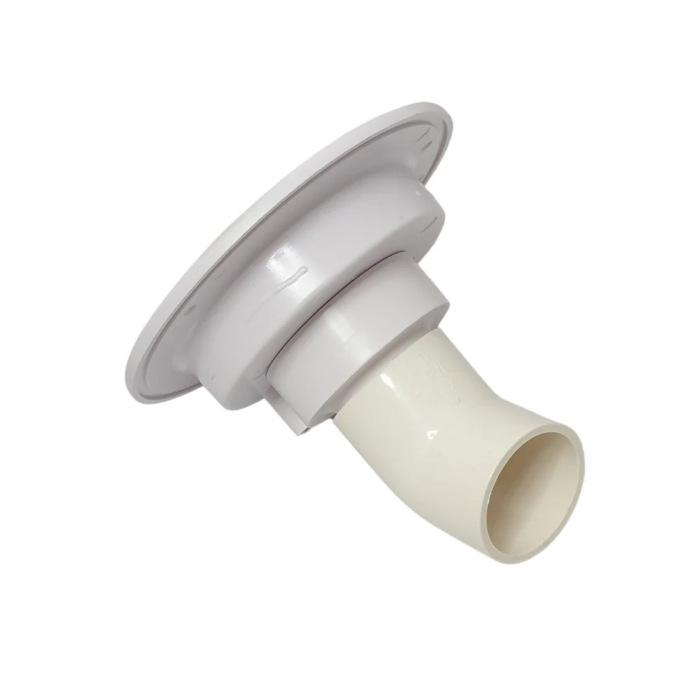

The rear hose connection is angled to help direct the filler hose away from the mounting panel and toward the fresh-water tank.
The available clearance behind the installation panel must be checked before cutting the mounting opening.
The main hose connection is designed for compatible fresh-water filler hose with an approximate internal diameter of 38mm.
The hose must be secured using a suitable corrosion-resistant clamp and routed continuously toward the tank without sharp bends, crushing or unnecessary restrictions.
| Product | Lockable Gravity Fresh-Water Inlet Filler |
|---|---|
| Filling method | Gravity feed |
| Application | Compatible onboard fresh-water tanks |
| Construction | Plastic |
| Colour | White |
| Cap type | Lockable bayonet-style cap |
| Installation opening | Approximately 80mm |
| Filler-hose compatibility | Approximately 38mm hose internal diameter |
| Vent connection | Approximately 10mm |
| Filler-neck orientation | Angled rear connection |
| Cap sealing | Integrated sealing ring |
| Locking keys | 2 supplied |
| Mounting screws | 4 supplied |
| Approximate product weight | 195g |
| Installation | Supplied unfitted |
This product is supplied unfitted. Confirm the required mounting opening, available rear clearance, panel thickness, filler-hose size and vent-hose size before installation.
Filler hose, vent hose, hose clamps, sealant and other installation materials are not listed as included.
The mounting flange must be sealed to the vehicle body using a suitable sealant to help prevent water entering around the installation opening.
The filler hose and vent hose must be securely connected and routed without kinks or restrictions. All connections should be inspected for leaks before the water system is placed into service.
This inlet is intended for a compatible fresh-water system. It must not be used as a fuel filler or connected to a pressurised mains-water supply.
