AAV4X4
SKU: 214658
Back Order - This item is currently out of stock and will be placed on back order if purchased
Order Item - This product may need to be assembled or ordered in depending on current stock. If components are available, it is usually ready within approximately 1-3 business days. We will contact you if there are any delays.

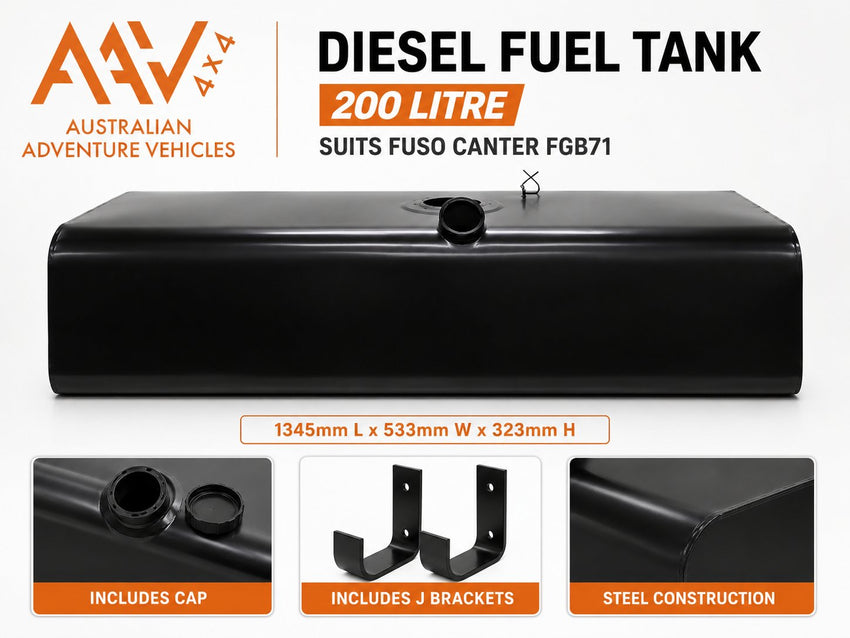

This professionally fitted 200-litre steel replacement fuel tank package is designed for compatible Fuso Canter FGB71 vehicles, providing substantially increased onboard diesel capacity in a long, slim-line chassis-mounted design.
The complete package combines the 200L steel fuel tank, its dedicated mounting kit and matching lockable fuel cap, with professional installation by AAV4x4 at our Brendale workshop.
The tank features heavy-duty steel construction, a black protective finish and internal baffling to help control fuel movement during acceleration, braking, cornering and travel over uneven terrain. It is also designed to accept the compatible Fuso fuel pickup and fuel-level sender arrangement.
The 200-litre tank provides substantial diesel storage for Fuso vehicles used for long-distance touring, remote-area travel, motorhome builds and commercial applications.
The increased capacity provides greater flexibility between fuel stops and is particularly useful when travelling through remote areas where diesel availability may be limited or widely spaced.
The tank uses a long rectangular profile designed to provide substantial fuel capacity while remaining relatively slim across the chassis.
The tank dimensions are approximately:
The tank is commonly referred to as the nominal 1400mm-long 200L Fuso tank.
The fuel tank is manufactured from steel for a robust truck-grade construction suitable for touring, expedition and commercial vehicle use.
A black protective exterior finish provides additional protection to the steel tank when installed along the vehicle chassis.
Internal baffling helps control the movement of diesel within the tank as the vehicle accelerates, brakes, corners or travels across uneven terrain.
This is particularly useful with a 200-litre tank, where the mass of the fuel can otherwise shift considerably as vehicle speed and direction change.
The package includes the dedicated mounting system matched specifically to the 200-litre tank rather than relying on universal fuel-tank brackets.
The mounting kit incorporates:
The formed brackets provide structural support beneath and alongside the tank, while the retaining straps secure it against movement and vibration once installed.
A matching lockable fuel tank cap is included with the package.
The key-operated cap helps restrict unauthorised access to the diesel supply and provides additional security against casual fuel siphoning or tampering through the filler opening.
Two matching keys are supplied, allowing one to be retained separately as a spare.
The tank is designed to accept a compatible Fuso fuel pickup and fuel-level sender arrangement.
During installation, the applicable fuel-system components are integrated with the replacement tank so the vehicle can draw fuel from the new tank and retain compatible fuel-level monitoring.
A threaded drain provision is incorporated into the bottom of the tank to assist with fuel removal, maintenance or cleaning where required.
The published bottom drain thread is M30 x 1.5.
The tank also incorporates M16 x 1.5 threaded side bung provisions.
These provide additional connection options where required by the completed fuel-system configuration. Any unused ports remain securely sealed during installation.
The increased fuel capacity makes this replacement tank particularly suitable for:
This package is professionally fitted by AAV4x4 at our Brendale workshop.
Installation includes:
| Product | Fuso Canter FGB71 Steel Slim-Line Replacement Fuel Tank – Fitted |
|---|---|
| Vehicle application | Compatible Fuso Canter FGB71 vehicles |
| Fuel type | Diesel |
| Nominal capacity | 200 litres |
| Material | Steel |
| Finish | Black protective finish |
| Tank design | Slim-line rectangular replacement tank |
| Internal baffling | Yes |
| Approximate tank length | 1345mm |
| Approximate tank width | 533mm |
| Approximate tank height | 323mm |
| Nominal length reference | 1400mm |
| Fuel pickup / sender provision | Designed for compatible Fuso fuel pickup and sender components |
| Bottom drain thread | M30 x 1.5 |
| Side bung threads | M16 x 1.5 |
| Tank mounting | Dedicated support brackets and retaining straps |
| Fuel cap | Lockable cap included |
| Fuel-cap keys | 2 |
| Installation | Professionally fitted by AAV4x4 at Brendale |
This is the professionally fitted version of the 200L Fuso Canter FGB71 steel slim-line replacement fuel tank package.
The tank is commonly described by its nominal 1400mm length; its actual published length is approximately 1345mm.
Final fitment depends on the individual Fuso configuration, chassis equipment, body installation and surrounding accessories.
The additional mass of the larger fuel tank and its diesel load must be included when calculating vehicle payload, axle loading and GVM.
All tank supports, retaining straps, fuel hoses, filler connections, breather components and seals should be inspected as part of normal vehicle servicing, particularly after extended travel on rough or corrugated roads.
