Fuso 2011+ TM Suspension FITTED Front Multi Leaf & Blocked Rear + Rt Cs

Fuso 2011+ TrackMaster Front Multi-Leaf & Blocked Rear Suspension with Remote-Canister Shocks – Fitted

Complete fitted TrackMaster suspension upgrade for compatible Fuso Canter 4x4 models from 2011 onwards.

This configuration combines upgraded front heavy-duty multi-leaf springs with the original rear spring arrangement using the applicable rear block kit, plus adjustable remote-canister shock absorbers at the front and rear.

The fitted package also includes the applicable custom front driveshaft for the modified suspension configuration and a wheel alignment.

Key Features

• TrackMaster suspension configuration for compatible Fuso 2011+ applications
• Front heavy-duty multi-leaf spring upgrade
• Blocked OEM rear spring arrangement
• Front and rear remote-canister shock absorbers
• 66mm shock body specification
• 22mm hard-chrome-plated shock shaft
• 15-stage rebound adjustment
• 60mm remote reservoir
• 10-stage high-speed compression adjustment
• 20-stage low-speed compression adjustment
• Braided high-pressure reservoir hose arrangement
• Applicable replacement U-bolts and polyurethane bush components
• Custom front driveshaft for the modified suspension configuration
• Wheel alignment included
• Professionally fitted by AAV4x4

Front Multi-Leaf Spring Upgrade

The front suspension is upgraded from the standard configuration using the applicable TrackMaster heavy-duty multi-leaf spring arrangement.

Blocked Rear OEM Suspension

The rear configuration retains the applicable OEM rear spring arrangement and uses the TrackMaster rear block add-on configuration rather than a complete rear multi-leaf replacement.

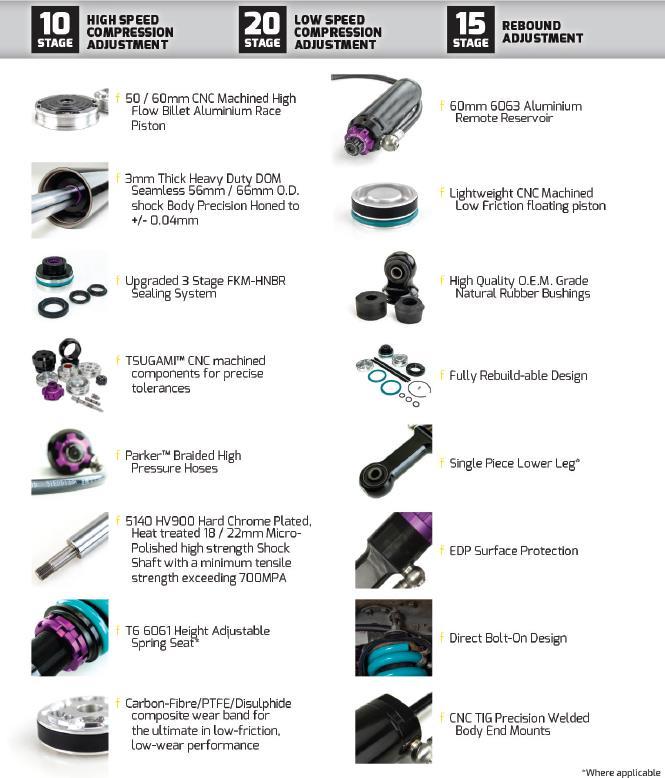

Remote-Canister Shock Absorbers

Front and rear remote-canister shock absorbers are used throughout the package.

The current TrackMaster specification lists a 66mm shock body, 22mm hard-chrome-plated shaft and three-stage sealing arrangement.

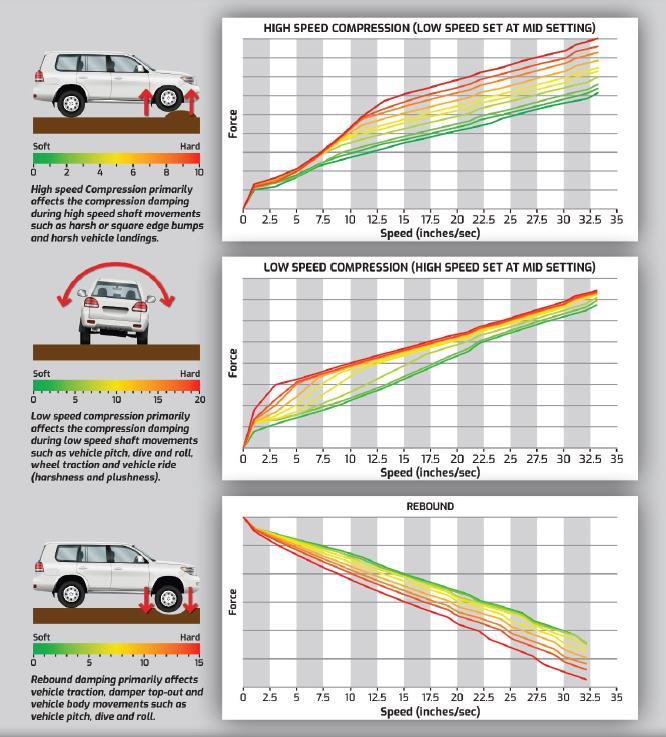

Adjustable Damping

The TrackMaster damper configuration provides 15 stages of rebound adjustment.

The remote reservoir provides separate 10-stage high-speed compression and 20-stage low-speed compression adjustment.

Custom Front Driveshaft

The fitted package includes the applicable custom front driveshaft used with the modified Fuso suspension configuration.

Wheel Alignment

A wheel alignment forms part of the completed fitted suspension package.

Professional AAV4x4 Installation

AAV4x4 installs the suspension components, shock absorbers, rear block arrangement and applicable driveline components before completing the final wheel alignment.

Specifications

Included

• Front heavy-duty multi-leaf spring upgrade
• Rear OEM spring block configuration
• 2 x front remote-canister shock absorbers
• 2 x rear remote-canister shock absorbers
• Applicable U-bolts and polyurethane bush components
• Custom front driveshaft
• Professional suspension installation
• Wheel alignment
