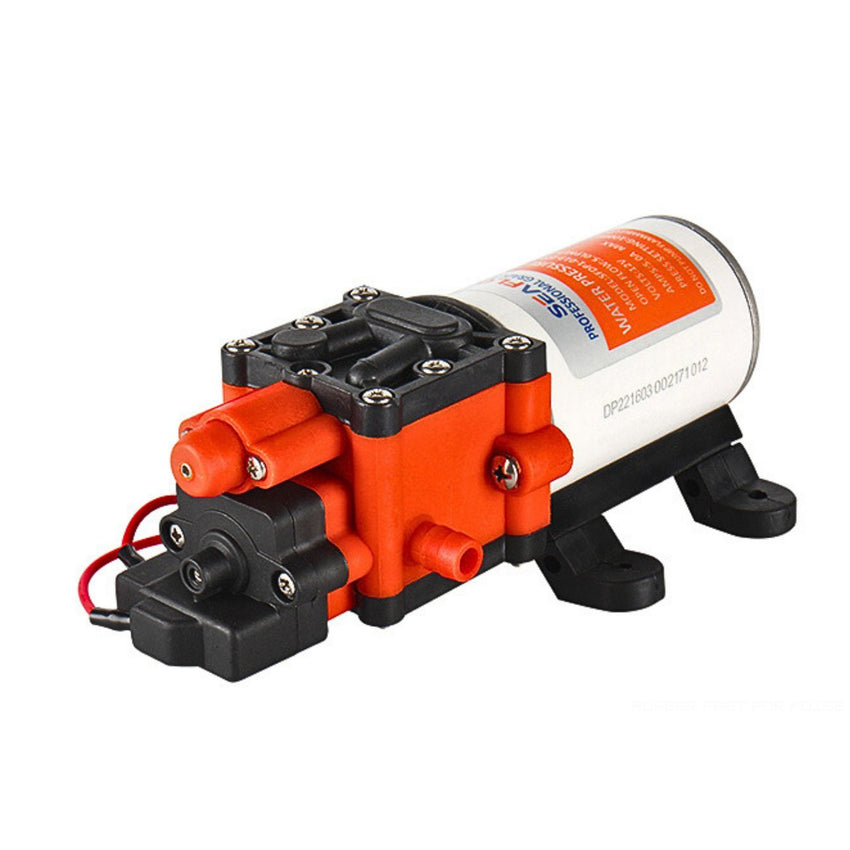

The Seaflow 12V 22 Series 1.3GPM water pump is a compact automatic demand diaphragm pump suited to small pressurised water systems, liquid transfer, spraying, circulation, filtration and dispensing applications.
This unit is the 12V 22 Series version with a 1.3GPM / 5.0LPM open flow rate and 100PSI / 6.9BAR shut-off pressure. It is a practical option for caravans, RVs, boats, service vehicles, camper builds, small water treatment systems and general 12V transfer or pressurisation setups.
The pump has a built-in pressure switch, allowing it to automatically start when an outlet is opened and stop when the outlet is closed. Internal bypass technology helps reduce cycling, while the self-priming diaphragm design allows the pump to be mounted above the water source when installed correctly.
Product Details
-
Product: Seaflow Water Pump 12V 22 Series 1.3GPM
-
AAV SKU: 940536
-
Series: 22 Series DC diaphragm pump
-
Voltage: 12V DC
-
Open flow: 1.3GPM / 5.0LPM
-
Shut-off pressure: 100PSI / 6.9BAR
-
Maximum current draw: 6.0A
-
Pump type: 2 chamber positive displacement diaphragm pump
-
Operation: Automatic demand pressure switch
-
Priming capability: Up to 6ft / 1.8m suction lift
-
Maximum liquid temperature: 60°C
-
Ports: 3/8" hose barb / 10mm inlet and outlet
-

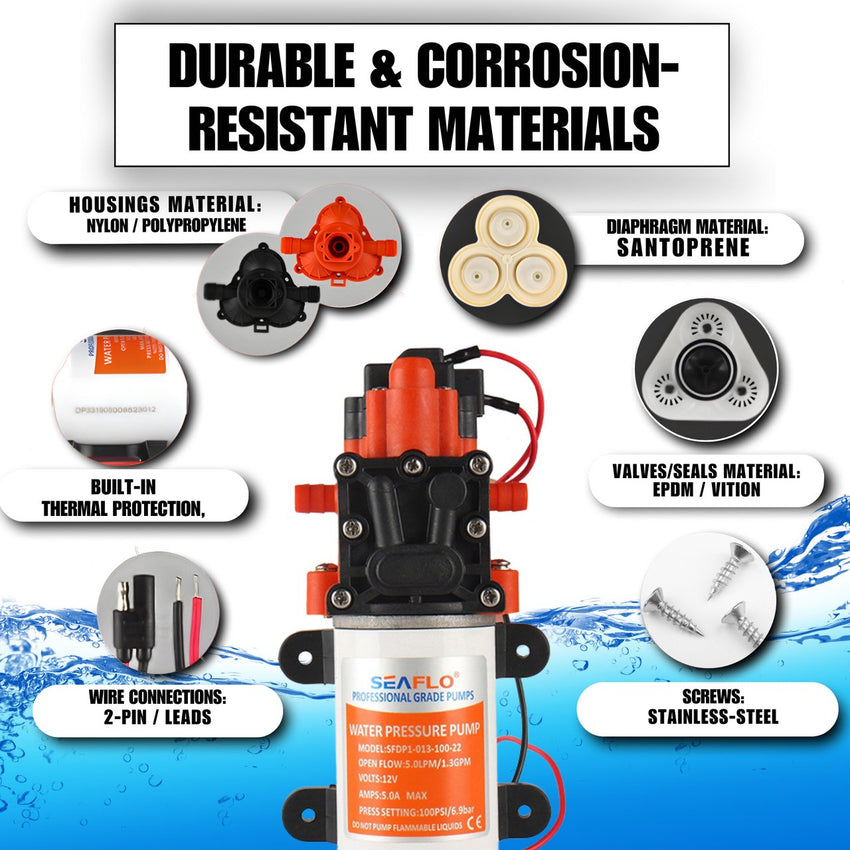

Valve material: EPDM
-
Diaphragm material: Santoprene
-
Approximate dimensions: 187mm long x 98mm wide x 72mm high
-
Approximate weight: 1.18kg

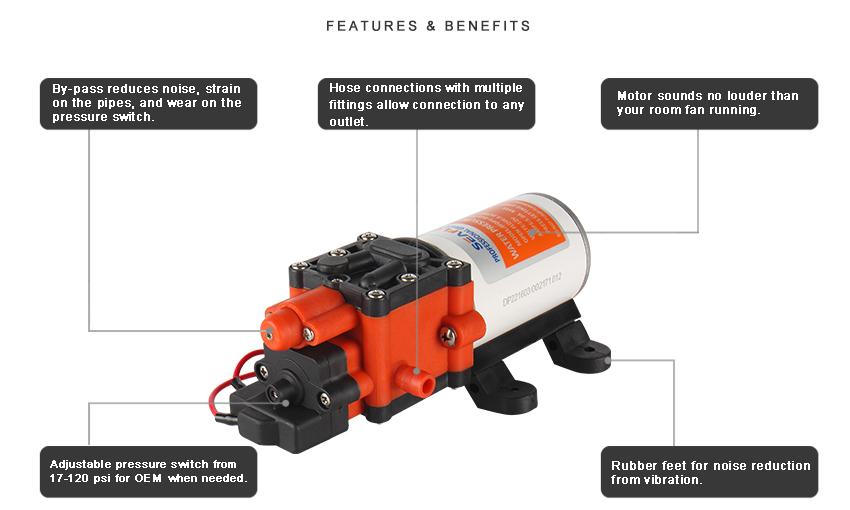

Key Features
- Compact 12V automatic demand water pump
- 1.3GPM / 5.0LPM open flow rate
- High 100PSI / 6.9BAR shut-off pressure

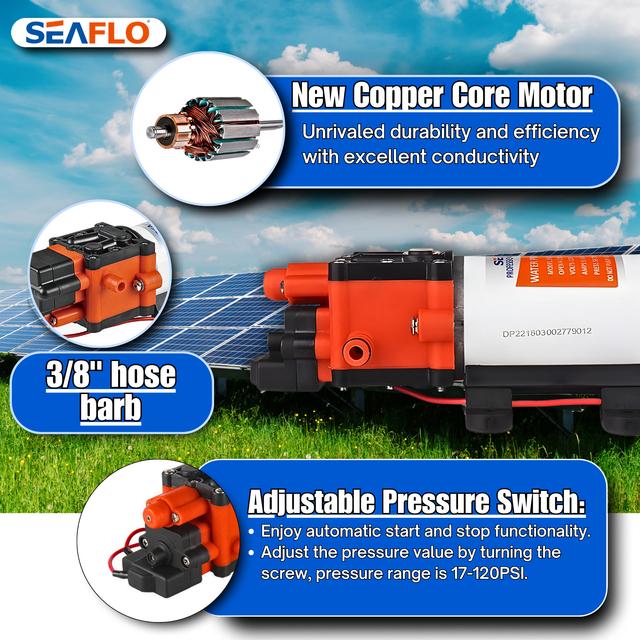

- Built-in pressure switch starts and stops the pump as outlets are opened and closed
- Internal bypass technology to help reduce pump cycling
- Self-priming design
- Run-dry safe design
- Quiet operation
- Built-in check valve
- Soft rubber mounts to help reduce vibration
- Compact size for tight installation areas
- Suitable for supplying 1-2 small fixtures
Common Uses
- Caravan, RV and motorhome water systems
- Boat and marine pressurised water systems
- Small 12V vehicle water systems
- Liquid transfer applications
- Sprayer fixtures and vehicle-mounted sprayers
- Circulation and filtration systems
- Water treatment and reverse osmosis systems
- Food and beverage filling or liquid dispensing applications
- General industrial or automotive pressurisation systems
Installation Notes
- Designed for 12V DC electrical systems only.
- Use suitable wiring, fuse protection and correct polarity when installing.
- The pump should be mounted securely using the rubber mounting feet.
- Use compatible 3/8" / 10mm hose connections.
- A filter or strainer should be used before the pump where debris may be present in the water supply.
- Final suitability depends on the water source, plumbing layout, number of outlets, wiring setup and intended use.
Important: This is a compact 12V 1.3GPM pressure pump, not a high-flow washdown pump. Confirm voltage, flow rate, pressure requirements, hose size, mounting space and intended application before ordering.
