The Seaflo 24V 70PSI washdown pump kit is a heavy-duty washdown system designed for vehicles, boats, campers, RVs and off-grid setups that need a strong pressurised water outlet for cleaning duties.
This kit is suited to washing down decks, tools, recovery gear, fish boxes, anchor wells, dinghies, machinery, vehicle areas and other outdoor equipment where a compact 24V pressure pump and spray gun setup is required.
The pump uses an on-demand pressure switch, so it automatically runs when the trigger nozzle is used and stops when the nozzle is released. With a 70PSI shut-off pressure and approximately 5.0GPM / 18.9LPM open flow, it provides solid washdown performance for stubborn dirt, mud and general cleaning.
Product Details
-
Product: Seaflo Washdown Pump Kit 24V 70PSI
-
SKU: 940549
-
Voltage: 24V DC
-
Pump type: 5 chamber positive displacement diaphragm pump
-
Open flow: Approximately 5.0GPM / 18.9LPM
-
Shut-off pressure: 70PSI / 4.8BAR
-
Control type: Pressure switch / on-demand operation
-
Port size: 1/2"-14 MNPT inlet and outlet
-
Valve material: EPDM
-
Diaphragm material: Santoprene
-
Application: Fresh water and saltwater washdown use

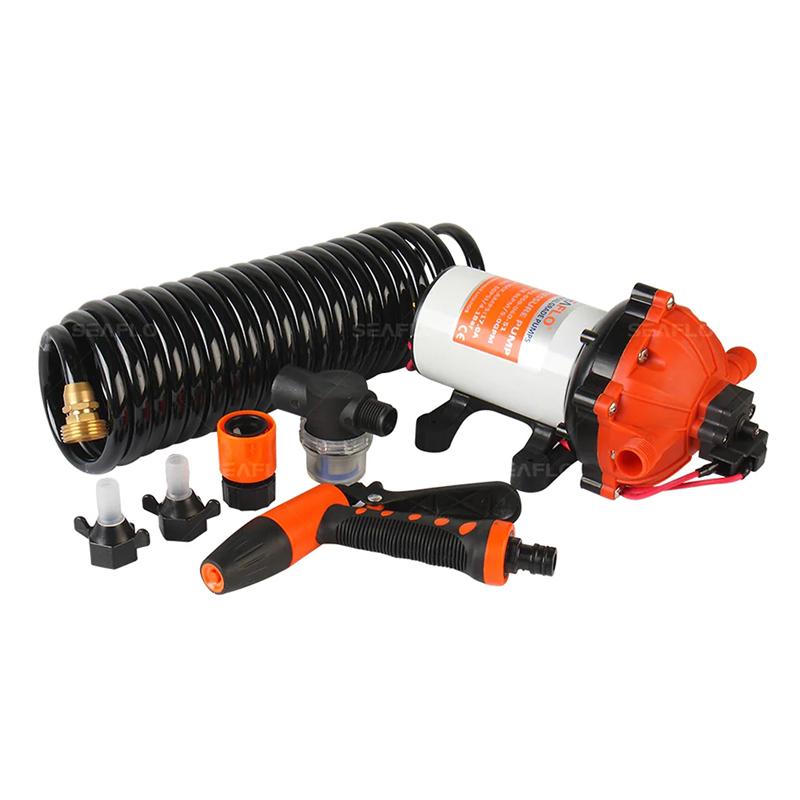

Kit Includes
- 24V Seaflo washdown pump
- Coiled washdown hose
- Trigger nozzle with quick connect
- Quick-connect adaptor
- NPT hose connections
- Filter / strainer
- Mounting feet on pump base
Key Features
- Heavy-duty washdown pump kit
- 70PSI pressure cut-off for strong cleaning performance
- Approximately 5.0GPM / 18.9LPM open flow
- On-demand operation through the pressure switch
- Self-priming diaphragm pump design
- Can run dry
- Quiet operation
- Easy-connect fittings
- Ignition protected
- Rubber mounting feet to help reduce vibration and noise
- Corrosion-protected motor body for tougher working environments
Common Uses
- Boat and deck washdown
- Cleaning fish boxes, anchor wells and dinghies
- Cleaning mud, dust and grime from vehicle equipment
- Camper, caravan and RV external washdown systems
- Off-road touring and work vehicle water systems
- Machinery, tools and general outdoor cleaning
Installation Notes
- Designed for 24V DC electrical systems.
- The pump should be mounted securely using the rubber mounting feet.
- The supplied filter / strainer should be fitted before the pump to help protect it from debris.
- Correct wiring size, fuse protection and polarity should be confirmed before installation.
- Final suitability depends on the water tank location, plumbing layout, hose routing, electrical supply and intended washdown use.
Important: This is a 24V washdown pump kit for cleaning and washdown applications. Confirm voltage, mounting space, hose routing, plumbing connections and electrical requirements before ordering.
