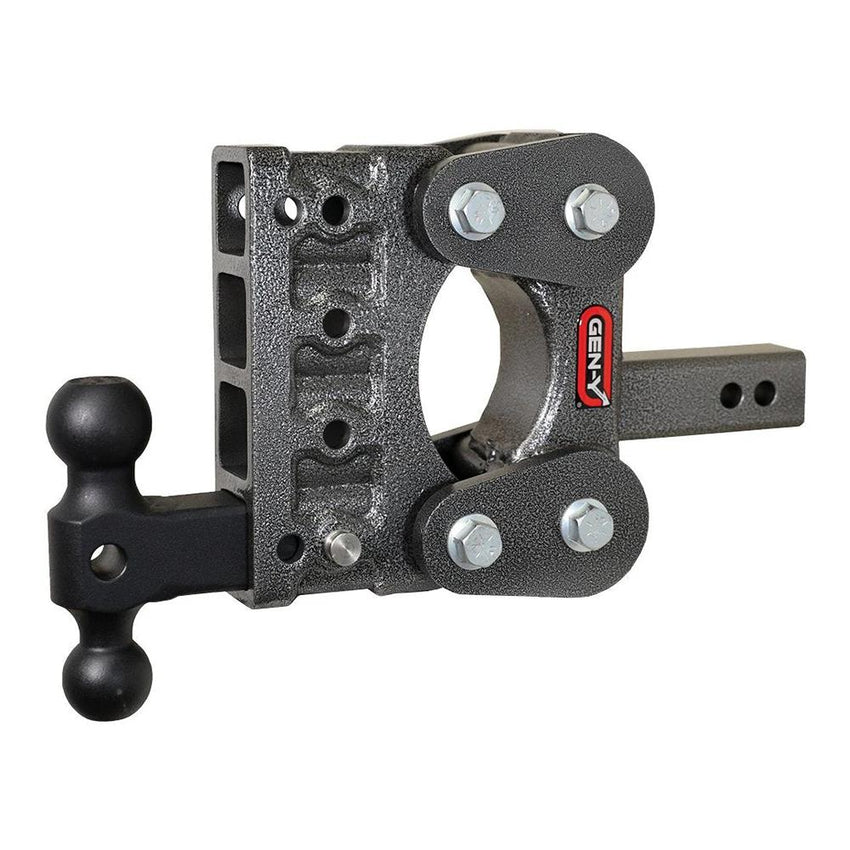

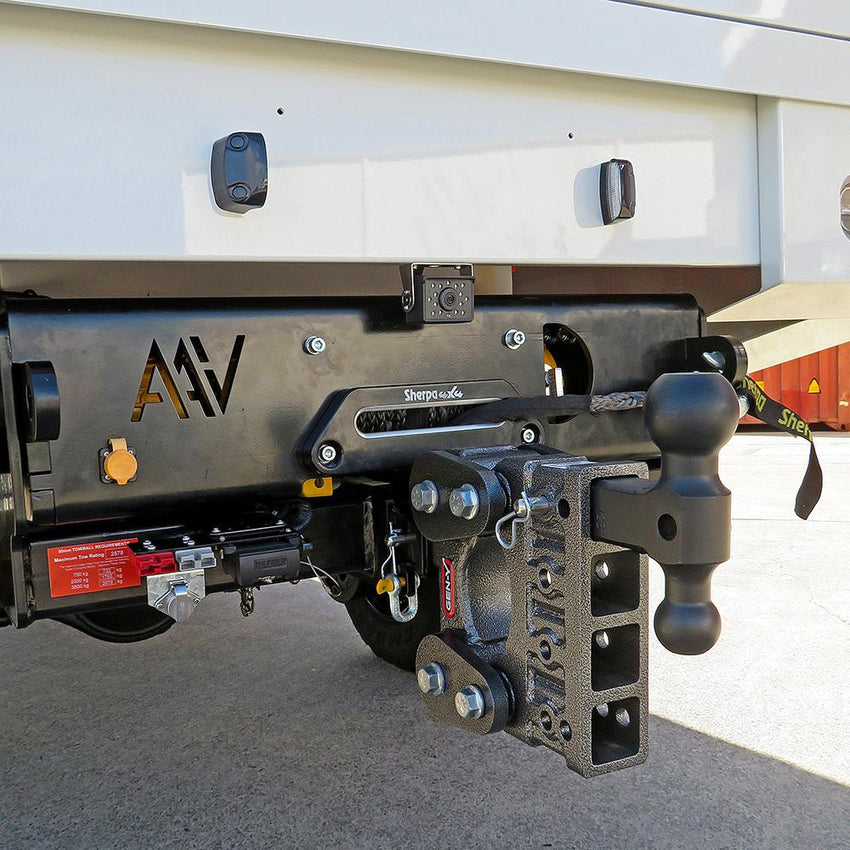

Gen-Y 5” Drop 4500 Kg Hitch & Versa-Ball (50 Mm & 70Mm)

The Gen-Y 5" Drop 4500kg Hitch with Versa-Ball (50mm & 70mm) is a premium heavy-duty adjustable hitch that offers outstanding versatility for owners towing multiple trailer types. Featuring Gen-Y's interchangeable Versa-Ball, this hitch provides both 50mm and 70mm tow balls in a single assembly, allowing you to quickly adapt to different trailers without changing ball mounts.

Rated to tow up to 4,500kg with a maximum 600kg tongue weight, this hitch is engineered for demanding recreational, commercial and agricultural towing. The adjustable 5" drop allows the hitch height to be easily matched to different trailer drawbar heights, helping maintain a level towing setup for improved handling, braking performance and stability.

Features

• Maximum towing capacity: 4,500kg
• Maximum tongue weight: 600kg
• 5" drop configuration
• Three adjustable height positions
• Class IV 2" receiver shank
• Supplied with a genuine Versa-Ball featuring both 50mm and 70mm tow balls
• Heavy-duty fabricated steel construction
• Precision-machined components
• Durable powder-coated finish
• Compatible with other Gen-Y interchangeable hitch attachments
• Designed for use in either the drop or rise position
• Made in the USA

Two Ball Sizes in One Hitch

The supplied Versa-Ball combines both a 50mm and a 70mm tow ball into a single interchangeable attachment. Simply rotate the ball mount to the required size, making it quick and easy to switch between trailers without carrying multiple ball mounts.

This makes the hitch an ideal solution for owners who regularly tow different caravans, horse floats, machinery trailers, agricultural equipment or commercial trailers fitted with different coupling sizes.

Adjustable Height

The 5" drop provides three selectable mounting positions, allowing the tow ball height to be adjusted to suit different trailers. Correctly levelling the trailer helps improve towing stability, promotes more even weight distribution and enhances braking performance.

Heavy-Duty Construction

Manufactured from high-strength fabricated steel, the Gen-Y Mega-Duty Hitch is built to withstand demanding towing conditions. Precision-machined components and a durable powder-coated finish provide excellent strength and corrosion resistance, making it suitable for regular use in harsh Australian environments.

Interchangeable Hitch Platform

As part of the Gen-Y Mega-Duty range, this hitch accepts a variety of interchangeable attachments. Should your towing requirements change, the Versa-Ball can be replaced with compatible Gen-Y accessories such as a single 50mm ball, an Australian Tongue for DO45 couplings or a Pintle Lock.

Benefits

• One hitch suits multiple trailer coupling sizes
• Quick height adjustment for different trailers
• Helps maintain a level trailer for improved towing performance
• Eliminates the need for multiple fixed-height drop hitches
• Heavy-duty construction for demanding towing applications
• Suitable for both drop and rise configurations

Ideal Applications

• Heavy caravans
• Camper trailers
• Horse floats
• Boat trailers
• Plant and machinery trailers
• Agricultural equipment
• Commercial towing fleets
• General heavy-duty towing

Specifications

• Maximum towing capacity: 4,500kg
• Maximum tongue weight: 600kg
• Receiver size: Class IV 2"
• Drop: 5"
• Adjustable positions: 3
• Ball sizes: 50mm and 70mm Versa-Ball
• Construction: Heavy-duty fabricated steel
• Finish: Durable powder-coated finish
• Country of manufacture: USA

Maintenance

Inspect the hitch, Versa-Ball, retaining pins and mounting hardware before towing. Keep all components clean, ensure moving parts operate freely and replace any worn or damaged components before use.

Important: Always ensure the tow vehicle, receiver, trailer coupling and every component of the towing system are correctly rated for the intended load. The maximum towing capacity of the complete towing combination is determined by the lowest-rated component.
