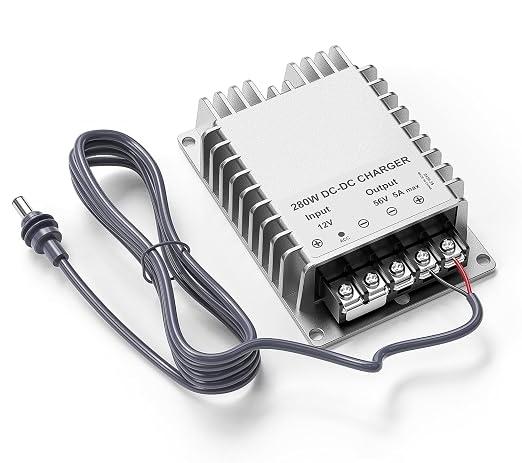

12V/24V To 56V Converter For Starlink gen 3

Power your Starlink Gen 3 system directly from a 12V or 24V battery with this purpose-built 12V/24V to 56V DC-DC Converter. Designed specifically for mobile and off-grid installations, it eliminates the need for a 240V inverter by efficiently converting vehicle battery voltage into the regulated 56V DC supply required by Starlink Gen 3 hardware.

By removing the inefficiencies associated with running an inverter, this converter helps reduce power consumption, minimise heat generation and simplify your electrical installation. It is an ideal solution for touring vehicles, expedition trucks, caravans, motorhomes and remote work vehicles where battery capacity and efficiency are important.

Features

• Designed for Starlink Gen 3 systems requiring a regulated 56V DC supply
• Wide 12V / 24V DC input compatibility
• Regulated 56V DC output
• Maximum output power of up to 280W
• Maximum output current of 5A
• Suitable for vehicle, caravan and off-grid battery systems
• Compact aluminium housing for efficient heat dissipation
• Hard-wired installation for a clean and permanent electrical system

Efficient Direct DC Power

Rather than converting battery power from DC to AC through an inverter and then back to DC using the Starlink power supply, this converter delivers the required voltage directly from your vehicle's battery system. This significantly reduces conversion losses and improves the overall efficiency of your electrical system.

Direct DC conversion also reduces unnecessary inverter standby consumption, helping extend battery runtime during off-grid operation. Manufacturer information states that bypassing an inverter can reduce energy consumption by approximately 25–35% compared with conventional inverter-powered installations. :contentReference[oaicite:0]{index=0}

Stable, Regulated Output

The converter provides a regulated 56V DC output designed to deliver consistent power to compatible Starlink Gen 3 equipment, even when vehicle battery voltage varies during charging or discharge.

Integrated filtering capacitors help minimise voltage ripple while built-in protection circuitry assists with reliable operation in demanding mobile environments. :contentReference[oaicite:1]{index=1}

Applications

• Starlink Gen 3 vehicle installations
• Touring and expedition vehicles
• 4WD touring builds
• Remote work vehicles
• Caravans
• Motorhomes
• Canopies and service bodies
• Permanent off-grid Starlink installations
• Mobile communications systems

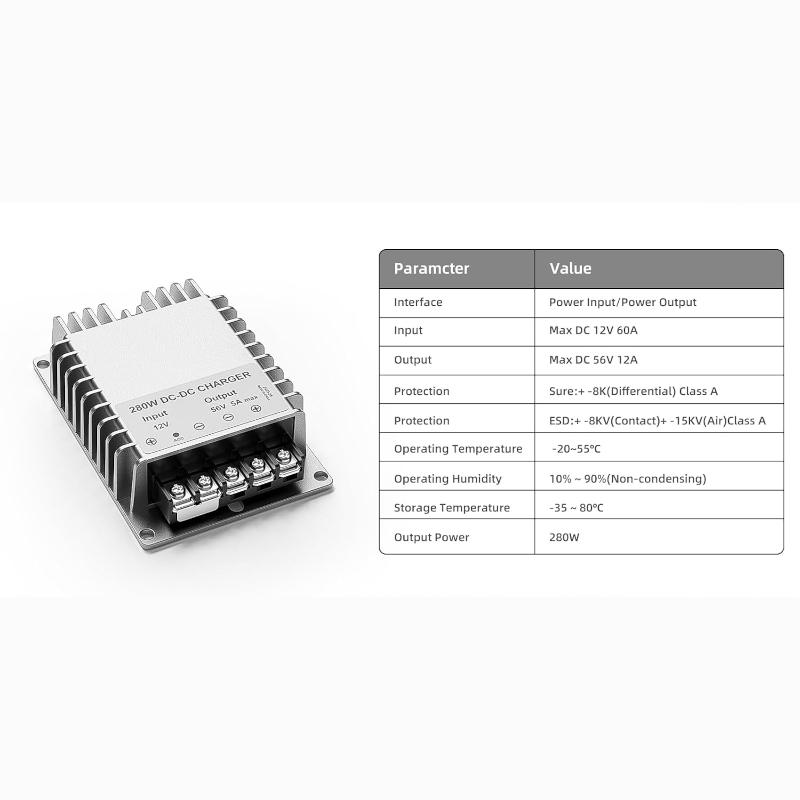

Electrical Specifications

• Input voltage: 10–32V DC
• Output voltage: 56V DC
• Maximum output current: 5A
• Maximum output power: 280W
• High-efficiency DC-DC boost conversion

Installation

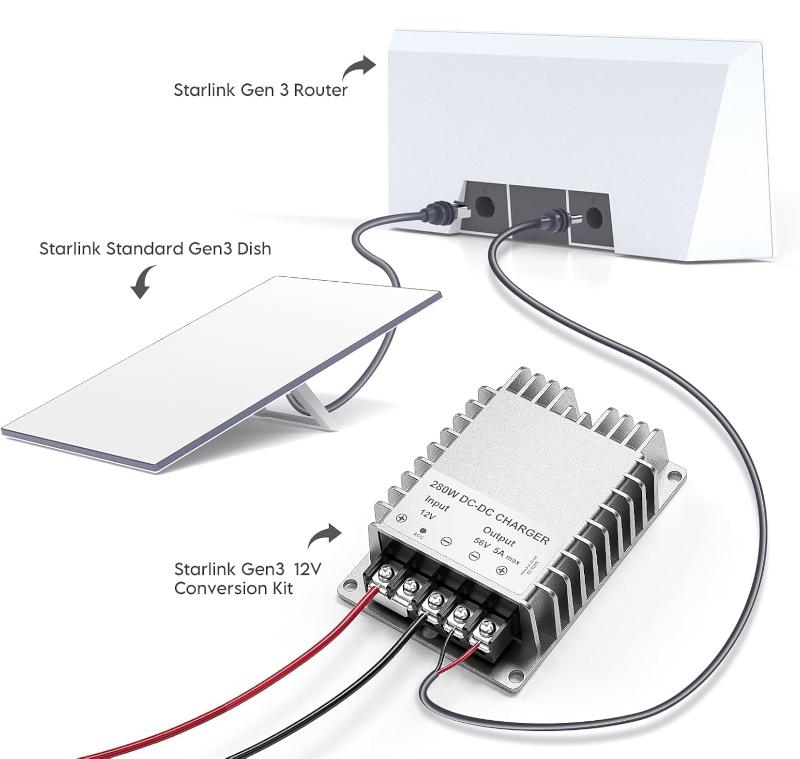

The converter is intended for permanent hard-wired installation into a 12V or 24V vehicle electrical system. Its compact size makes it easy to integrate into battery management systems, electrical cabinets and custom power distribution panels.

For reliable operation, adequate cable sizing and appropriate circuit protection should always be used.

• Designed for hard-wired installation
• Install suitable fuse protection in accordance with system design
• Ensure cable sizing matches the expected current draw
• Professional installation is recommended for optimum reliability

Benefits

• Eliminates the need for a 240V inverter to power Starlink Gen 3
• Reduces inverter losses and standby power consumption
• Improves battery runtime during off-grid operation
• Provides clean, regulated 56V DC power
• Compact design simplifies installation
• Suitable for both 12V and 24V electrical systems

If you're installing Starlink Gen 3 into a vehicle or off-grid power system, this DC-DC converter provides a simple, efficient and reliable method of delivering the correct operating voltage directly from your battery bank—without the complexity and energy losses of running an inverter.
